ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
Screw back rest 7 to main frame 6 using allen
key C and spanner B provided.
Pull up and unscrew dial on leg frame 1.
Lift up frame and slide onto main frame 6.
Once you are happy with the position secure
in place with Large Dial 12.
Slide the EVA Foam Leg pads 2 onto metal
tubes of leg frame 1.
Attach Hand cycle support frame 4 using the
attached bolt, secure using allen key C and
spanner B.
Fix into desired position with locking pin 10.
Wrap resistance bands round the cam on
the Leg frame 1 and attach onto one of the
three Clips. This will provide resistance when
performing leg extensions. There are three
different clips to attach to, the higher clip
used the more resistance there will be.

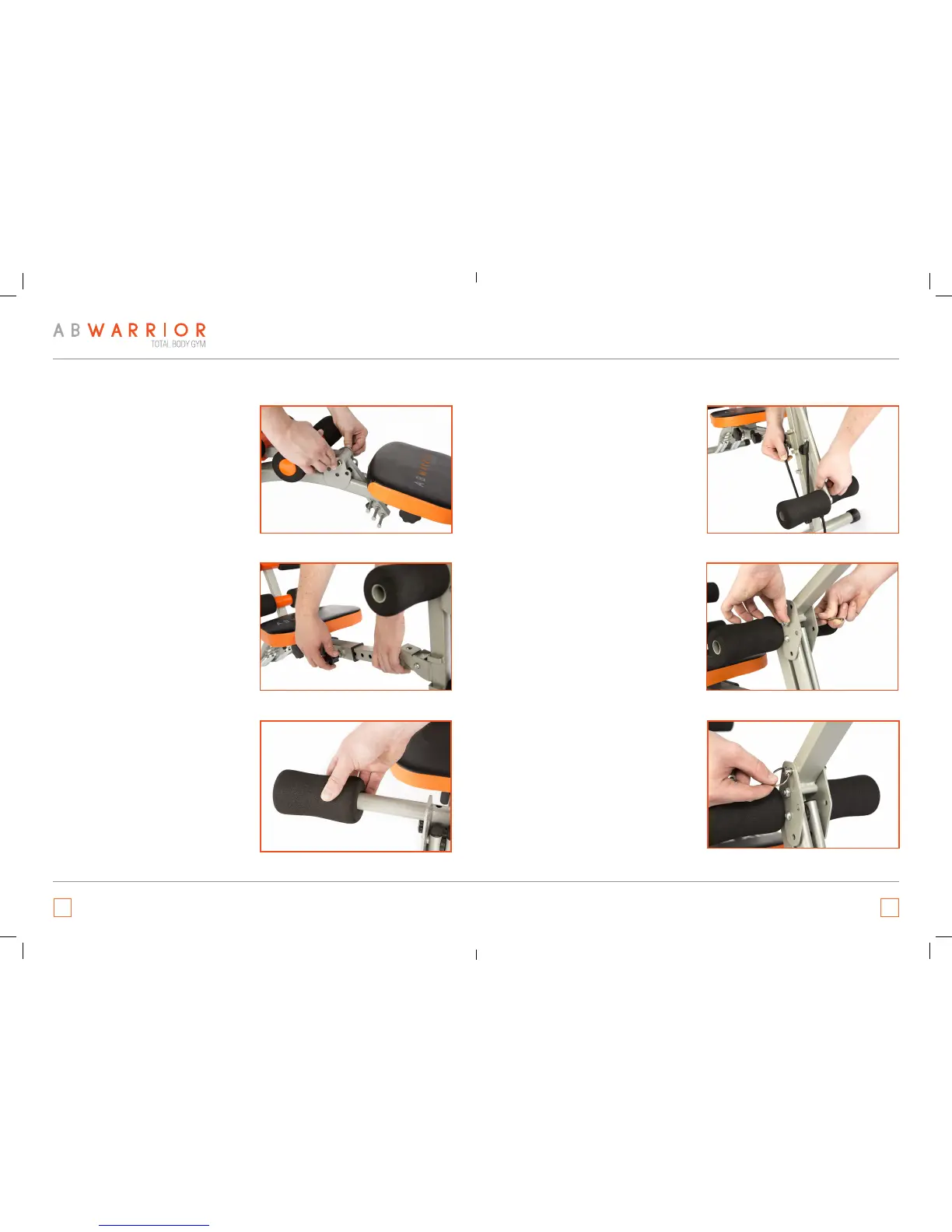

1. 4.
2. 5.
3. 6.
