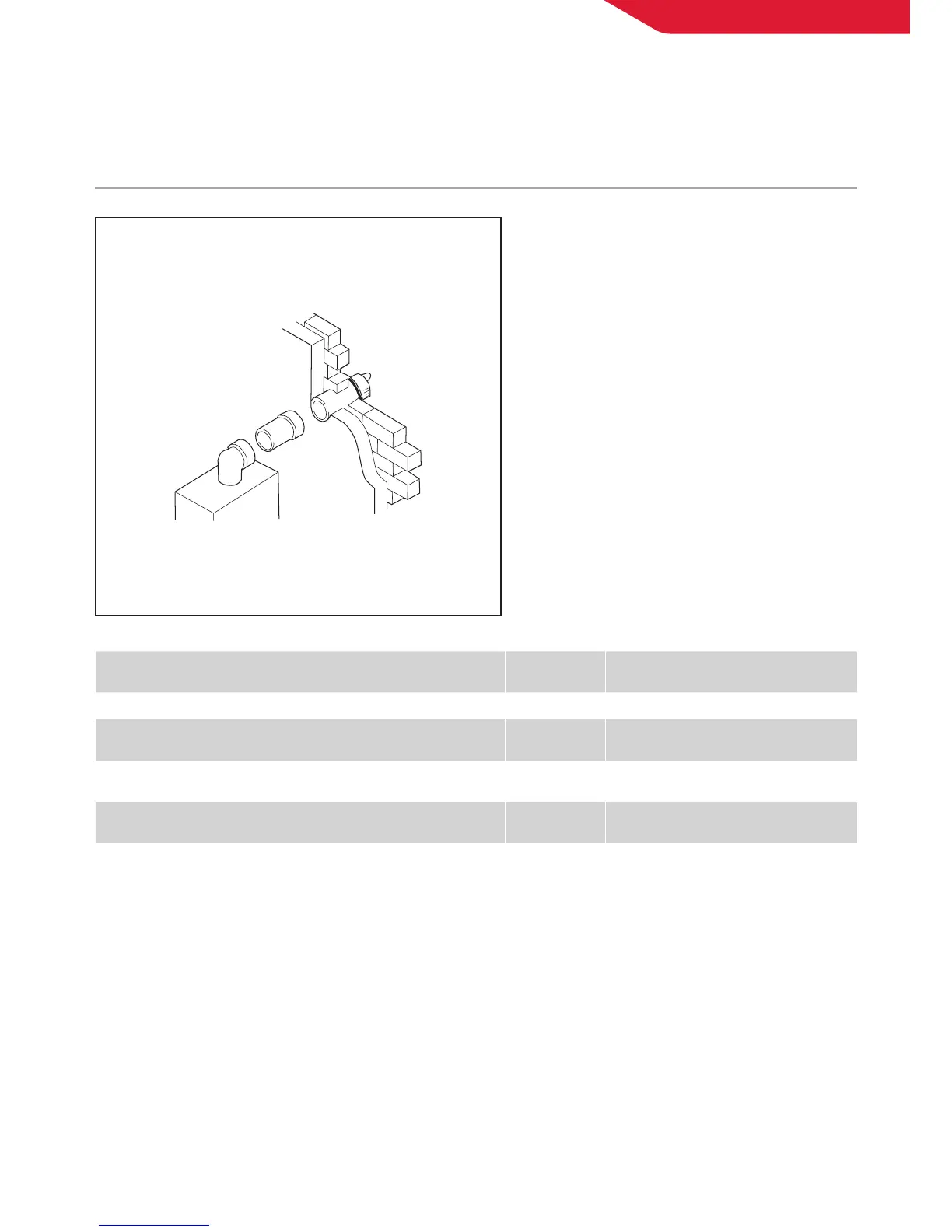

FLUEING OPTIONS
LOGIC CODE COMBI ES.
HORIZONTAL
CONCENTRIC
100MM DIAMETER.
NOTE:
Lengths are from outside edge of turret to
outside wall face.
Where extension D Packs are cut to length,
flared end connector must be retained.
FLUE IDEAL
PART NO.
MAXIMUM STRAIGHT
FLUE LENGTH (MM)
Horizontal flue terminal (0.6m long) 208171 556
Horizontal flue terminal (0.6m long)
+ 6 x Flue extension 1m (pack D)
208171
6 x 203129
6256 (38 max length 6m)
Horizontal flue terminal (0.6m long)
+ 8 x Flue extension 1m (pack D)
208171
8 x 203129
8186 (33 max length 8m)
Horizontal flue terminal (0.6m long)
+ 9 x Flue extension 1m (pack D)
208171
9 x 203129
9000 (26 models)
