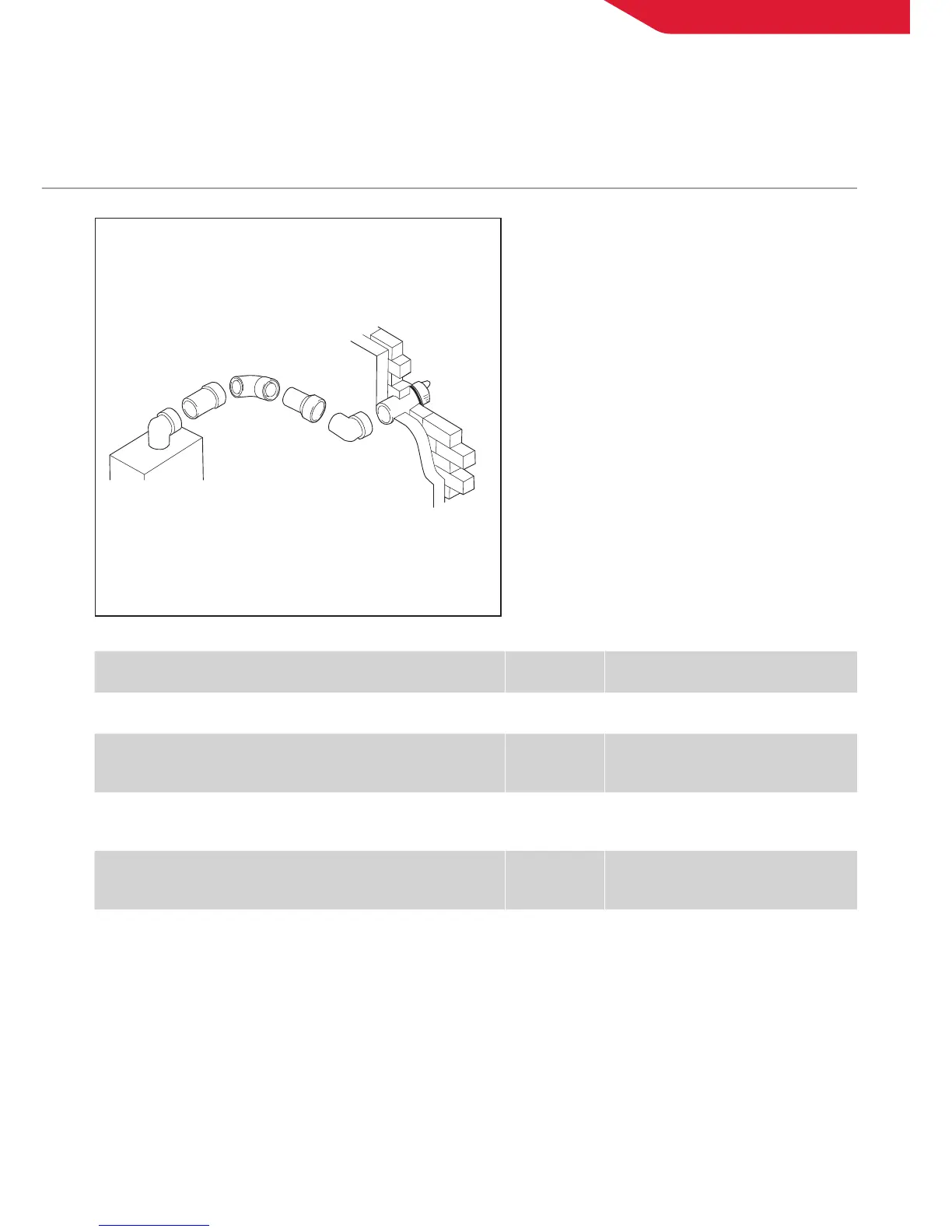

IDEAL COMBI ESP 24 User Manual

HORIZONTAL
FLUE WITH
2 X 90° ELBOW.
NOTE:
Lengths are sum of all straight lengths
between outside edge of turret to
outside wall face.
Numbers of extension D packs give flexibility
of lengths of straight at either side of elbow.
Where extension D packs are cut to length,
flared end connector must be retained.
FLUEING OPTIONS
LOGIC CODE COMBI ES.
61
FLUE IDEAL
PART NO.
MAXIMUM STRAIGHT
FLUE LENGTH (MM)
Horizontal flue terminal (0.6m long)
+ 2 x Flue 90° elbow kit (60/100)
208171
2 x 203130
556
Horizontal flue terminal (0.6m long)
+ 4 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
4 x 203129
2 x 203130
4356 (38 max length 4m.
+ 2x 90° elbow)
Horizontal flue terminal (0.6m long)
+ 6 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
6 x 203129
2 x 203130
6286 (33 max length 6m.
+ 2x 90° elbow)
Horizontal flue terminal (0.6m long)
+ 7 x Flue extension 1m (pack D)
+ 2 x Flue 90° elbow kit (60/100)
208171
7 x 203129
2 x 203130
7000 (26 models max length 7m.
+ 2x 90° elbow)
