14
- Installation & Servicing
INSTALLATION

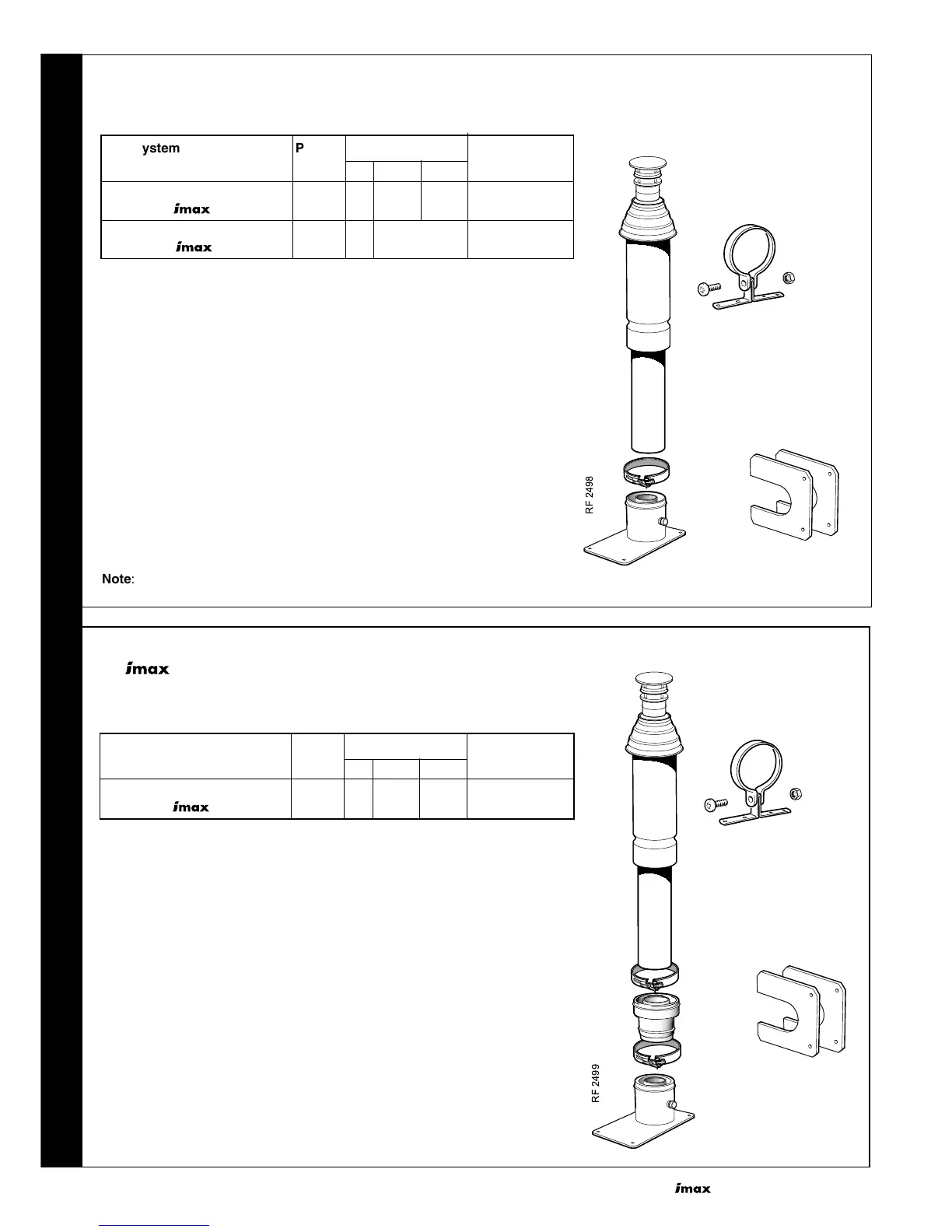

14 VERTICAL ROOF FLUE KIT
Contents
• Boiler adapter + screws (x6)
• Terminal
• Locking Collar
• Finishing plates (x2)
• Bracket
RF 2498
Note: See Frame 19 for elbow equivalent lengths.
15 VERTICAL ROOF FLUE KIT - For longer flue lengths for the
W45 and W60
Contents
• Boiler adapter + screws (x6)
• Increaser
• Terminal
• Locking Collars (x2)
• Finishing plates (x2)
• Bracket
RF 2499
Flue System Part No. Max Flue Ext.
W45 W60
Vertical roof kit 80/125 158654 m 9.5 7.8
suitable for W45 & W60 Pa 60 78
Vertical roof kit 100/150 158656 m 16
suitable for
W80 Pa 100
Achievable flue
length without
extensions
0.65
0.8
Note: See Frame 19 for elbow equivalent lengths.
Flue System Part No. Max Flue Ext.
W45 W60
Vertical roof kit 100/150 158655 m 31.6 26
suitable for
W45 & W60 Pa 79 108
Achievable flue
length without
extensions
0.9
FLUE OUTLET
