42
- Installation & Servicing
SERVICING
64

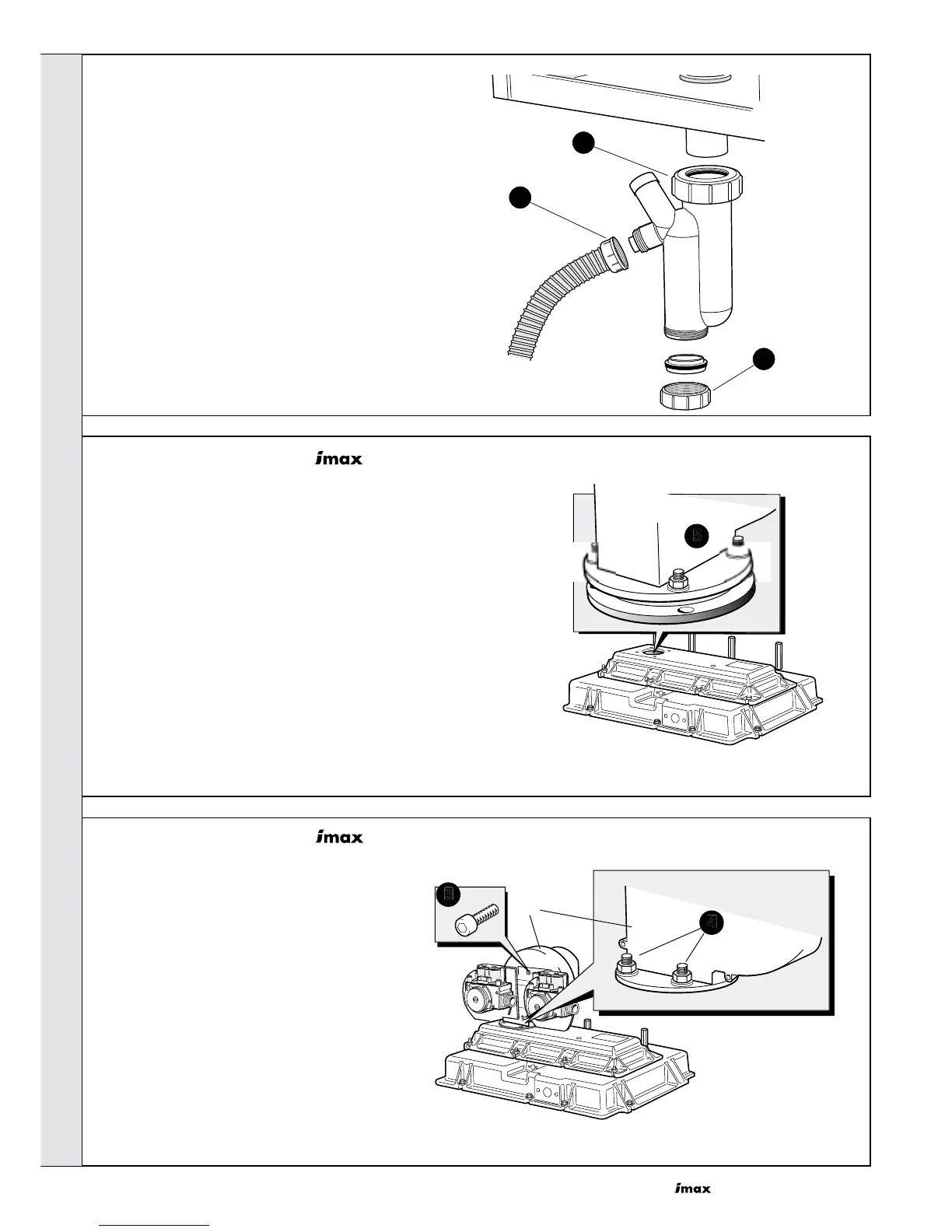

CONDENSATE TRAP
1. Unscrew the nut and disconnect the flexible pipe.
2. Unscrew the nut and remove the condensate trap.
3. Remove the nut and plug from the condensate trap
and flush out with water.
4. Reassemble in reverse order ensuring the
condensate trap is full of water before firing.
5. Check the operation of the appliance. Refer to
Frame 55.
ima5568
1
3
2
Refer to Frame 55, then:
1. Remove the jacket front panel. Refer to Frame 57.
2. Disconnect the electrical connections from the gas valve.
3. Disconnect the electrical connections from the fan.
4. Undo the gas valve nut and retain the fibre washer.
5. Remove the four nuts securing the fan to the burner hood
and lift out of the boiler.
6. Remove the 2 screws securing the venturi to the fan inlet.
7. Replace the fan using the new gaskets and fibre washer
as supplied.
8. Re-assemble in reverse order.
9. Check the operation of the boiler. Refer to Frame 55.
65
FAN REPLACEMENT - W45, W60, W45P AND W60P
66
FAN REPLACEMENT - W80/W80P
Refer to Frame 55, then:
1. Remove the jacket front panel. Refer to Frame 57.
2. Remove fan, burner and gas valve assembly.
Refer to Frame 60.
3. Remove the four screws securing the gas manifold
to the fan.
4. Remove the four nuts securing the fan to the burner
hood.
5. Replace the fan with the new gaskets and fibre
washers as supplied.
6. Reassemble in reverse order.
7. Check the operation of the boiler. Refer to Frame
55.
