IDEAL imax W80P User Manual

24
- Installation & Servicing
INSTALLATION

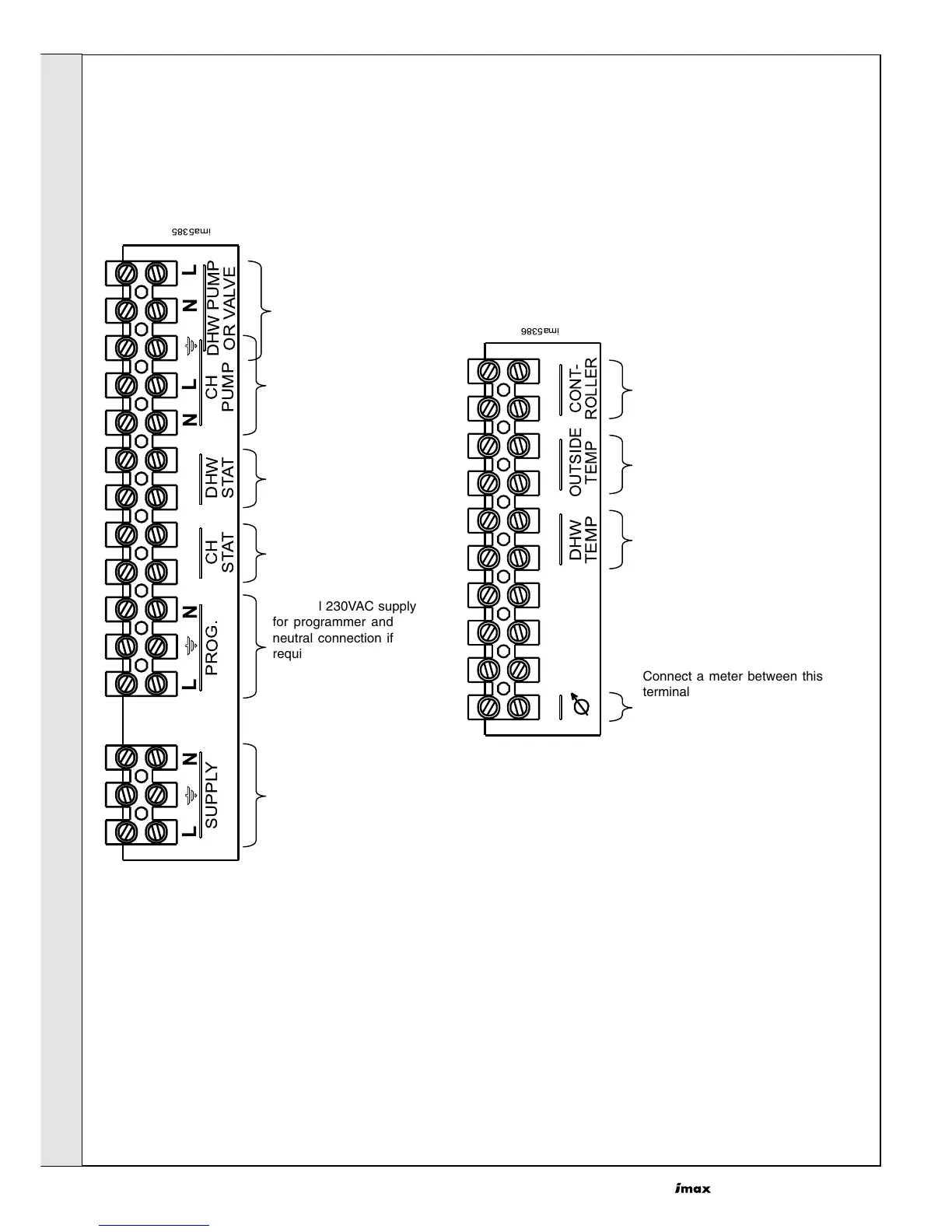

33 INSTALLER CONNECTIONS
DHW
TEMP
OUTSIDE
TEMP
CONT-
ROLLER
ima5386
Connect a meter between this
terminal and earth to
measure 0-10VDC = 0-10
Micro amp flame ionisation
current.
Optional connections for
DHW tank sensor kit.
Optional connections for
outside temperature sensor
kit.
Optional connections for
programmable room thermostat
and modulating sequencer kits
L
SUPPLY
N
L
PROG. DHW
STAT
CH
PUMP
DHW PUMP
OR VALVE
CH
STAT
N
L
N
L
N
ima5385
230VAC permanent
mains supply.
Optional 230VAC supply
for programmer and
neutral connection if
required for
compensated room
thermostat.
Optional connections for
230VAC room
thermostat.
Optional connections for
230VAC DHW cylinder
thermostat.
230VAC output for central
heating system pump.
max 1 amp.
Optional 230VAC output
for DHW pump or divertor
valve. max 1 amp.
INSTALLATION
