IDEAL INDEPENDENT C30 Installation And Servicing

15
INSTALLATION
Independent + Combi - Installation and Servicing
8 FRONT PANEL REMOVAL
1. Loosen the 2 screws retaining the front panel.
2. Pull the two spring clips downwards to disengage.
3. Pull the front panel forward and upwards to remove.
1
2

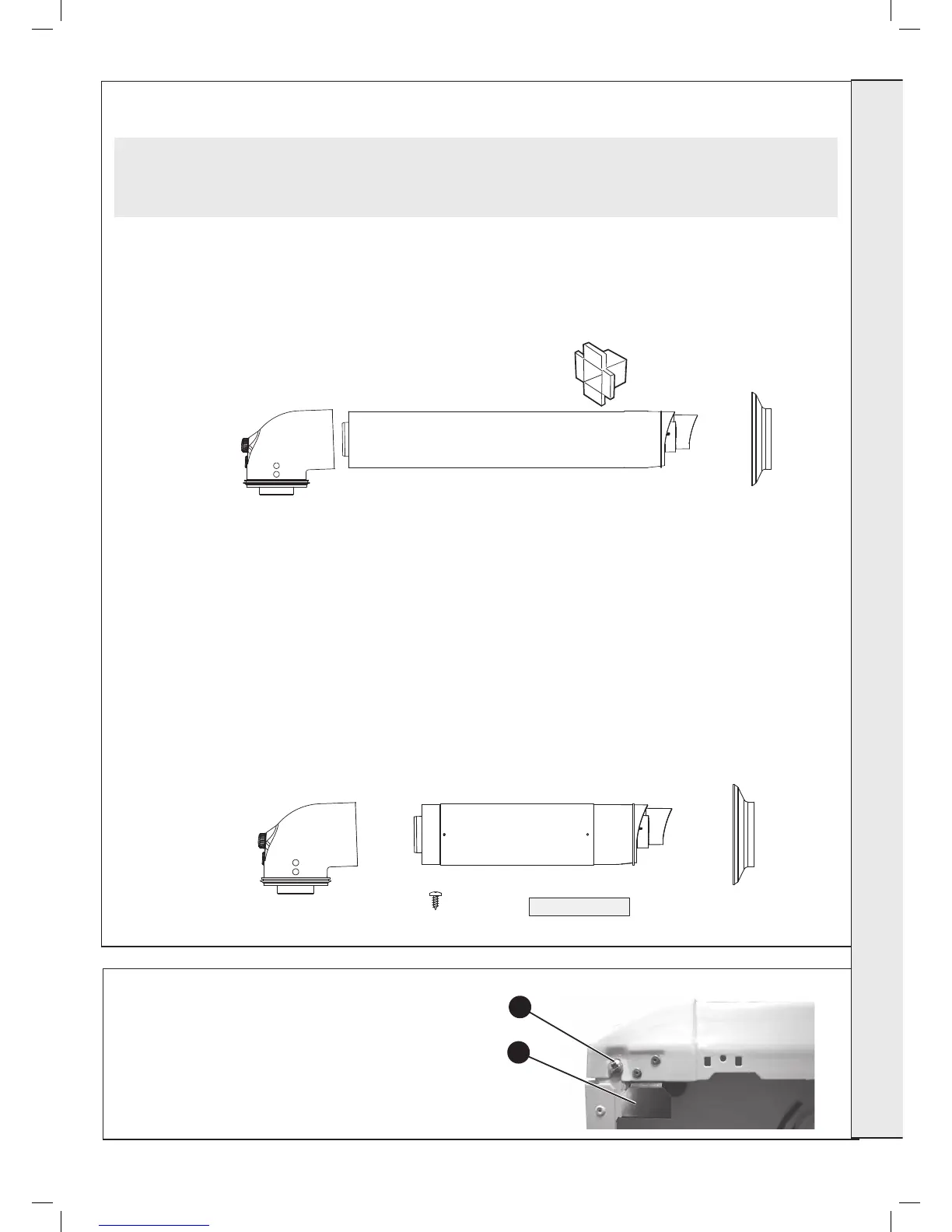

Pack B Contents Telescopic
A Telescopic Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal
D Screw
E Sealing Tape
D
C
A
E
B
Pack B Contents Non-Telescopic
A Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal
D Cutting Aid
Note. This ue system incorporates a removable ue outlet nose that utilises a push t location system. This enables the
installation of deector, high level or balcony outlet ue kits without the removal of the whole ‘B’ pack terminal. The appliance
must not be operated without the desired outlet nose correctly tted in place.
Note. Location dimples must be aligned with terminal mounting frame.
A
D
B
C
7 UNPACKING CONT’D
INSTALLATION

IDEAL INDEPENDENT C30 Specifications

General

Model	IDEAL INDEPENDENT C30
Category	Boiler
Type	Combi
Output	30 kW
Mounting	Wall Mounted
ERP Rating	A
CH Output (kW)	24.2 kW
Flow Rate (l/min)	12.4 l/min
Fuel	Natural Gas
Condensing	Yes
Fuel Type	Natural Gas
Dimensions (H x W x D)	700mm x 395mm x 278mm
DHW Output (kW)	30 kW
Efficiency (%)	89.6
Standard Warranty (Years)	2 Years
