SERVICING
Independent + Combi - Installation and Servicing
Note. Fit the earth strap provided with the PCB to your
wrist and a suitable earth on the boiler chassis.
1. Refer to Frame 40.
2. Remove the main PCB, refer to Frame 56.
3. Unclip the PCB and lift to clear the mounting posts.
4. Fit the new PCB ensuring the 4 potentiometer
spindles line up with the control knobs which must
be in a vertical position.
5. Reassemble in reverse order.
6. Check operation of the boiler. Refer to Frames 29 &
30.

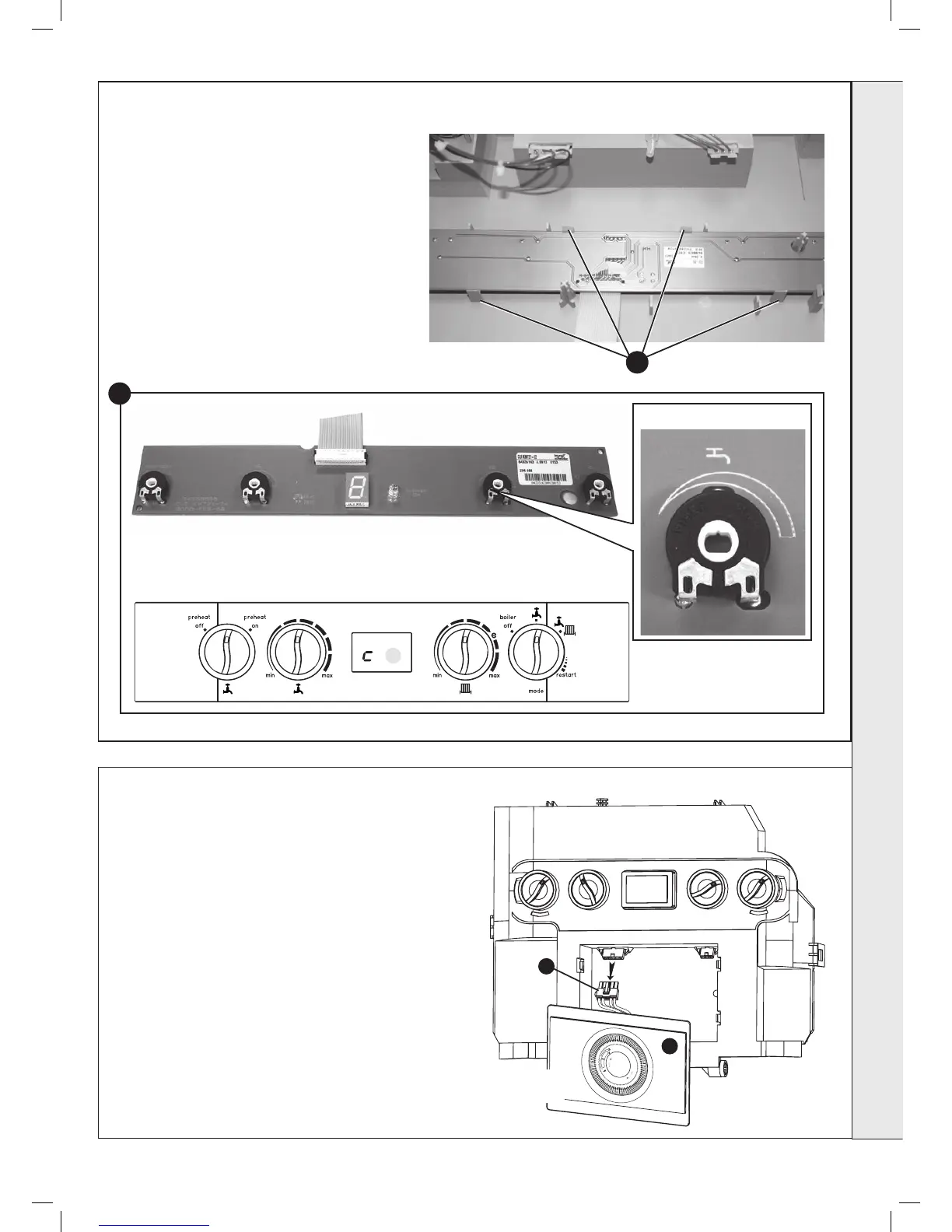

52 USER CONTROL PCB REPLACEMENT
3
Potentiometer spindle
Control Knobs (to be in vertical position)
PCB
4
1. Refer to Frame 40.
2. Remove the boiler front panel. Refer to Frame 34.
3. Pull out the plate with timer attached.
4. Disconnect 5 way connector.
5. Remove programmer and t new programmer
6. Re-t 5 way connector.
7. Push t mechanical timer into housing
8. Replace the front panel ensuring a good seal is
made.
9. Check operation of the boiler. Refer to Frames 29 &
30.
Note. To program refer to user guide at rear of this book.
53 REPLACING THE MECHANICAL TIMER
3G9985
4
1
2
3
4
5
6
7
8
9
10
1
1
12
13
14
15
16
17
18
19
20
21
22
23
24
GRASSLIN
Mechanical
Programmer
3
SERVICING

IDEAL INDEPENDENT C30 Specifications

General

Model	IDEAL INDEPENDENT C30
Category	Boiler
Type	Combi
Output	30 kW
Mounting	Wall Mounted
ERP Rating	A
CH Output (kW)	24.2 kW
Flow Rate (l/min)	12.4 l/min
Fuel	Natural Gas
Condensing	Yes
Fuel Type	Natural Gas
Dimensions (H x W x D)	700mm x 395mm x 278mm
DHW Output (kW)	30 kW
Efficiency (%)	89.6
Standard Warranty (Years)	2 Years
