INSTALLATION
isar - Installation and Servicing

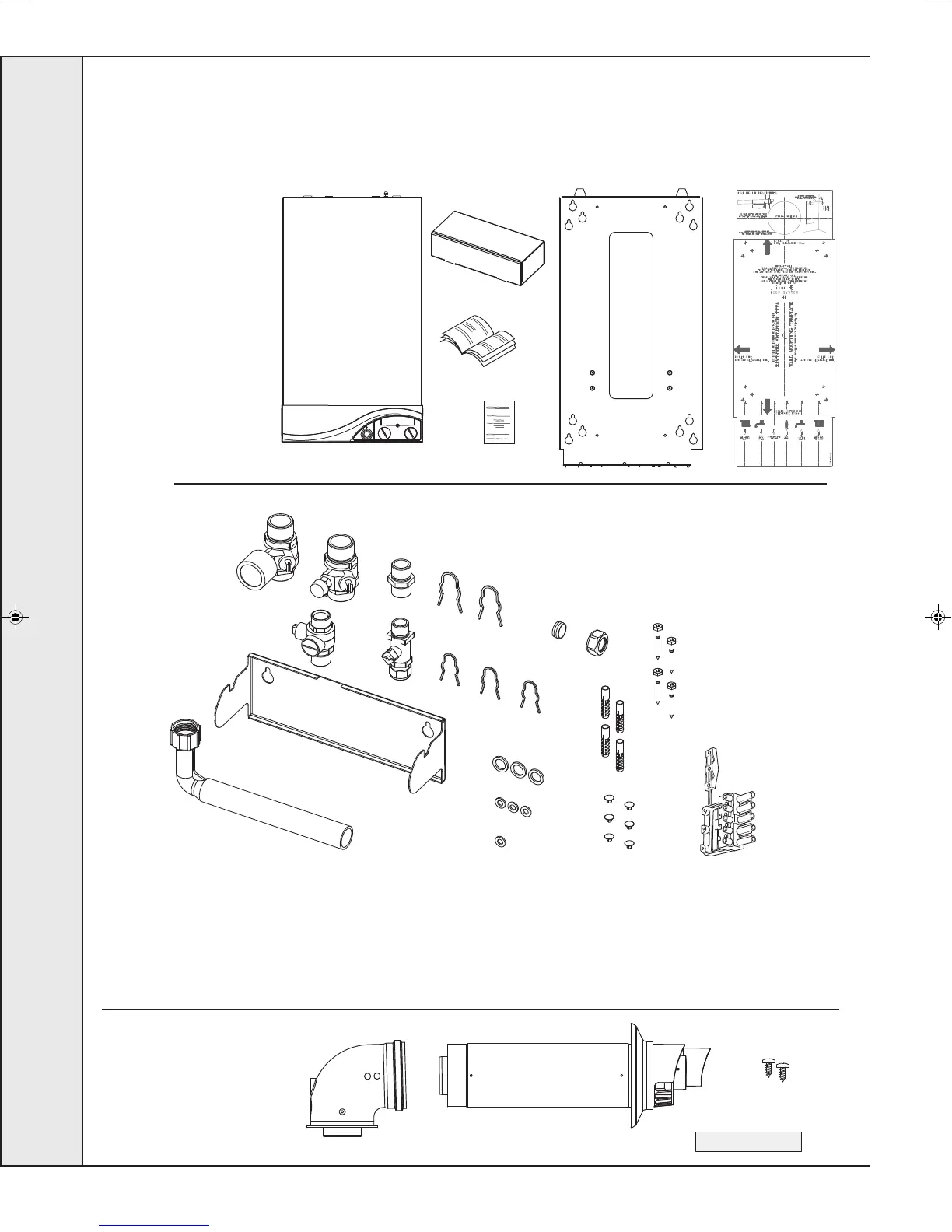

9 UNPACKING
The boiler is supplied fully assembled in one Pack A, together with a telescopic flue
assembly for lengths up to 595mm, rear or side flue outlet, in Pack B.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
C Pre-piping Frame
D These Installation/Users
Instructions
E Wall Mounting Template
(located on internal
protective packaging)
F 1 Year Guarantee
Pack B Contents
A Telescopic flue terminal
B Flue turret
C Screws
D Sealing tape
B
C
A
D
F
nm8452
A
B
C
D
E
F
G
H
I
J
K
L
R
M
N
O
P
Q
Hardware Pack Contents
A Isolation valve c/w pressure gauge - 1 off
B Isolation valve c/w drain - 1 off
C Bulkhead connector - 1 off
D Restrictor valve - 1 off
E Compression gas cock - 1 off
F Valve securing clip 22mm - 2 off
G Valve securing clip 15mm - 3 off
H Pre-piping frame support bracket - 1 off
I S-trap hose - 1 off
J 15mm olive - 1 off
K Pressure relief valve nut - 1 off
L No. 14x2in woodscrew - 4 off
M Wallplug - 4 off
N Fibre washer 19 ID x 26 OD - 3 off
O 12mm sealing washer - 3 off
P Gas line sealing washer - 1 off
Q Hole plug white - 6 off
R Mains connector - 1 off
nm8751
A
B
C
D
E
