INSTALLATION
isar - Installation and Servicing

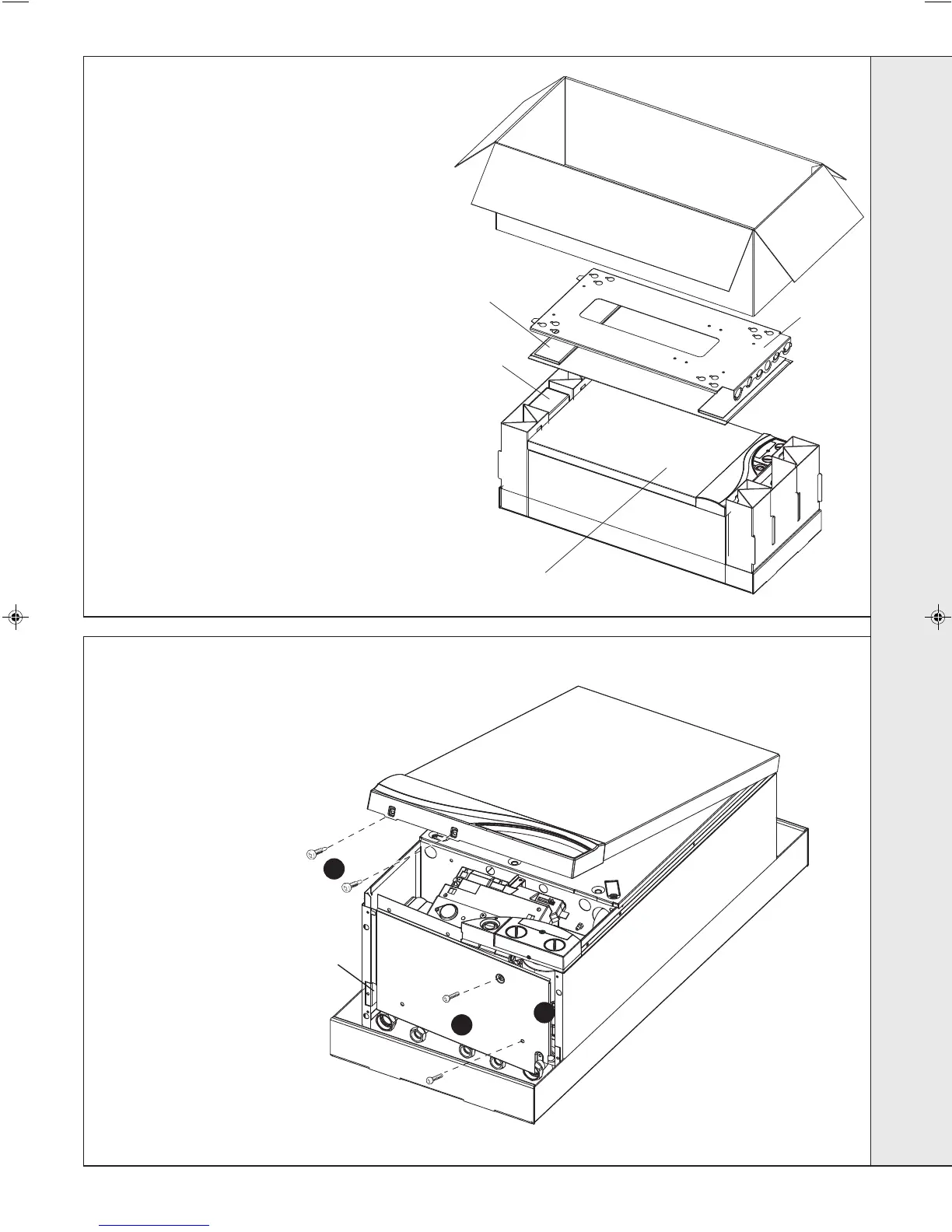

1. Ensure the boiler is on a sound flat
surface.
2. Carefully remove the strapping.
3. Fold back the top flaps to gain access to:
z Instructions
z 1 year guarantee
z Pre-piping frame
z Wall mounting template.
(located under pre-piping frame on
protective packaging).
4. Remove the instructions and read
thoroughly before unpacking the product.
5. When ready for installation lift off the
cardboard carton.
10
PACKAGING REMOVAL
11
BOTTOM AND FRONT PANEL REMOVAL
1. Remove the screws from the
underside of the boiler.
2. Pull the RHS of the panel
down, slide it to the right and
withdraw.
3. Remove the screws from
bottom of the front panel.
4. Lift panel up and off top
pegs.
Boiler
Hardware
pack box
Wall mounting template/
protective packaging
Pre-piping
frame
nm9242
Retaining
clip
2
1
3
nm9243
INSTALLATION
203319-3.pmd 27/03/2008, 08:1515
To Next Page
