16
INSTALLATION
isar - Installation and Servicing
Wall Thickness X
160 mm
160 + S = 193mm
nm8943
FLUE KITS
Pack B - supplied as standard
Pack D - optional extension kit for side flue or rear flue outlet.
Finishing Kit - Supplied as an optional extra.
Refer to 'Flue Extension Ducts'
IMPORTANT. The boiler MUST be installed in a vertical position
Dimension X - Wall thickness.
Dimension L - Wall thickness plus boiler spacing.
Dimension S - Stand-off frame depth = 33mm
12

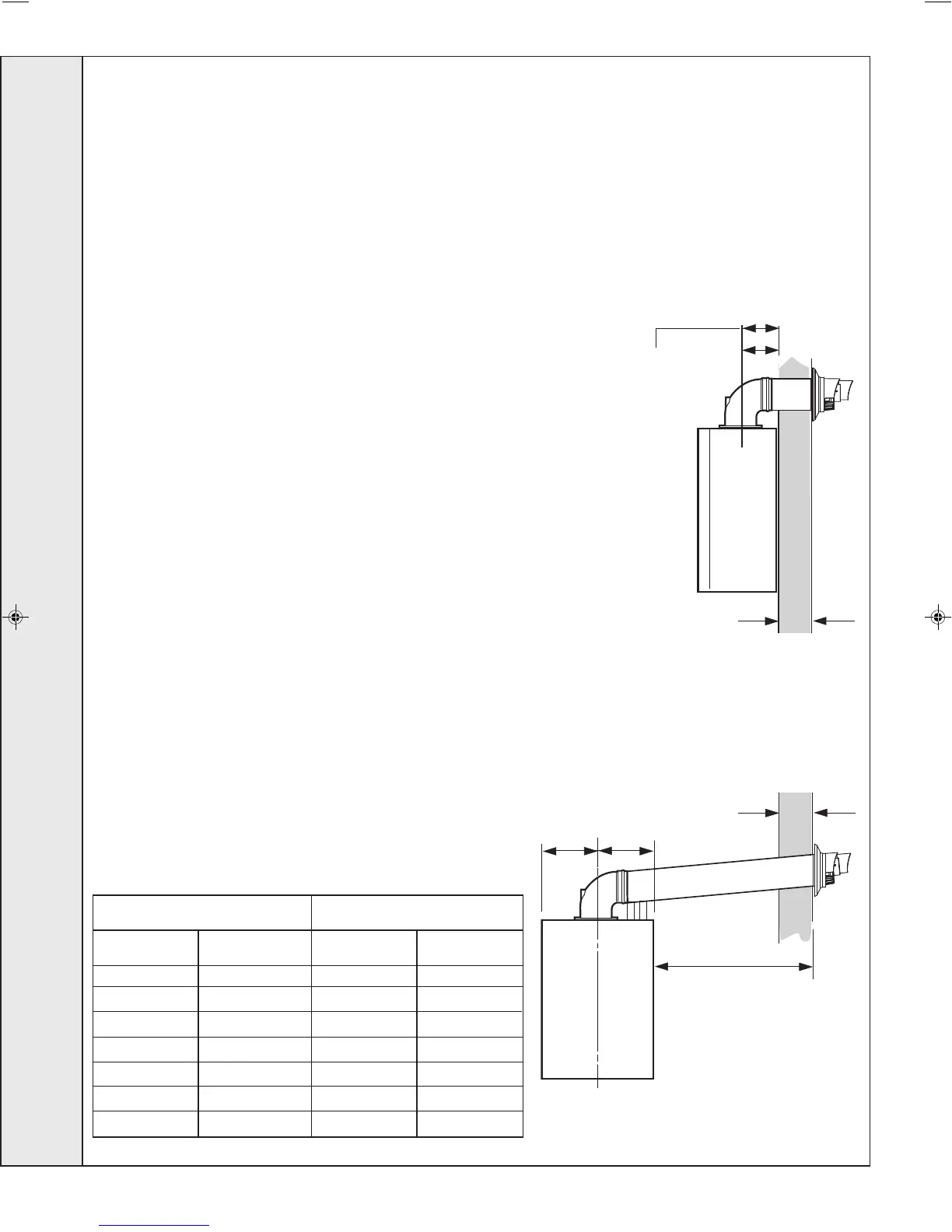

DETERMINING THE FLUE LENGTH AND FLUE PACKS REQUIRED
Notes.
1. When extension ‘D’ packs are used the flue duct MUST be
inclined at 1.5 degrees to the horizontal to allow condensate
to drain back into the boiler and out through the condensate
drain.
2. If the telescopic ‘B’ pack, or horizontal flue terminal (600 long)
only are used, they may be mounted horizontally. The 1.5
degrees is taken care of by the inclination of the flue within
the air pipe.
3. If the boiler is to be installed with upward piping routed
behind the boiler then the optional stand-off kit should be
used. Care must be taken when cutting the ducts and
marking the wall to suit this condition.
Note. MAXIMUM FLUE LENGTHS:
HE24 & 30 - 6M (HORIZONTAL FLUE)
HE35 - 3M (HORIZONTAL FLUE)
HE24, 30 & 35 - 7.5M (ROOF FLUE)
HE 24, 30 & 35 - 5M PRIMARY AND 17M SECONDARY IS A TYPICAL MAX.
FLUE LENGTH. (For alternative details refer to Powered
Vertical Instructions)
90
O
ELBOW KIT 60/100 (EQUIVALENT FLUE LENGTH RESISTANCE = 1M)
45
O
ELBOW KIT 60/100 (EQUIVALENT FLUE LENGTH RESISTANCE = 0.6M)
HE24, HE30 & HE35 - 18M TOTAL (AIR PLUS FLUE DUCT-60/60 TWIN FLUE KIT)
HE24, HE30 & HE35 - 60M TOTAL (AIR PLUS FLUE DUCT - 80/80 TWIN FLUE KIT)
MINIMUM HORIZONTAL FLUE LENGTHS - TELESCOPIC TERMINAL = 370MM
(Centre Line of turret to outside of wall terminal) - ONE PIECE TERMINAL = 285MM
Total Flue length dimension Flue
(measuring from CL of turret to outside wall)
Rear flue Side flue Extra packs Boiler
dim. X+160 dim. L+195 required Size
Up to 595 mm Up to 595 mm none HE24,30 & 35
Up to 1545 mm Up to 1545 mm Pack D - 1 off HE24,30 & 35
Up to 2495 mm Up to 2495 mm Pack D - 2 off HE24,30 & 35
Up to 3445 mm Up to 3445 mm Pack D - 3 off HE24, 30 & 35*
Up to 4395 mm Up to 4395 mm Pack D - 4 off HE24 & 30
Up to 5345 mm Up to 5345 mm Pack D - 5 off HE24 & 30
Up to 6000 mm Up to 6000 mm Pack D - 6 off HE24 & 30
*isar HE35 is capable of 3m flue only
195mm
195mm
Wall Thickness X
Side flue length L
SIDE FLUE
REAR FLUE
INSTALLATION
203319-3.pmd 27/03/2008, 08:1516
