7
RAJ-7K-H & RAJ-7K-L
Jun 2022

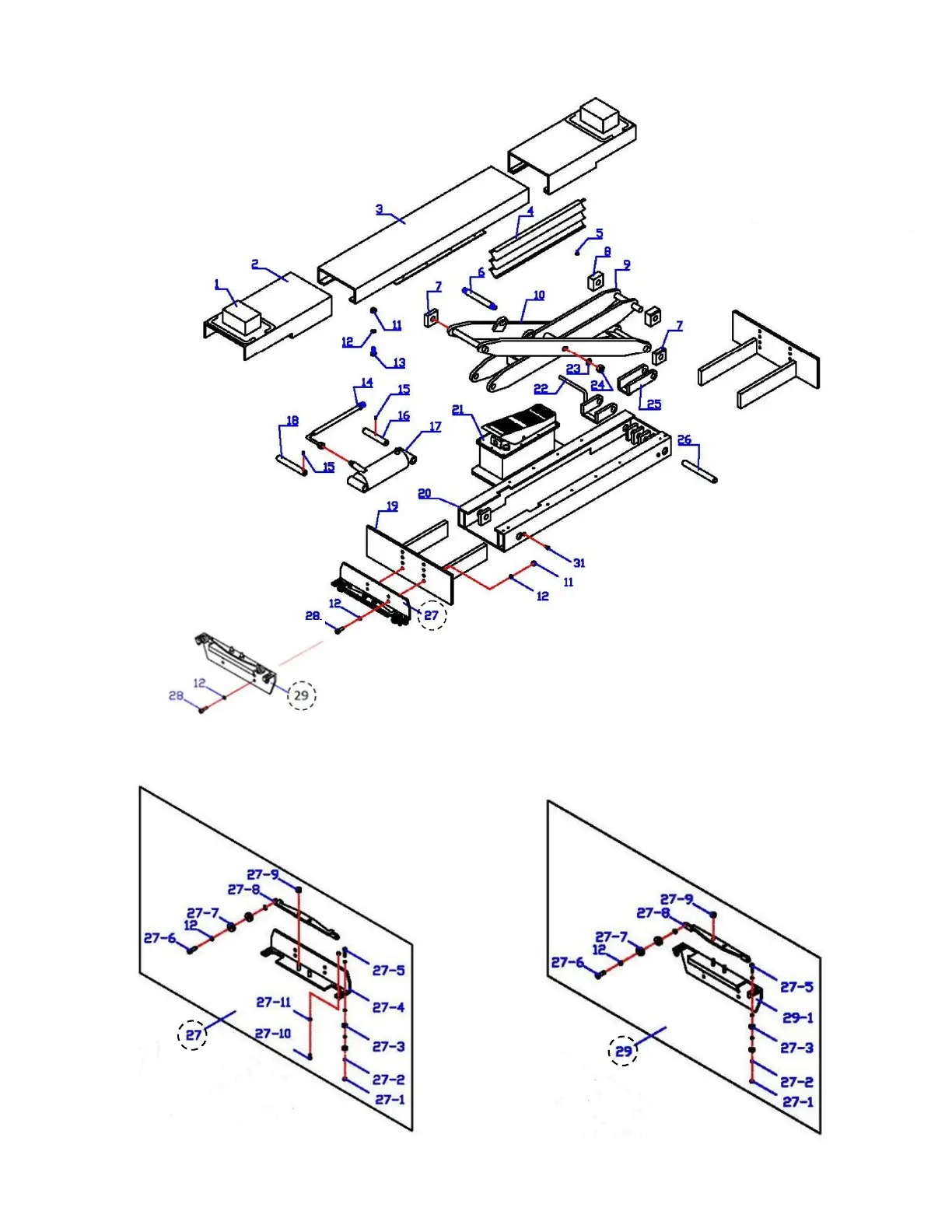

EXPLOED VIEW
RAJ
7
K
H
(High Mount #27)
Roller Body Assy.
RAJ
7
K
L
(Low Mount)
Roller Body
RAJ
7
K
H
(High Mount)
Roller Body
RAJ
7
K
L
(Low Mount #29)
Roller Body Assy.
