Request and Result Codes
Sample Program: Change Slave PI
This sample program changes the PI value of slave 1A to 3. To use the ASI command Change Slave PI, store new parame-
ter value 3 to D1943 and 1 to D1944 to designate the slave address using the MACRO instruction on WindLDR.
To designate slave 31A, set 001F to D1944. For slave 1B, set 0021.
Parameters P3 through P0 are weighted as shown in the table below. When the PI parameter is set to 3, P3 and P2 are
turned off, and P1 and P0 are turned on.
D1945 Value Low Byte Description Note
00h Initial value at power up
While D1945 lower byte stores 01h, 02h, or 08h,
do not write any value to D1945, otherwise the ASI
command is not executed correctly.
The CPU module stores all values automatically,
except for 01h.
01h Request
02h Processing ASI command
04h Completed normally
08h (Executing configuration)
14h Peripheral device failure
24h ASI command error
74h Impossible to execute
84h Execution resulting in error
Program
Command Data (Hexadecimal)
D1941 D1942 D1943 D1944 D1945
Write PI parameter “3” to slave 1A 0306 0102 0003 0001 0001
Parameter P3 P2 P1 P0
Weight 8421
ON/OFF OFF OFF ON ON
S1
10
D1
D1941
I0
SOTU
MACRO D2
D1945

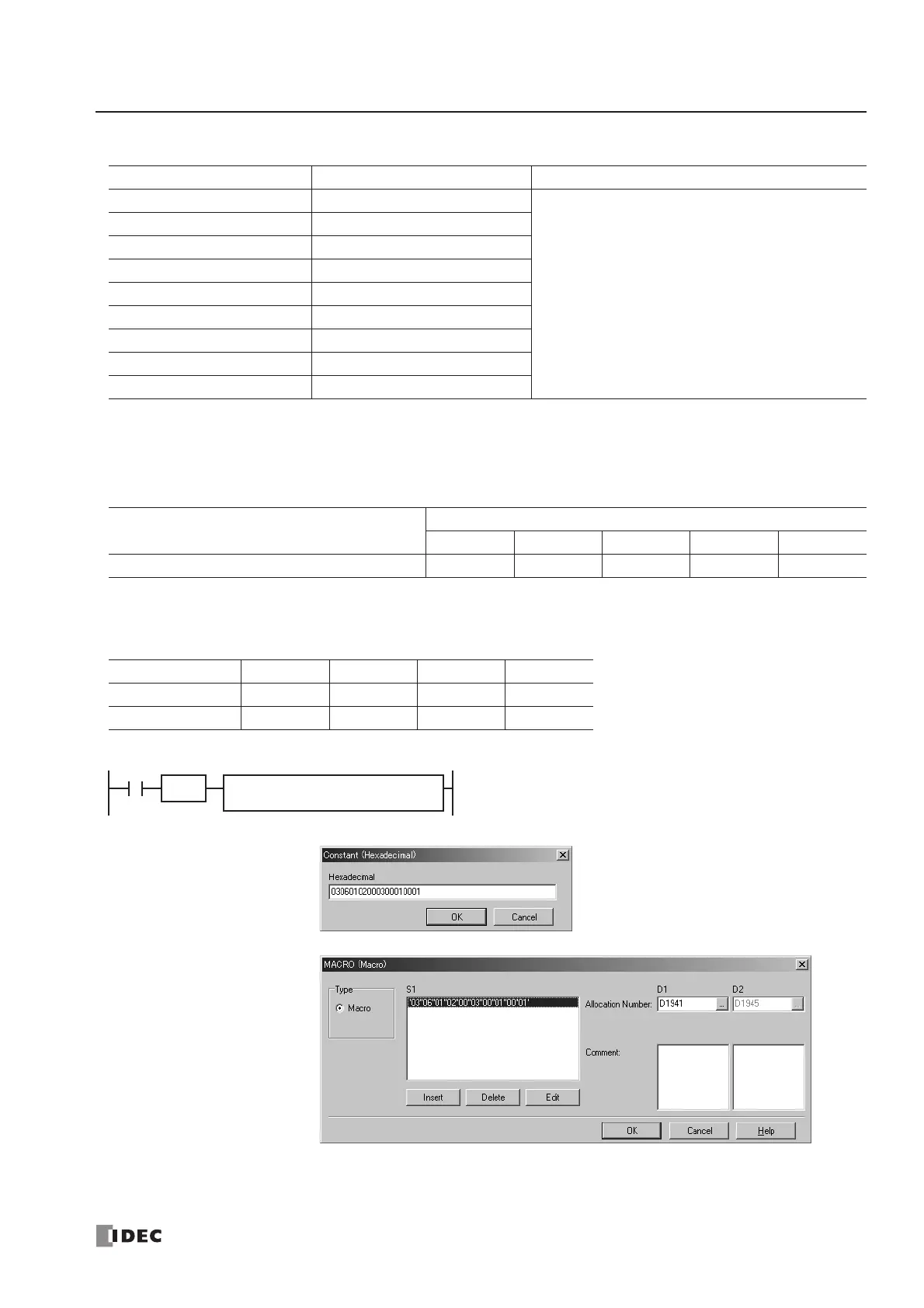

When input I0 turns on, the MACRO instruction stores hexa-
decimal values 0306, 0102, 0003, 0001, and 0001 to five data
registers D1941 through D1945.
