2: MODULE SPECIFICATIONS
« FC4A MICROSMART USER’S MANUAL » 2-59
HMI Module
The optional HMI module can mount on any all-in-one type CPU module, and also on the HMI base module mounted next
to any slim type CPU module. The HMI module makes it possible to manipulate the RAM data in the CPU module with-
out using the Online menu options in WindLDR. For details about operating the HMI module, see page 5-32. For installing
and removing the HMI module, see pages 3-3 and 3-4.

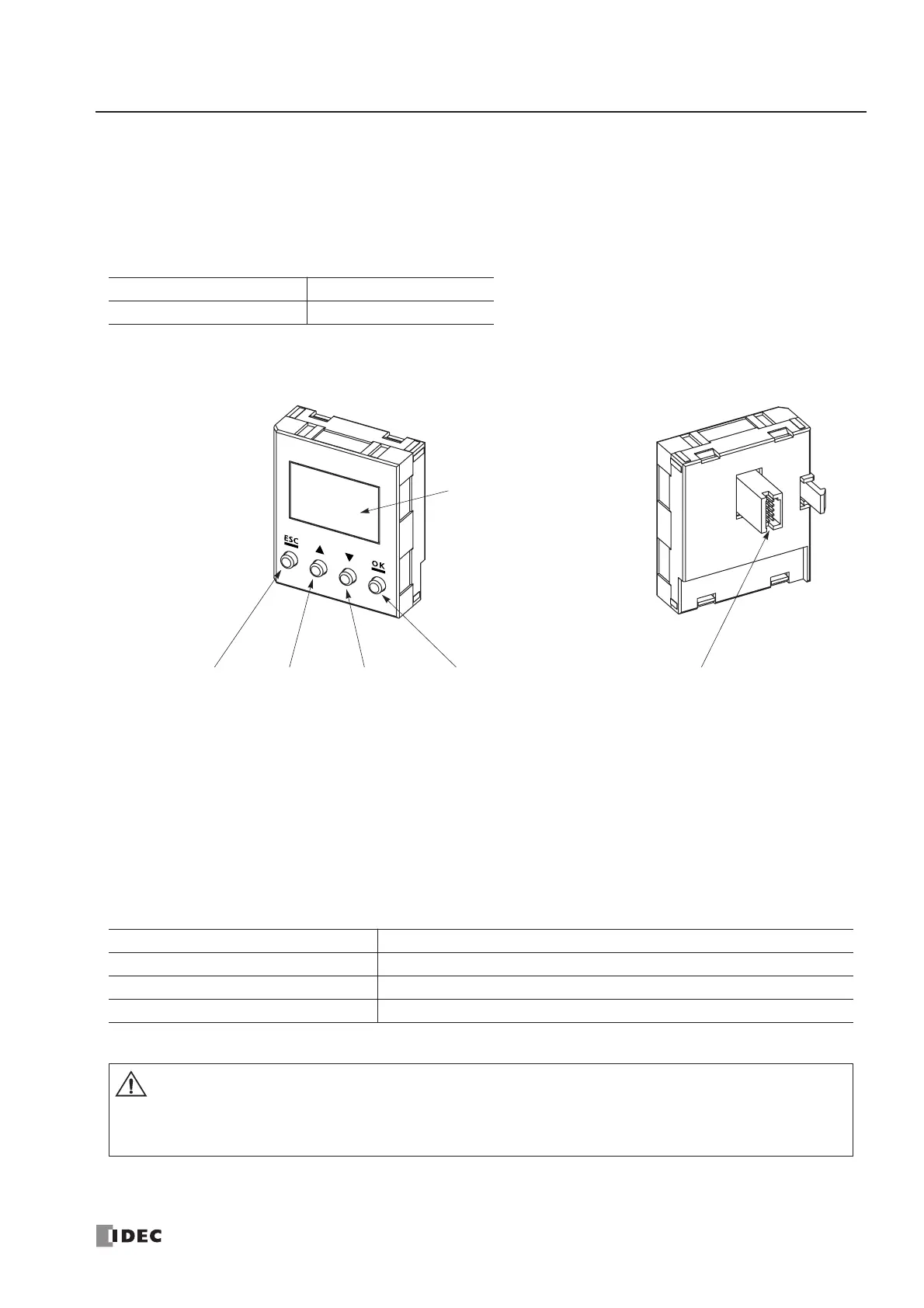

HMI Module Type Number
Parts Description
(1) Display Screen The liquid crystal display shows menus, operands, and data.
(2) ESC Button Cancels the current operation, and returns to the immediately preceding operation.
(3) ▲ Button Scrolls up the menu, or increments the selected operand number or value.
(4) ▼ Button Scrolls down the menu, or decrements the selected operand number or value.
(5) OK Button Goes into each control screen, or enters the current operation.
(6) HMI Connector Connects to the all-in-one CPU module or HMI base module.
HMI Module Specifications
Module Name Type No.
HMI Module FC4A-PH1
Type No. FC4A-PH1
Power Voltage 5V DC (supplied from the CPU module)
Internal Current Draw 200 mA DC
Weight 20g
