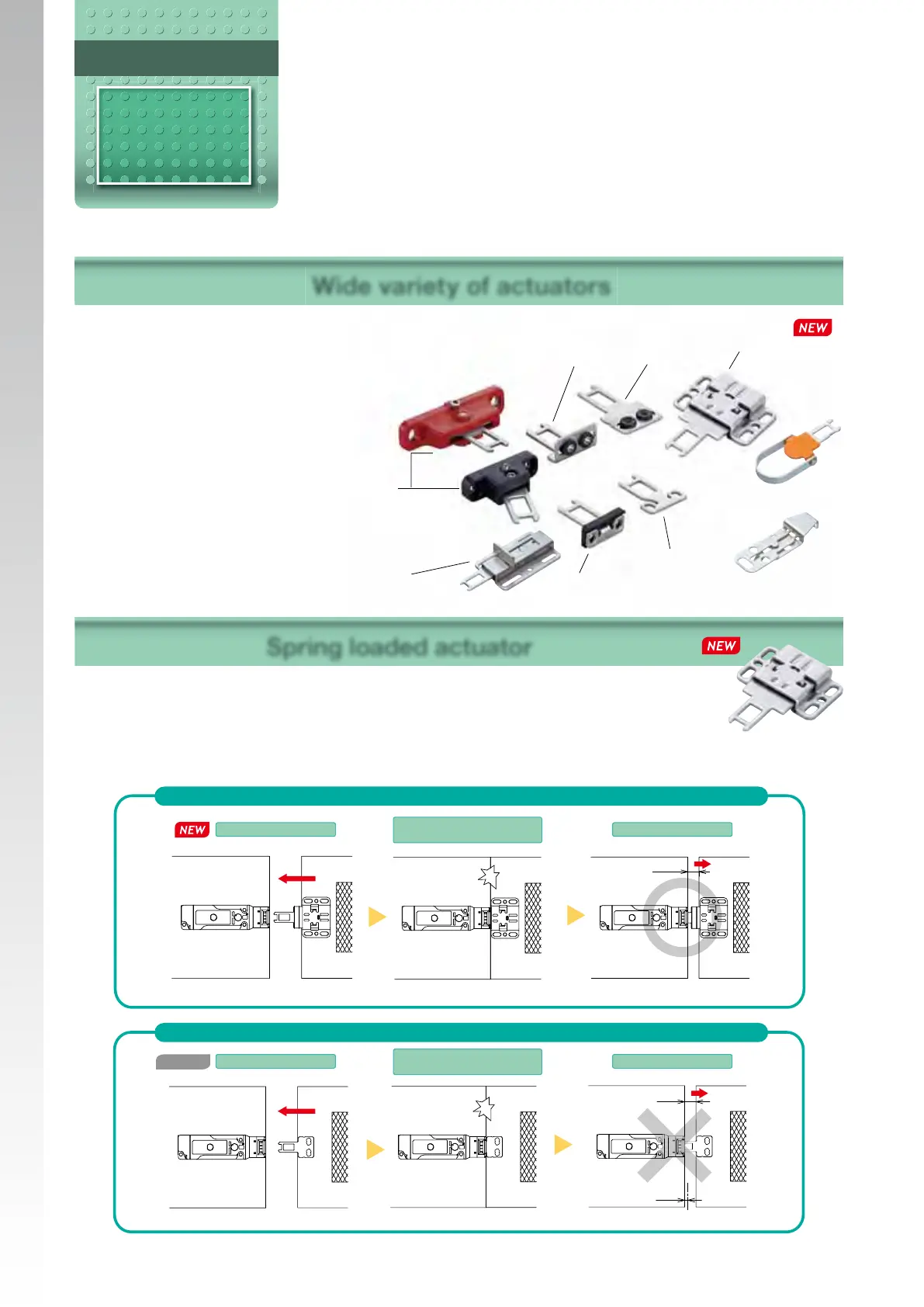

Actuators can be selected according to door shapes and usage, and
can be installed exibly according to the installation site.
Sliding Actuator
Plug Actuator
Padlock Hasp
Straight Actuator
Right-angle Actuator
Spring loaded actuator
IDEC patented spring loaded actuator locks the door safely when
the door bounces. When the actuator is fully inserted (door closed
completely), the door can tolerate a space of up to 16mm.
Patent acquired
HS5L interlock switch and HS9Z-BA5 spring loaded actuator
HS5L interlock switch and HS9Z-A51A straight actuator
∗
Accessory exclusive for HS5L.
Actuators can be selected according to door
shapes and usage.
•
Actuator with rubber bushing ideal for use
on rattling doors.
•
Plug actuators ideal for use on heavily
rattling doors.
•
Movable actuators ideal for use
on hinged doors.
•
Sliding actuators for easy installation.
•
Actuators ideal for use on bouncing doors
also available.
Lock
16
(1) Insert
Does not lock
(1) Insert
16
4.6
Conventional
model
Wide variety of actuators
Safety Switch
Right-angle Actuator
with rubber bushing
Straight Actuator
with rubber bushing
Spring Loaded
Actuator
∗
Accessory exclusive
for HS5L.
Angle Adjustable
(vertical) Actuator
HS5 series
Actuator
Wide variety of actuators for
interlock switches enhance
exibility and usability!
(2) Fully inserted
(door completely shut)
(3) Door bounces
The door can bounce open to up to 16mm.
Locking position
of HS9Z-A51A
(2) Fully inserted
(door completely shut)
(3) Door bounces
The door can bounce open to up to 4.6mm.
Locking position
of HS9Z-A51A
