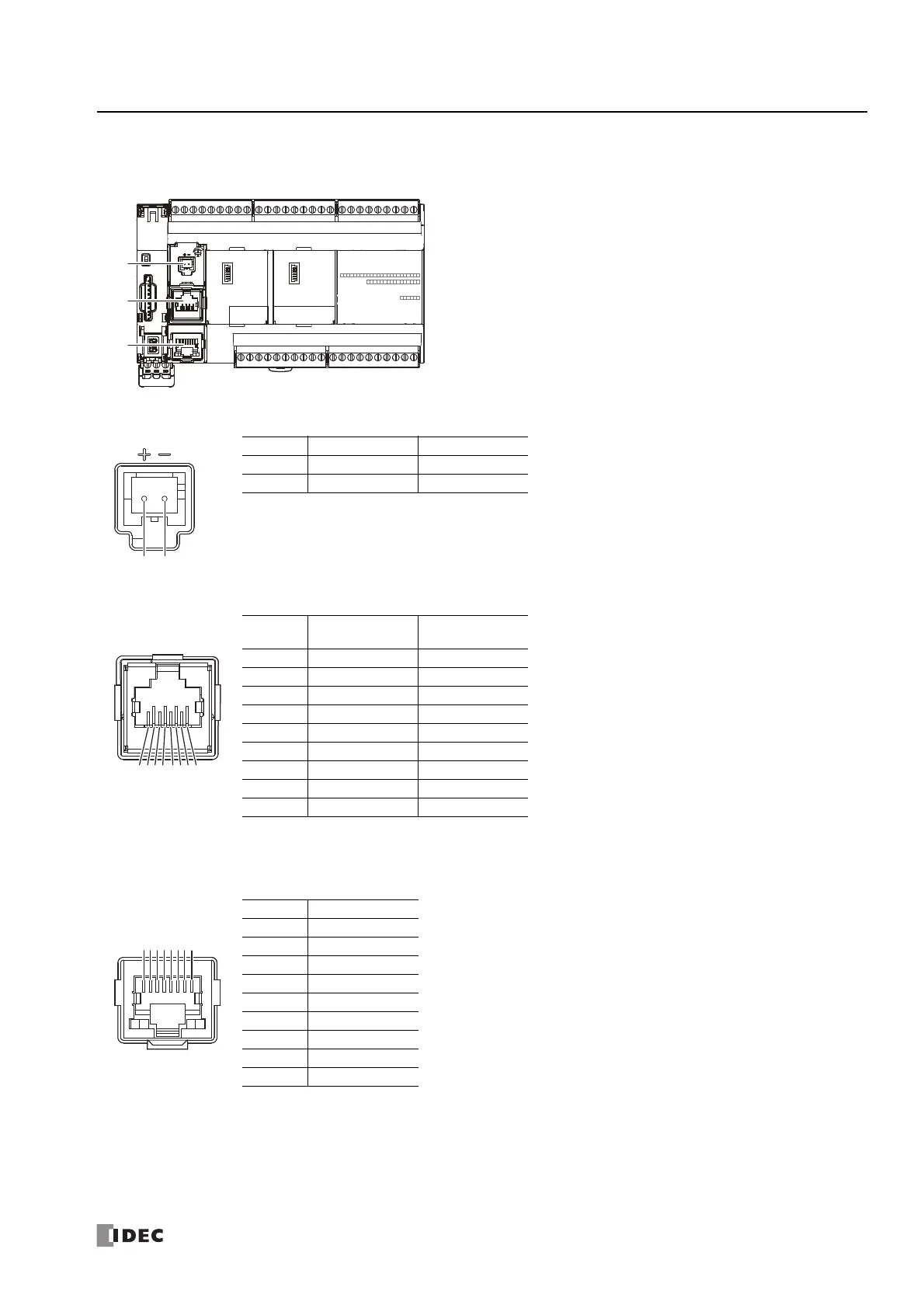

Other Inputs and Ports
■ All-in-One CPU module
(1) Analog input
(2) Serial Port 1
Note: The recommended cable to connect to this port is the FC6A-KC1C or the FC6A-KC2C. For details, see "Cables" on page A-14.
(3) Ethernet Port 1
No. Signal Wire Cable Color
1AN(+) Red
2AN(-) Black
No.
Signal Wire
(RS-232C)
Signal Wire
(RS-485)
1RD ―
2SD ―
3ER ―
4 ― A
5 ― B
6DR ―
7 ――
8SG SG
Shell
*1
Shield Shield
*1 Shell is connected to PE or FE on the power supply terminals.
No. Signal Wire
1TPO+
2TPO-
3TPI+
4 ―
5 ―
6TPI-
7 ―
8 ―
Shell
*1
Shield
*1 Shell is connected to PE or FE on the power supply terminals.
(1)
(2)
(3)
12
14325876
87654321
