IDEC MICROSmart FC6A-C24R1CE - Page 85

FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 2-49
2: P RODUCT S PECIFICATIONS
Plus CPU module

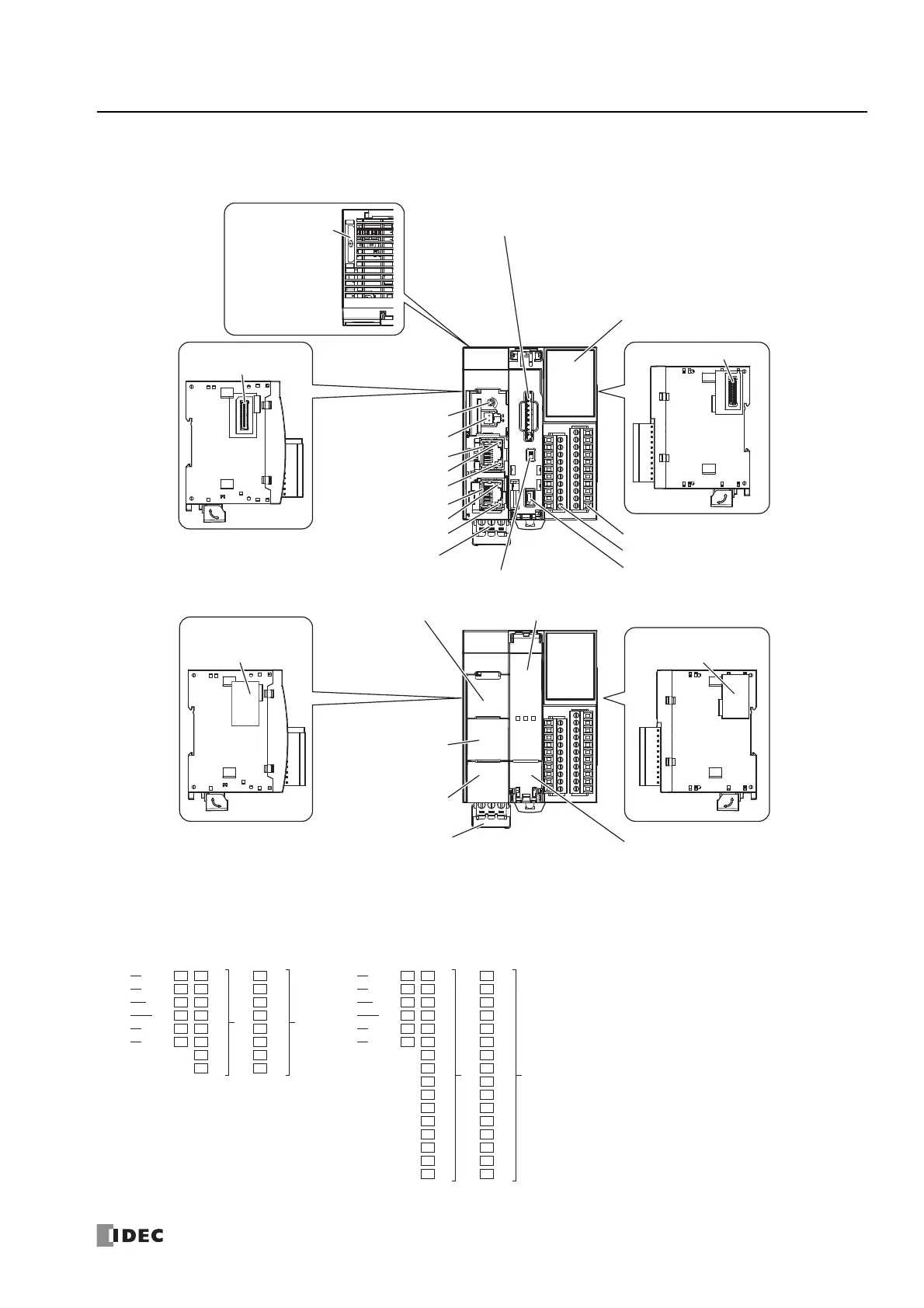

Part Names and Functions
The content in brackets is the LED indicator name on the FC6A Series MICROSmart.
LED Indicators
(25) Communication
Connector
(15) Function Switch
(23) Analog Input
(2) SD Memory Card Slot
(14) USB Port
(16) Power Supply Terminals
(19) Ethernet Port 2
(17) ACT LED
(18) LINK LED
(22) Ethernet Port 1
(20) ACT LED
(21) LINK LED
(12) Output Terminals
(13) Input Terminals
(11) Expansion Connector
(1) Battery Holder
(24) Analog Potentiometer
Top
Right Side
Left Side
(3) Power LED [PWR]
(4) Run LED [RUN]
(5) Error LED [ERR]
(6) SD Memory Card Status LED [SD]
(7) Battery Status LED [BAT]
(8) Status LED [STAT]
(9) Input LEDs [IN]
(10) Output LEDs [OUT]
(30) Power Supply
Terminals Cover
(29) USB Port Cover
(32) Ethernet Port 1
Cover
(31) Ethernet Port 2
Cover
Right SideLeft Side
(33) Communication
Connector Protection
Sticker
(28) Expansion Connector
Protection Sticker
(27) SD Memory Card Cover(26) Analog Port Cover
Example:
FC6A-D16*1CEE
0
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
IN
0
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
OUT
PWR
RUN
ERR
SD
BAT
STAT
Plus 32-I/O Type
0
1
2
3
4
5
6
7
IN
0
1
2
3
4
5
6
7
OUT
PWR
RUN
ERR
SD
BAT
STAT
Plus 16-I/O Type
