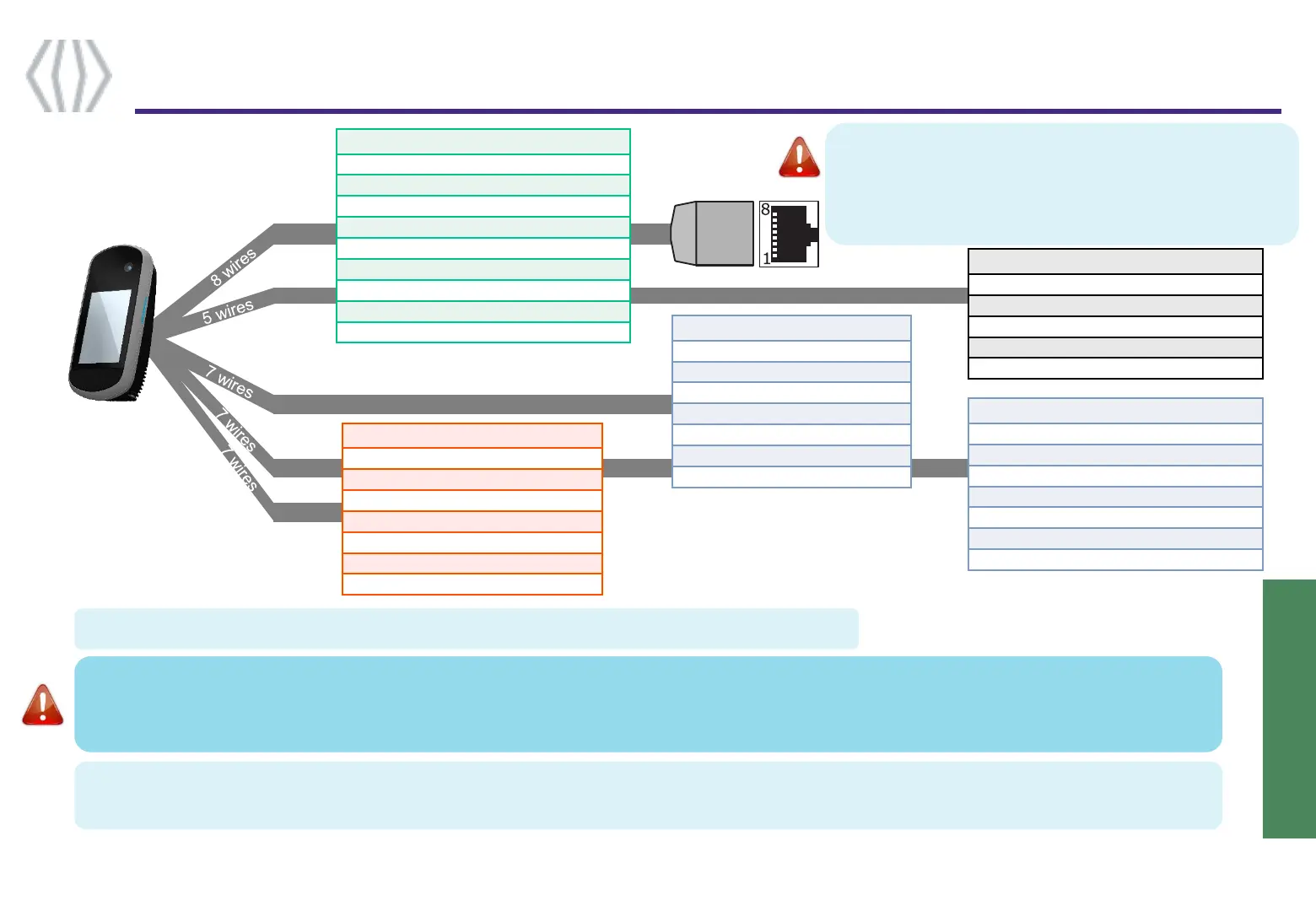

Wiring Overview
13
Power supply from electrical source shall be switched off before starting the installation.
Before proceeding, make sure that the person in charge of installation and connections, is properly connected to
earth, in order to prevent Electrostatic Discharges (ESD).
All connections of the terminal are of SELV (Safety Electrical Low Voltage) type.
Step two : wiring
Backup of the Date/Time of the terminal: the volatile settings (such as date/time) of the terminal are protected against
power failure, by a dedicated component during a least 24 hours (at 25
o
C) without external power supply.
RJ-45 : Ethernet
1
ETH TX+
Orange / White
2
ETH TX
-
Orange
3
ETH RX+
Green / White
4
5
6
ETH RX
-
Green
7
8
Shell
ETH GND
Drain wire (no color)
Wiegand IN & Wiegand OUT
25
WIEGAND_LEDOUT1
Blue
28
WIEGAND_LEDOUT2
Blue / Red
23
WIEGAND_IN1
White / Red
24
WIEGAND_OUT0
Green
26
WIEGAND_OUT1
White
21
WIEGAND_IN0
Green / Red
27
WIEGAND_GND
Black / Red
RS-422 and 485
7
RS485_RX_A
Blue / Black
8
RS485_TX_Z
Green / White
9
RS
485_RX_B
Blue / White
10
RS
485_TX_Y
Green / Black
11
RS
485_GND
Black / Red
Power supply & Tamper switch
13
RLY_NC
Orange / White
14
RLY_NO
Yellow / White
12
RLY_COM
Grey / White
5
SWITCH_PIN1
Light Blue
6
SWITCH_PIN2
Pink
1,3
Power + 12V
Red
2,4
Power GND
Black
RJ45
GPIO
19
GPI2
Orange / Black
20
GPO2
Yellow
/ Red
17
GPI1
Orange / Red
18
GPO1
Yellow / Red
15
GPI0
Orange
16
GPO0
Yellow
22
GPIO_GND
Black
/ Red
IDEMIA - 2019_2000045730 – V1
Pin numbers shown in this document correspond
to the internal connector pinout in the product.
The connector attached to the cable is for test
only and should be removed for installation.
