Single Door Access Control (SDAC)
20
If door contact is not used, GPI1 (17) and GPO1 (18) shall be connected together

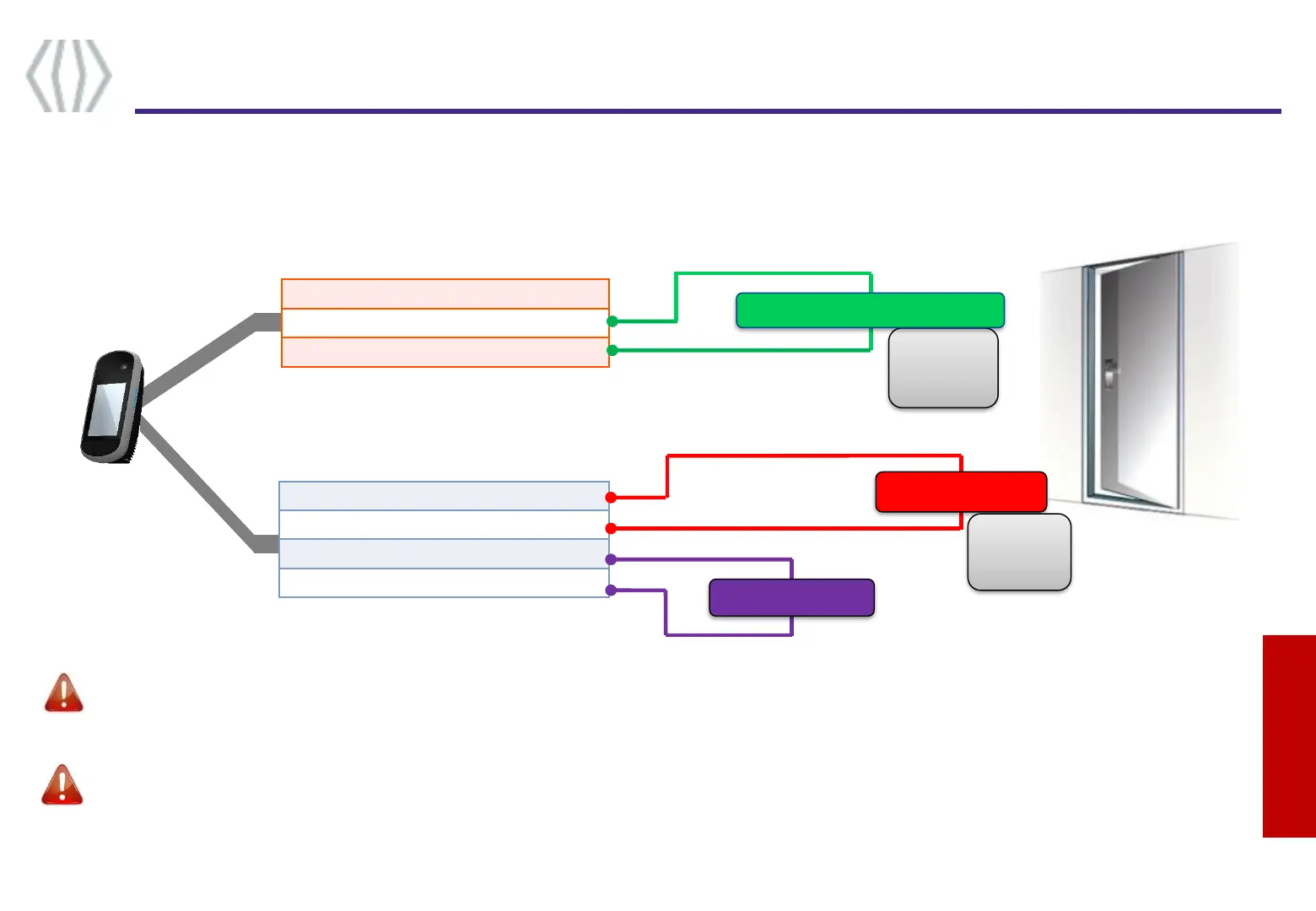

Single Door Access Control (SDAC) wiring sample : with Push Button
Step four
: SDAC
Power supply from electrical source shall be switched off before starting the installation.
IDEMIA - 2019_2000045730 – V1
13
RLY_NC
Orange / White
14
RLY_NO
Yellow / White
12
RLY_COM
Grey / White
17
GPI1
Orange / Red
18
GPO1
Yellow / Red
15
GPI0
Orange
16
GPO0
Yellow
Power
supply
Deadbolt / Door strike
Door contact
Power
supply
Push Button
See details on next page
for relay connection
