Idemia VisionPass - Internal Relay Wiring for SDAC Applications; SDAC Internal Relay Operation

IDEMIA DOCUMENT – REPRODUCTION AND DISCLOSURE PROHIBITED

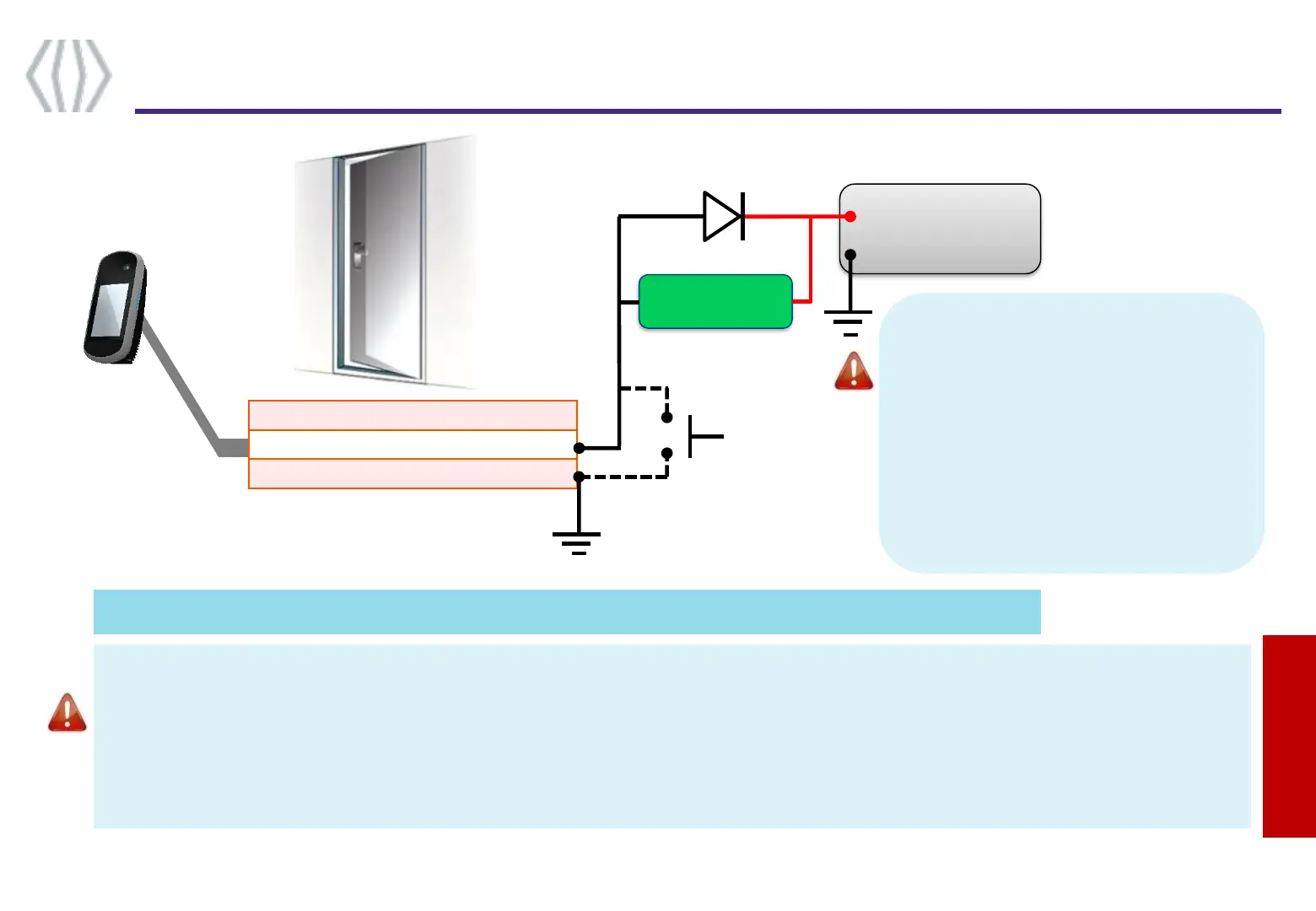

Internal Relay Wiring
21
RJ45
Inductive load management requires a parallel diode for a better contact lifetime.
Warning
 The internal relay is limited to a maximum current of 1A @ 30V. If the deadbolt / door strike draws
more than 1A, damage to the device may occur. If the deadbolt / door strike load exceeds 1A, an
external relay must be used.
 The internal relay is designed for 100.000 cycles. If more cycles are needed, an external relay
driven by GPO must be used.
Step four
: SDAC
IDEMIA - 2019_2000045730 – V1
13
RLY_NC
Orange / White
14
RLY_NO
Yellow / White
12
RLY_COM
Grey / White
Power supply
VCC < 30V
Imax < 1A
Deadbolt /
Door strike
Push Button
on other side
of the door
Protection Diode
Warning
This is recommended only for
small or stand-alone
applications where access
control panels are not available.
In this mode it is strongly
recommended to monitor the
Tamper Detection of the device
Example for Normally
Open connection
