iPOINT X – Hardware User Manual | 18.06.2020

4. Mechanical Information & Installation

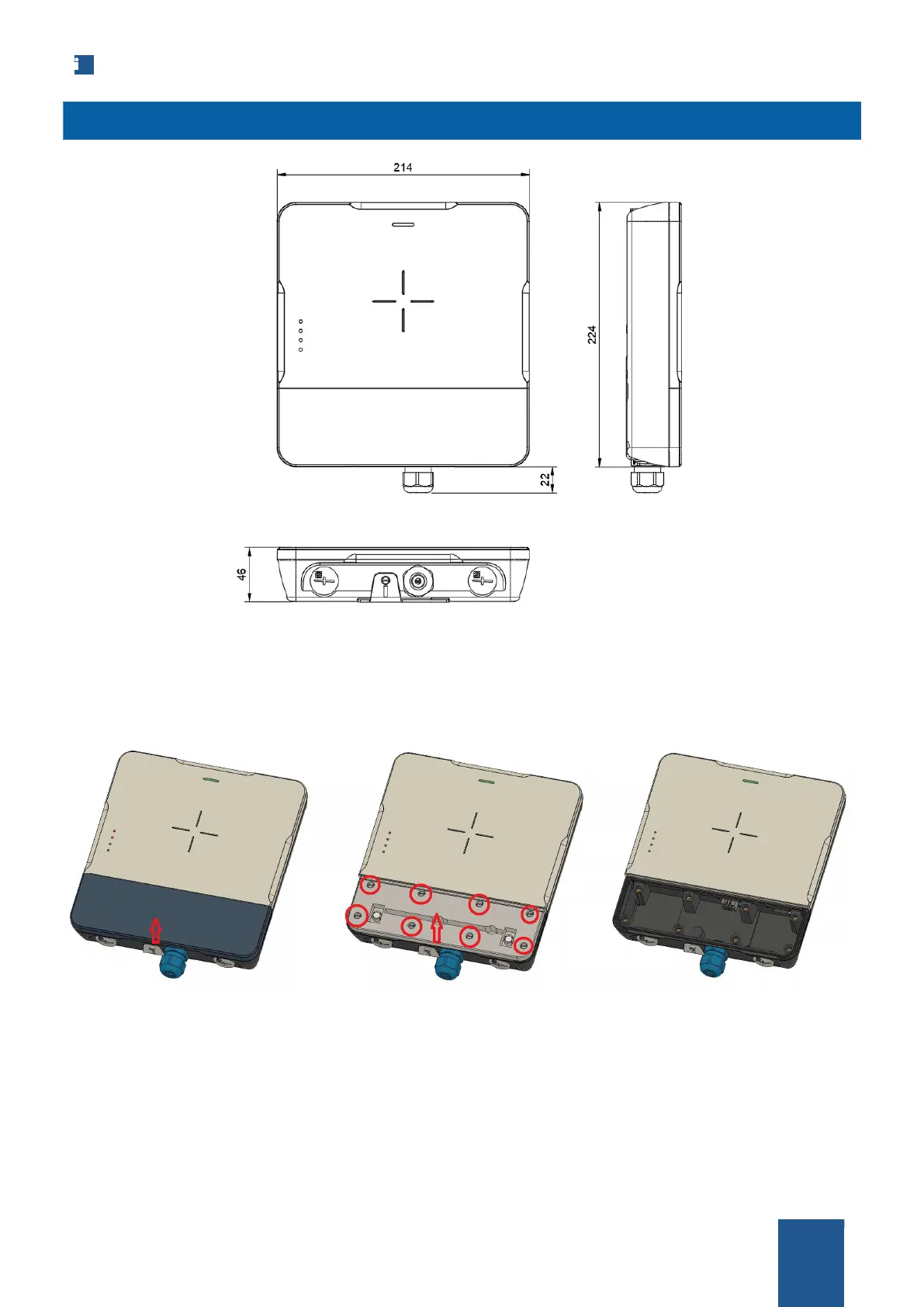

Housing Dimensions

4.1 Opening the connection Chamber

1. Lift up the cover using thumbs from the front side until magnetic connection is released, lift off.

2. Loosen the 8x screws, be aware, DO NOT pull out the screws out completely, the gasket can be damaged.

3. Lift off the lid.

4. Now you have access to the Connection Chamber

Note: when replacing the lid, be sure that the sealing gasket is correctly in place.

Note: The rest of the housing cannot be accessed. There is no settings or modifications to be made there.
