Idex Gast 2AM Series User Manual

5
REF# DESCRIPTION QTY 1AM-NCC-12 1AM-NCW-14 1AM-NRV-39A 1AM-NRV-56 1AM-NRV-60 1AM-NRV-63A
1 ∆ SEAL 1 AC190A AC190A AC190A AC190A AC190A AC190A
2 ∆ BEARING 2 AG549 AG549 AG549 AG549 AG549 AG549
3 DOWEL PIN 4 D324A D324A D324A D324A D324A D324A
4 DRIVE END PLATE 1 AC537 AC539 AC520 AC520D AC520D AC520
5 ∆∆ SHIMS 2 AC527B AC527B AC527B AC527B AC527B AC527B
6 BODY 1 AC521 AC521 AC191 AC191 AC191 AC191
7 CAM RING 2 AC195 AC195 AC195 AC195
8 ROTOR ASSEMBLY 1 AC524 AC536 AC193 AC187 AC607 AC193B
9 ∆ VANE 4 AC205A AC205A AC259A AC259A
8 AC259A AC259A
10 DEAD END PLATE 1 AC538 AC540 AC192 AC192 AC192 AC192
11 ∆ END CAP GASKET 1 AC229 AC229 AC229 AC229 AC229 AC229
12 DEAD END CAP 1 AC228A AC228A AC228A AC228A AC228A AC228A
*** ∆ MUFFLER 1 AF350 AF350 AF350 AF350 AF350 AF350
*** FOAM 1 AG896 AG896 AG896 AG896 AG896 AG896
*** SERVICE KIT 1 K200 K200 K201 K201 K278 K278
*** Item not shown.
∆ Denotes parts included in the Service Kit.
∆∆ Parts used on models manufactured prior to 1998.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding about or ordering parts, please give complete model and serial numbers.
Exploded views are shown for
reference only. Units may vary
depending upon specific model.
1AM SERIES
1UP SERIES
REF# DESCRIPTION QTY 1UP-NCC-1A 1UP-NCW-2A 1UP-NRV-3A 1UP-NRV-4 1UP-NRV-10 1UP-NRV-11
1 ∆ SEAL 1 AC190A AC190A AC190A AC190A AC190A AC190A
2 ∆ BEARING 2 AG549 AG549 AG549 AG549 AG549 AG549
3 DOWEL PIN 4 D324A D324A D324A D324A D324A D324A
4 DRIVE END PLATE 1 AC616 AC520B AC520 AC520D AC520 AC520D
5 ∆∆ SHIMS 2 AC527B AC527B AC527B AC527B AC527B AC527B
6 BODY 1 AE899 AE899 AE898 AE898 AE898 AE898
7 CAM RING 2 AC195 AC195 AC195 AC195
8 ROTOR ASSEMBLY 1 AE896 AE895 AE897 AF746 AE319 AE333
9 ∆ VANE 4 AE893 AE893 AE894 AE894
8 AE894 AE894
10 DEAD END PLATE 1 AC617 AC192A AC192 AC192 AC192 AC192
11 ∆ END CAP GASKET 1 AC229 AC229 AC229 AC229 AC229 AC229
12 DEAD END CAP 1 AC228A AC228A AC228A AC228A AC228A AC228A
*** ∆ MUFFLER 1 AF350 AF350 AF350 AF350 AF350 AF350
*** FOAM 1 AG896 AG896 AG896 AG896 AG896 AG896
*** SERVICE KIT 1 K285 K285 K286 K286 K298 K298

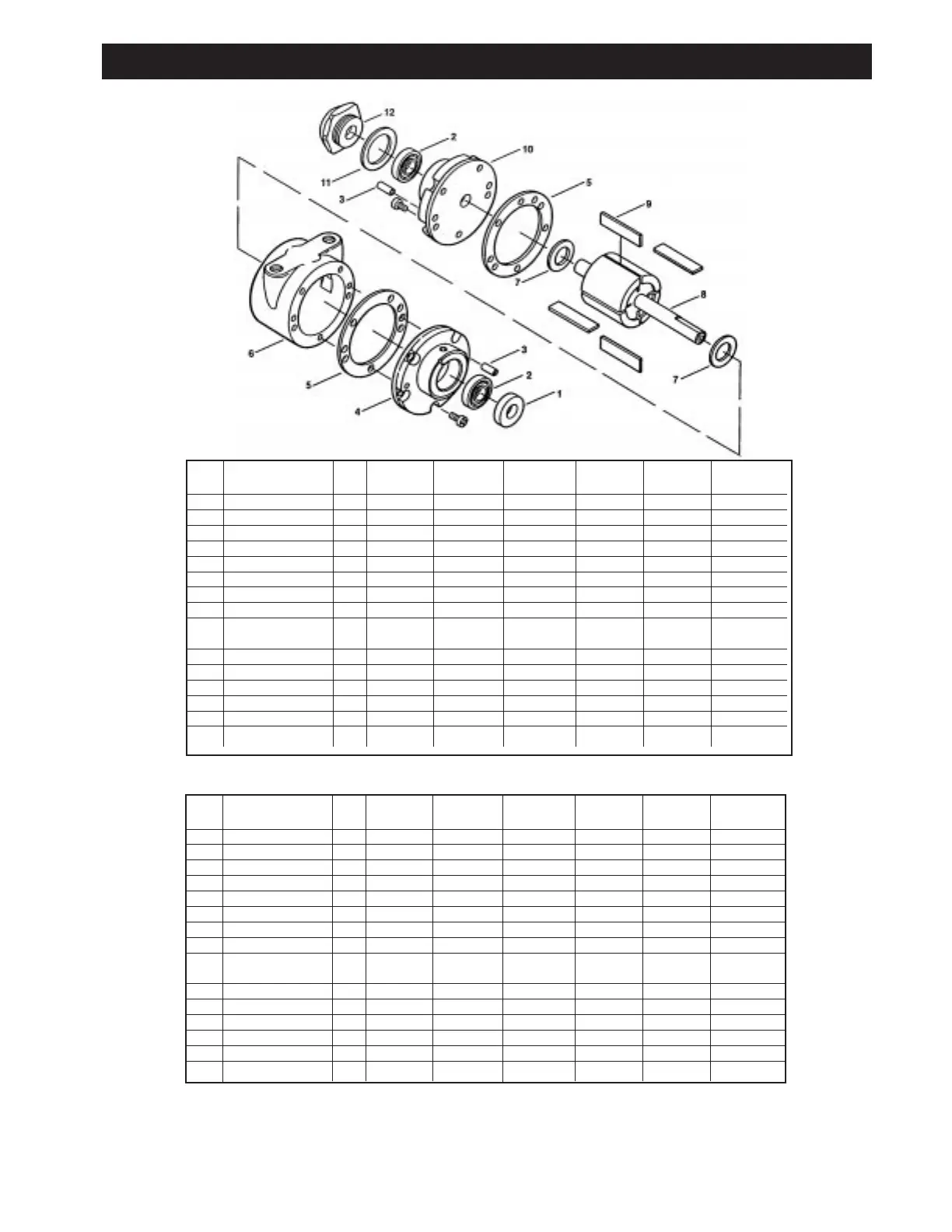

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
