** #AL484 (5A) O-ring replaces shim on some models.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.

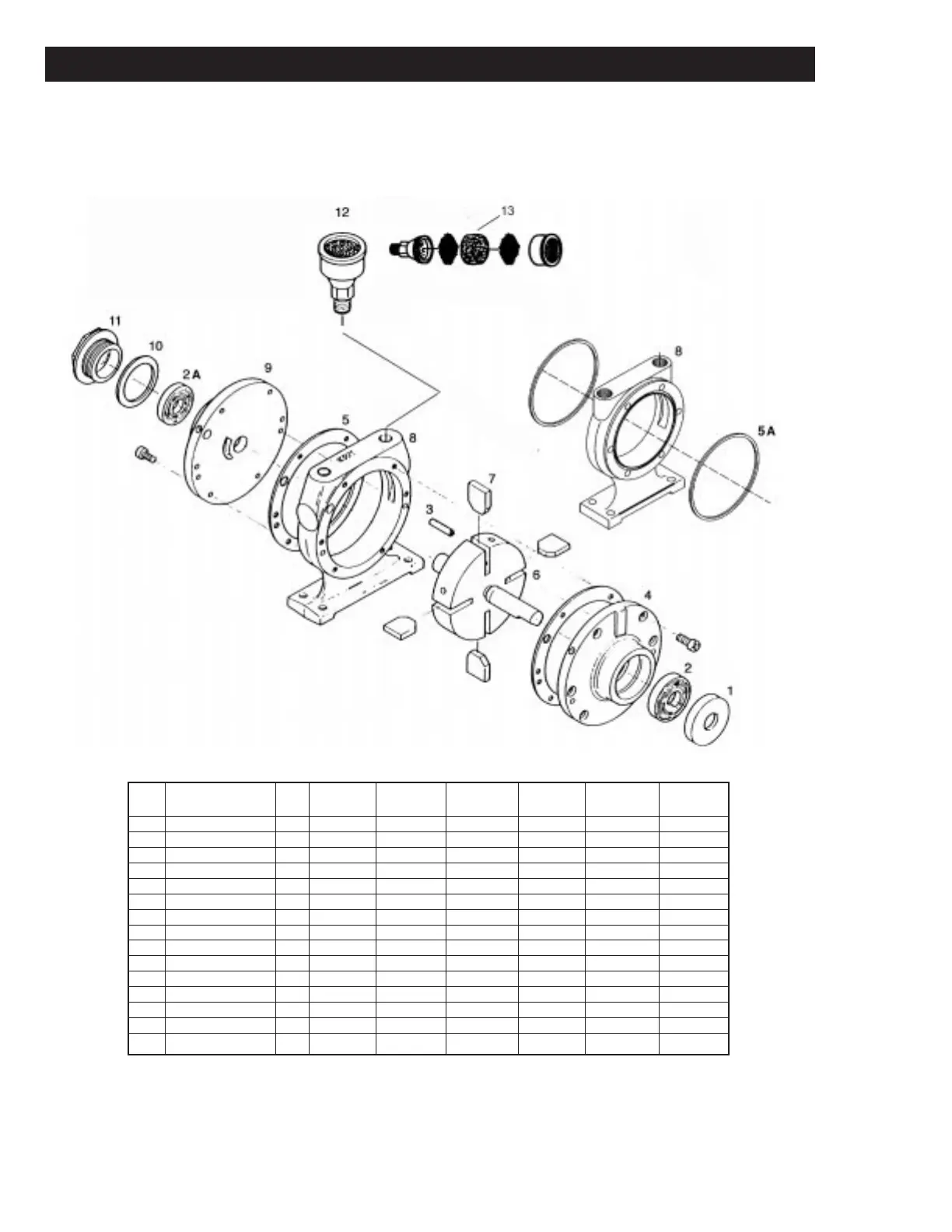

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
2AM SERIES
REF# DESCRIPTION QTY 2AM-FCC-1 2AM-NCW-7A 2AM-FCW-13 2AM-NCC-16 2AM-NCC-43A 2AM-ACC-88
METRIC
1 ∆ SHAFT SEAL 1 AA466B AA466B AA466B AA466B B2328 B2328
2 ∆ DRIVE END BEARING 1 AA299J AA299J AA299J AA299J AB519 AB519
2A ∆ DEAD END BEARING 1 AA299J AA299J AA299J AA299J AA299J AA299J
3 DOWEL PIN 4 AB162 AB162 AB162 AB162 AB162C AB162C
4 DRIVE END PLATE 1 AC720 AC726 AC722 AC724 AG708 AK425A
5 ∆ ** SHIMS 2 B330 B330 B330 B330 B330 B330
6 ROTOR ASSEMBLY 1 AA470A AA489A AA489A AA470A AM449A AM449B
7 ∆ VANE 4 AA13B AA13B AA13B AA13B AA13B AA13B
8 BODY 1 AA477 AA467 AA477 AA467 AA467 AA467F
9 DEAD END PLATE 1 AC721 AC723 AC723 AC721 AC721 AB622N
10 ∆ END CAP GASKET 1 AA46 AA46 AA46 AA46 AA46 AA46
11 END CAP 1 AM307D AM307D AM307D AM307D AM307D AM307D
12 MUFFLER ASSEMBLY 1 AC980 AC980 AC980 AC980 AC980 AC980
13 MUFFLER FELT 1 AC983 AC983 AC983 AC983 AC983 AC983
*** SERVICE KIT 1 K202 K202 K202 K202 K203A K203A
Exploded views are shown for
reference only. Units may vary
depending upon specific model.
