7
REF# DESCRIPTION QTY 4AM-FRV-13C 4AM-NRV-22B 4AM-FRV-24 4AM-NRV-50C 4AM-NRV-54A 4AM-NRV-70C 4AM-ARV-119 4AM-ARV-120
METRIC METRIC
1 ∆ SHAFT SEAL 1 AA466B AA466B AA466B (2) B2328 AA466B B2328 B2328 B2328
2 ∆ DRIVE END BEARING 1 AA299J AA299J AA299J AB519 AA299J AB519 AB519 AB519
2A ∆ DEAD END BEARING 1 AA299J AA299J AA299J AA299J AA299J AA299J AA299J AA299J
3 DRIVE END PLATE 1 AC727 AC665 AC727 AG707 AC665` AG707 AK425A AK425A
4 ROTOR ASSEMBLY 1 AB617 AB617 AM426 AM455A AM411 AM319A AM455C AM455B
5 ∆ VANE 4 AB876 AB876 AB876 AB876 AB876
8 AB876 AB876 AB876
6 ∆ PUSH PINS 4 AM467 AM467 AM467 AM467 AM467
8 AM467 AM467 AM467
7 ∆ VANE SPRING 2 AM466 AM466 AM466 AM466 AM466
4 AM466 AM466 AM466
8 BODY 1 AM425 AM410 AM425 AM410 AM410 AM410 AM410M AM410M
9 ∆ ** SHIMS 2 B330 B330 B330 B330 B330 B330 B330 B330
10 DEAD END PLATE 1 AC728 AC728 AC727 AC728 AC728 AC728 AB622M AB622M
11 ∆ END CAP GASKET 1 AA46 AA46 AA46 AA46 AA46 AA46 AA46
12 DEAD END CAP 1 AM307D AM307D AM307D AM307D AM307D AM307D AM307D
13 MUFFLER ASSEMBLY 1 AC980 AC980 AC980 AC980 AC980 AC980 AC980 AC980
14 ∆ MUFFLER FELT 1 AC983 AC983 AC983 AC983 AC983 AC983 AC983 AC983
*** SERVICE KIT 1 K205 K205 K205G K206A K279 K280A K206C K206B

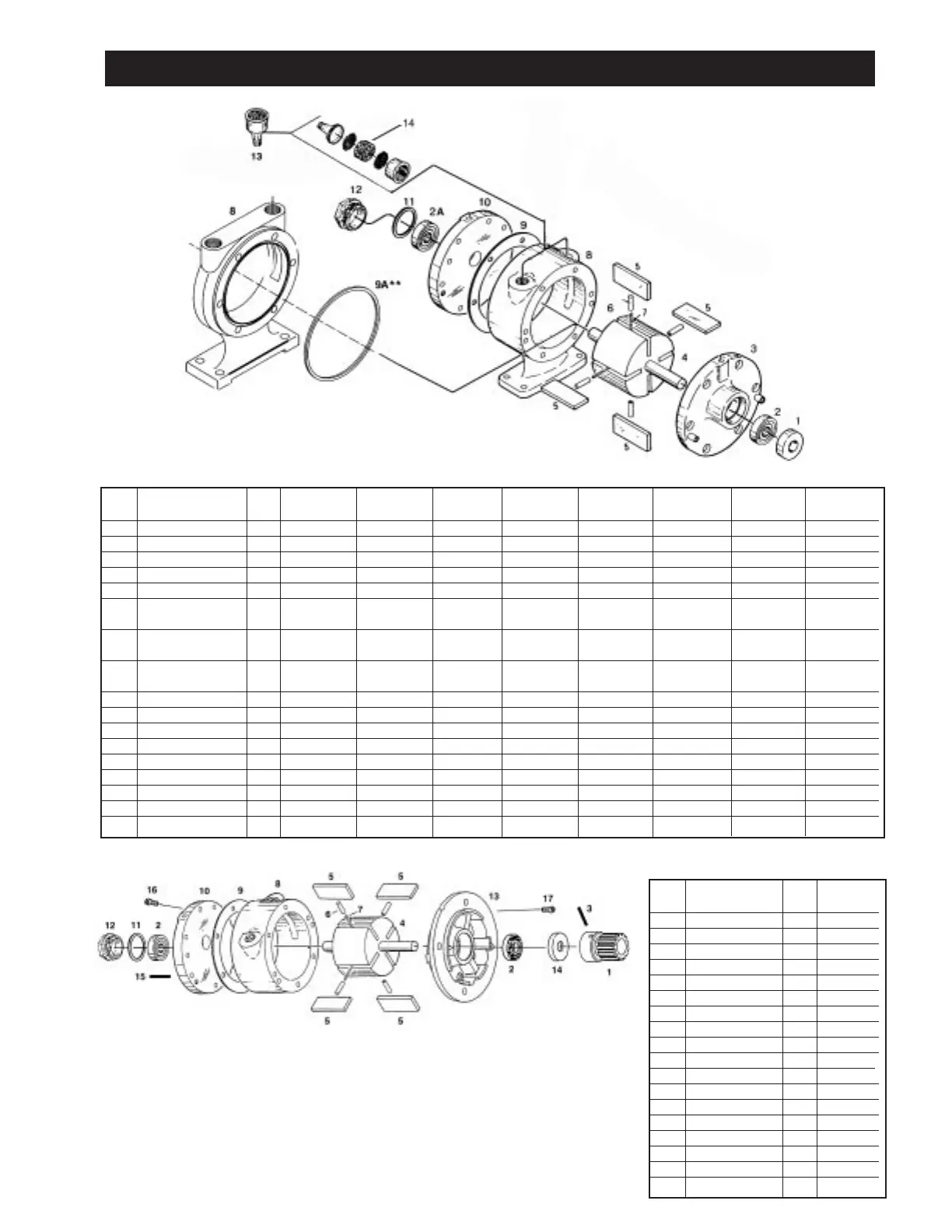

EXPLODED PRODUCT VIEWS, PARTS & ORDERING INFORMATION
*** Item not shown.
** #AL484 (9A) O-ring replaces shims on some models.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult
the factory. When corresponding or ordering parts, please give complete
model and serial numbers.
4AM SERIES
Exploded views are shown for
reference only. Units may vary
depending upon specific model.
REF# DESCRIPTION QTY 4AM-RV-75
1 GEAR STD. 1 AA294
2 ∆ BEARING 2 AA299J
3 PIN 1 AA297
4 ROTOR 1 AA293
5 ∆ VANE 4 AB876
6 ∆ SPRING PIN 4 AM467
7 ∆ SPRINGS 2 AM466
8 BODY 1 AM410
9 ∆ SHIMS 2 B330
10 DEAD END PLATE 1 AC728
11 ∆ END CAP GASKET 1 AA46
12 END CAP 1 AM307D
13 DRIVE END PLATE 1 AA424
14 SEAL 1 AA466B
15 DOWEL PINS 4 AB162
16 1/4-28 x .50 PFHMS 6 BB631
17 1/4-28 x .625 SHCS 6 BB634
*** SERVICE KIT 1 K205
4AM SERIES
