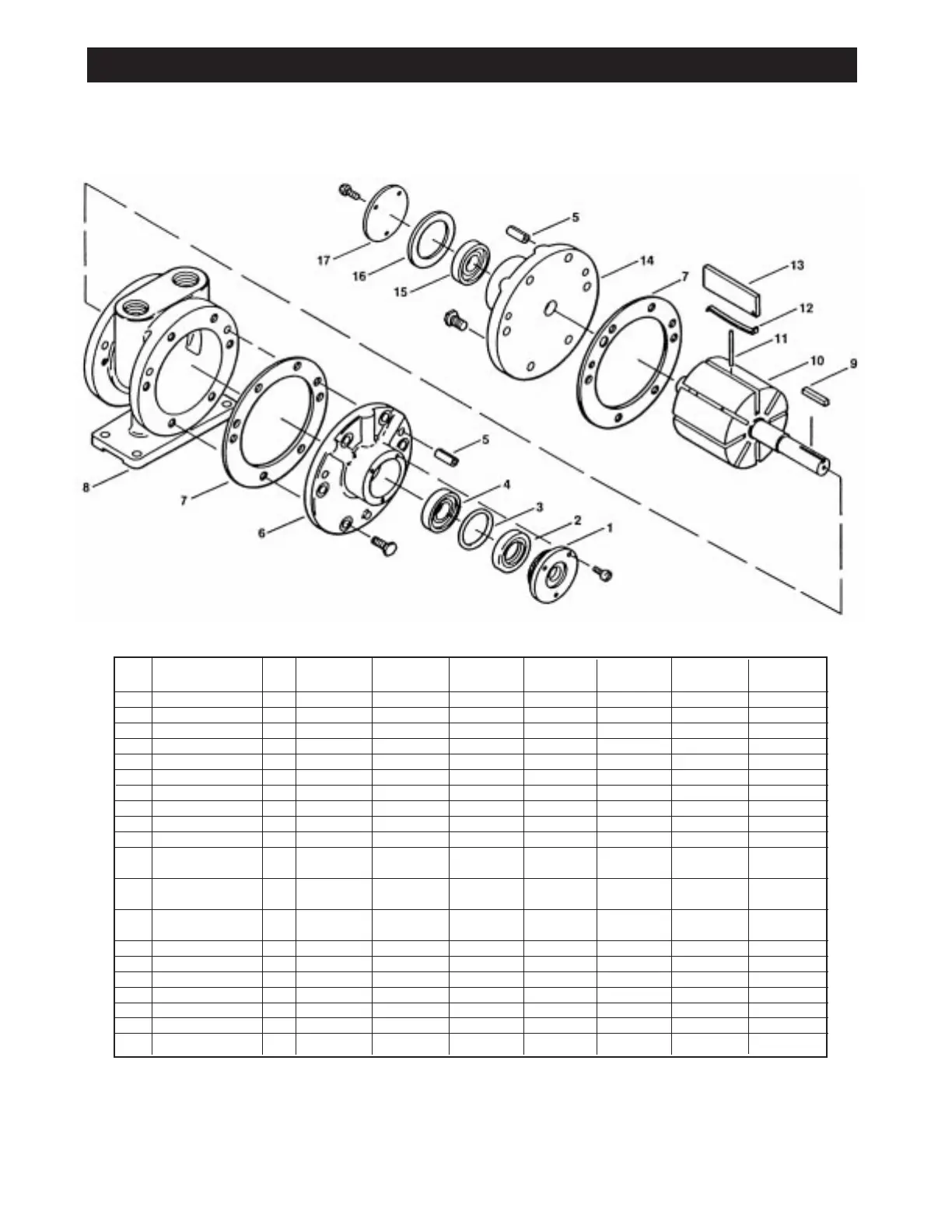

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
*** Item not shown.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
Exploded views are shown for
reference only. Units may vary
depending upon specific model.
REF# DESCRIPTION QTY 6AM-FRV-5A 6AM-NRV-7A 6AM-NRV-22A 6AM-FRV-23A 6AM-ARV-54 6AM-ARV-55 6AM-NRV-11A
NEMA
1 DRIVE END CAP 1 AD642A AD642A AD642A AD642A AC988 AC988 AD642A
2 ∆ SHAFT SEAL 1 AC849 AC849 AC849 AC849 AK423 AK423 AC849
3 ∆ O-RING 1 AD649 AD649 AD649 AD649 AC989 AC989 AD649
4 ∆ DRIVE END BEARING 1 AD638A AD638A AD638A AD638A AC894B AC894B AD638A
5 DOWEL PIN 4 AB162 AB162 AB162C AB162 AB162C AB162C AB162C
6 DRIVE END PLATE 1 AD651 AD666 AD667 AD651 AK424 AK424 AD667
7 ∆ BODY GASKET 2 AD641 AD641 AD641 AD641 AD641 AD641 AD641
8 BODY 1 AD650A AD665 AD665 AD650A AD665D AD665D AD665
9 KEY 1 AB136 AB136 AB136 AB136 AK422 AK422 AB136
10 ROTOR ASSEMBLY 1 AD652 AD652 AC398 AC779 AD648E AD648D AD648
11 ∆ PUSH PIN 2 AD655A AD655A AD655A AD655A
4 AD655A AD655A AD655A
12 ∆ VANE SPRING 4 AD692 AD692 AD692 AD692
8 AD692 AD692 AD692
13 ∆ VANE 4 AD691 AD691 AD691 AD691
8 AD691 AD691 AD691
14 DEAD END PLATE 1 AD651 AD651 AD651 AD651 AD651 AD651 AD651
15 ∆ DEAD END BEARING 1 AB519 AB519 AB519 AB519 AB519 AB519 AB519
16 ∆ END CAP GASKET 1 AD644 AD644 AD644 AD644 AD644 AD644 AD644
17 DEAD END CAP 1 AD643 AD643 AD643 AD643 AD643 AD643 AD643
*** MUFFLER ASSEMBLY 1 AC990 AC990 AC990 AC990 AC990 AC990 AC990
*** MUFFLER FELT 1 AC993 AC993 AC993 AC993 AC993 AC993 AC993
*** SERVICE KIT 1 K208 K208 K281 K281 K281A K281B K208
6AM SERIES
