QUANTUM DI HEATER OPERATION / MAINTENANCE MANUAL PAGE 15
Connect the supply grounding wire to the grounding lug and the other
three lines into the top of the circuit breaker connections (L1, L2, and
L3) as shown in Figure 3-1 (torque wire terminal connections to 120
in/lb).

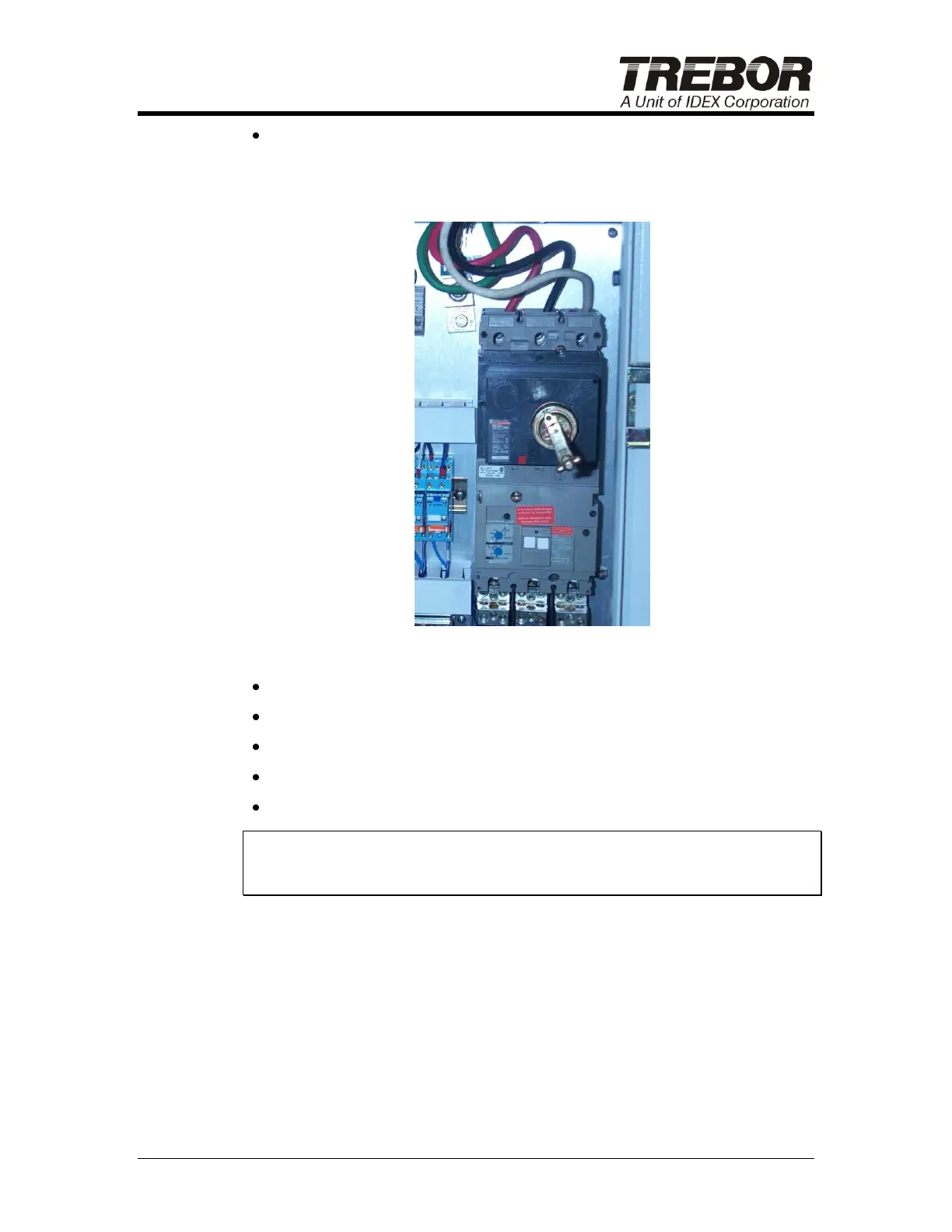

Figure 3-1: (MTD0443)
Close the door and secure.
Check ground continuity on cabinet to any facility ground.
Remove Facility power Lockout/Tagout.
Restore Facility power supply to the heater.
Follow heater Pre-Start Inspection (see Section 5.1).
NOTE: Before starting the system, it is important to become familiar with
Section 4, Operation. Only trained, qualified, authorized, personnel
should operate this system.
3.3.a Ethernet Communication
For remote monitoring and control of the heater, plug an Ethernet cable
into the RJ45 connector on the lower rear connection panel of the
system.
