5
• For more details on front panel buttons, refer to the manual.
• This document covers the 8- and 16-channel digital video recorders. The DVRs are identical except for the number
of cameras and alarms that can be connected and the number of cameras that can be displayed. For simplicity, the
illustrations and descriptions in this document refer to the 16-channel model.

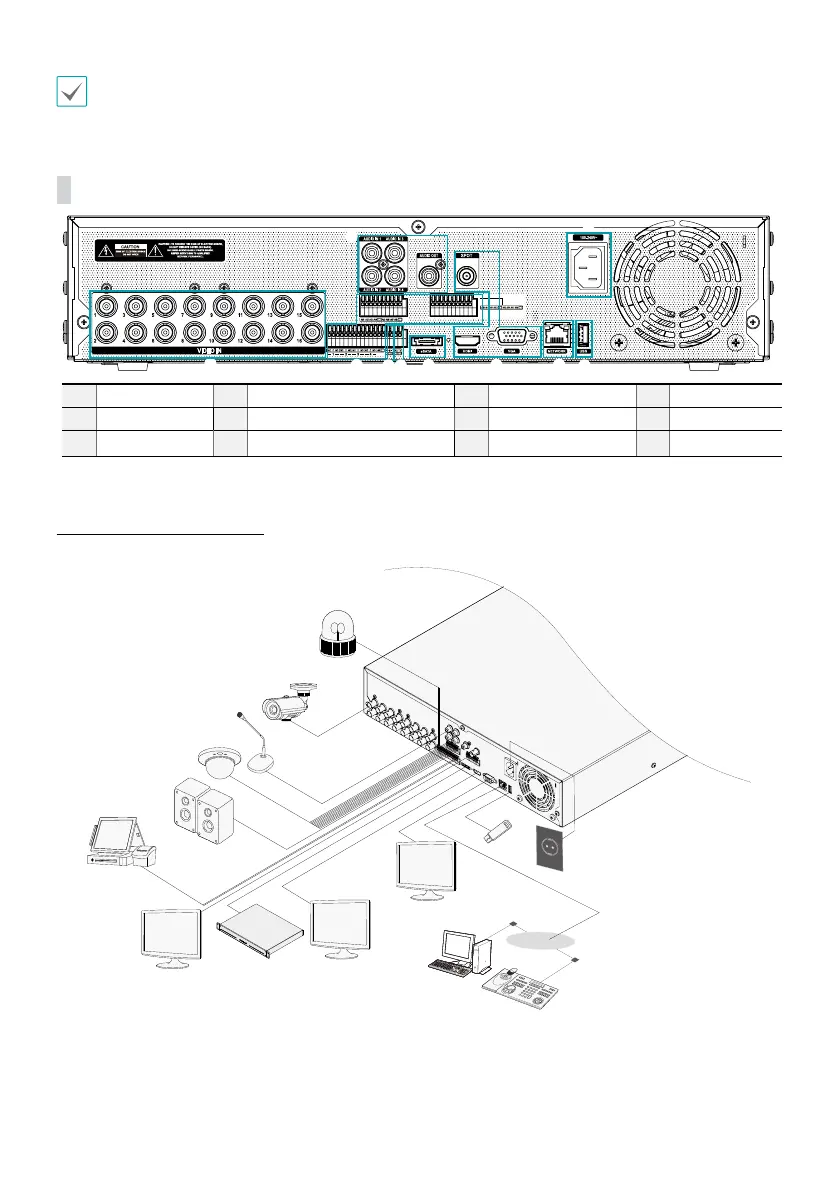

Rear Panel
1
Video In Ports
2
Alarm Connection Ports
3
RS485 Port
4
RS232 Port
5
eSATA Port
6
SPOT / HDMI / VGA Out Ports
7
Network Port
8
USB 3.0 Port
9
Audio Ports
0
Power In Port
Connections on the Rear Panel
Microphone
Speaker
VGA Monitor
HDMI Monitor
Sensor
Keyboard
Power
Alarm
POS
IDIS Center
Remote
Monitoring
Analog
Camera
Network
SPOT Monitor
eSATA Storage
Device
USB
To Next Page
