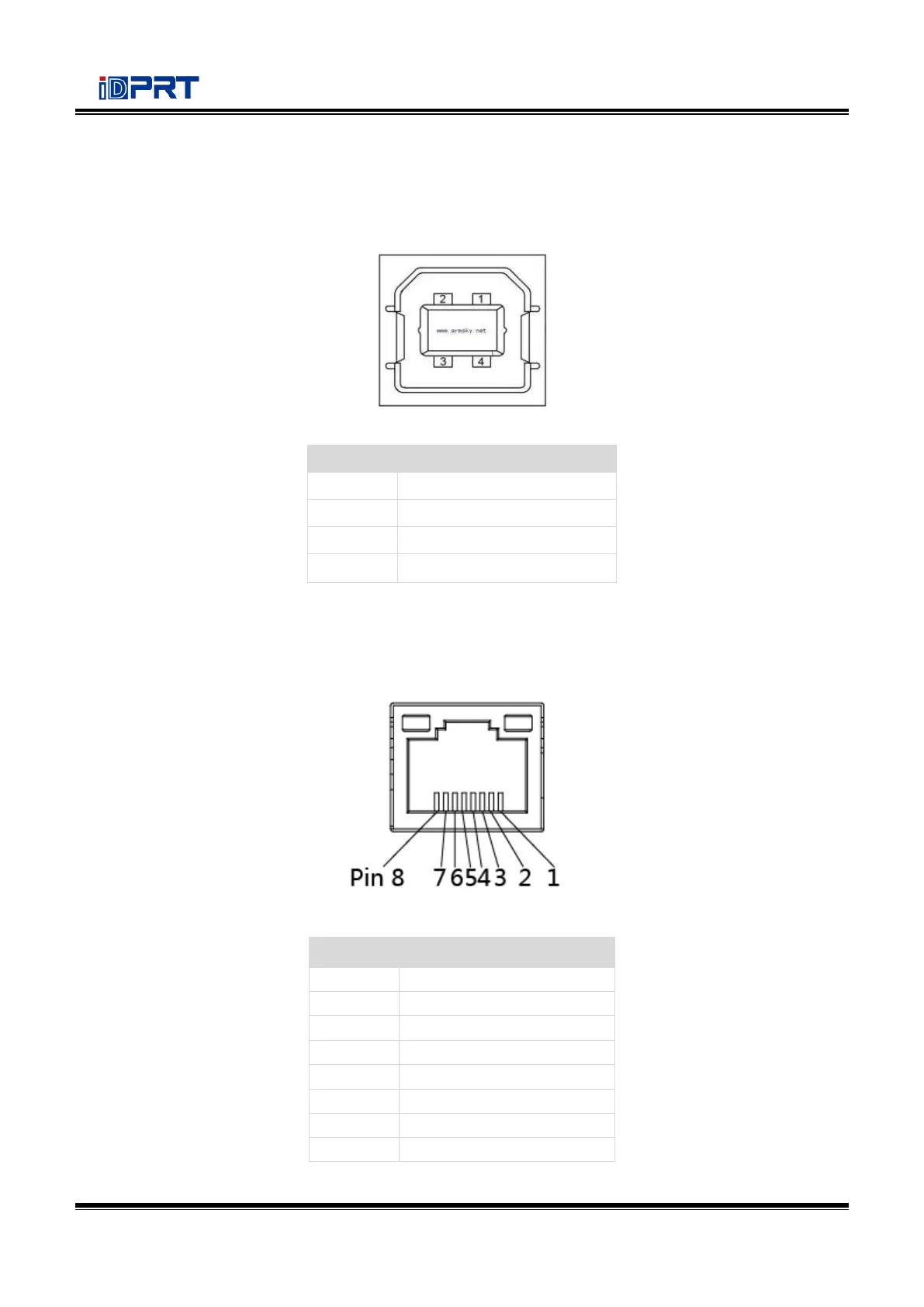

Chapter 4 Interface
4.1 USB Interface
PIN
SIGNAL NAME
1
VBUS
2
D-
3
D+
4
GND
4.2 Ethernet Port
PIN
SIGNAL NAME
1
TX+
2
TX-
3
RX+
4
-
5
-
6
RX-
7
-
8
-
