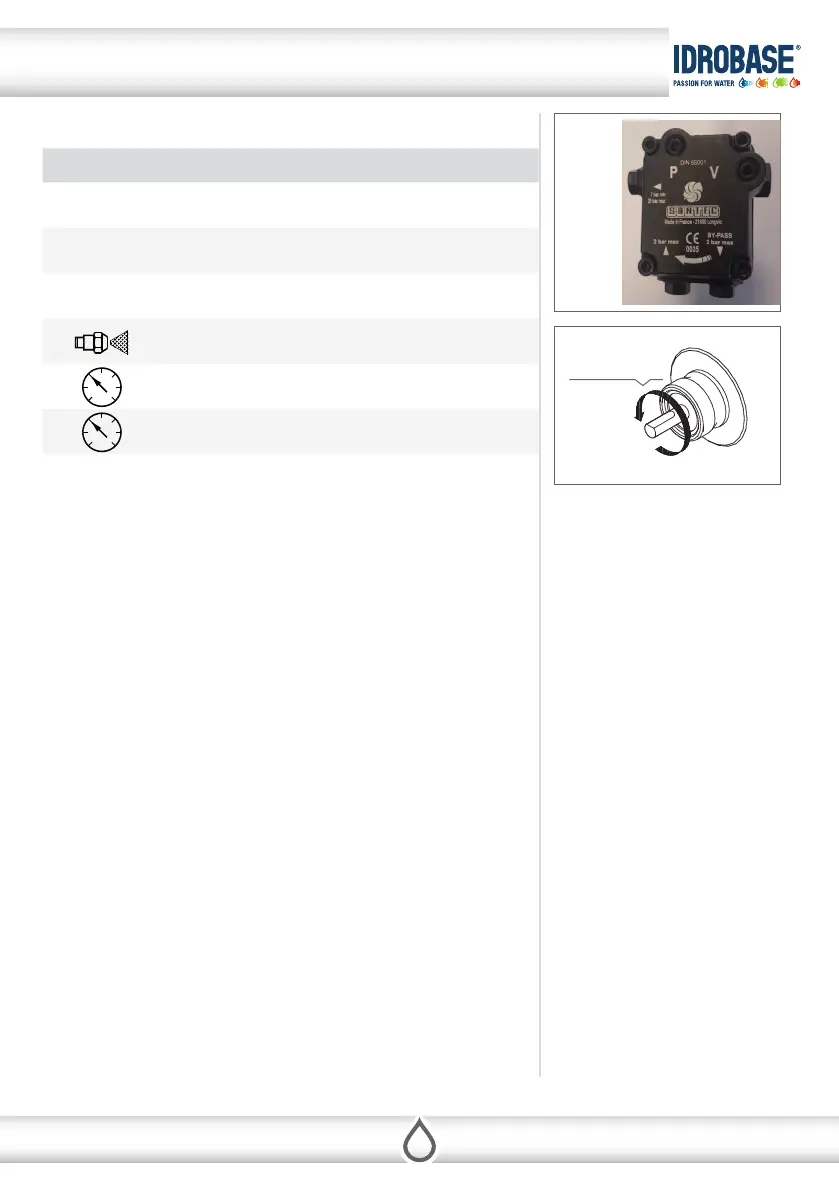

9.7 OIL PUMP (g. A)
LEGEND
P
1
Pressure regulation
S
Suction line G 1⁄4 G 1/4”
R
Return line G 1/4”
E
Nozzle connection G 1/8”
V
Vacuum meter connection G 1/8”
P
Pressure gauge connection G 1/8”
Technical data
Viscosity range: (1.3)1.8-12 mm2/s (cSt)
Speed: 2400-3600 min-1
Pressure range: (7-12 bar) 7-15 bar
Factory setting: 10 bar
Coil voltage (BFA 01): Optional
Temperature range: –10 to +70°C
Connections
Right nozzle outlet, (E), 2-pipe version (g. C).
Direction of rotation (g. B)
