November 2017 10

Operation: IDS NXT

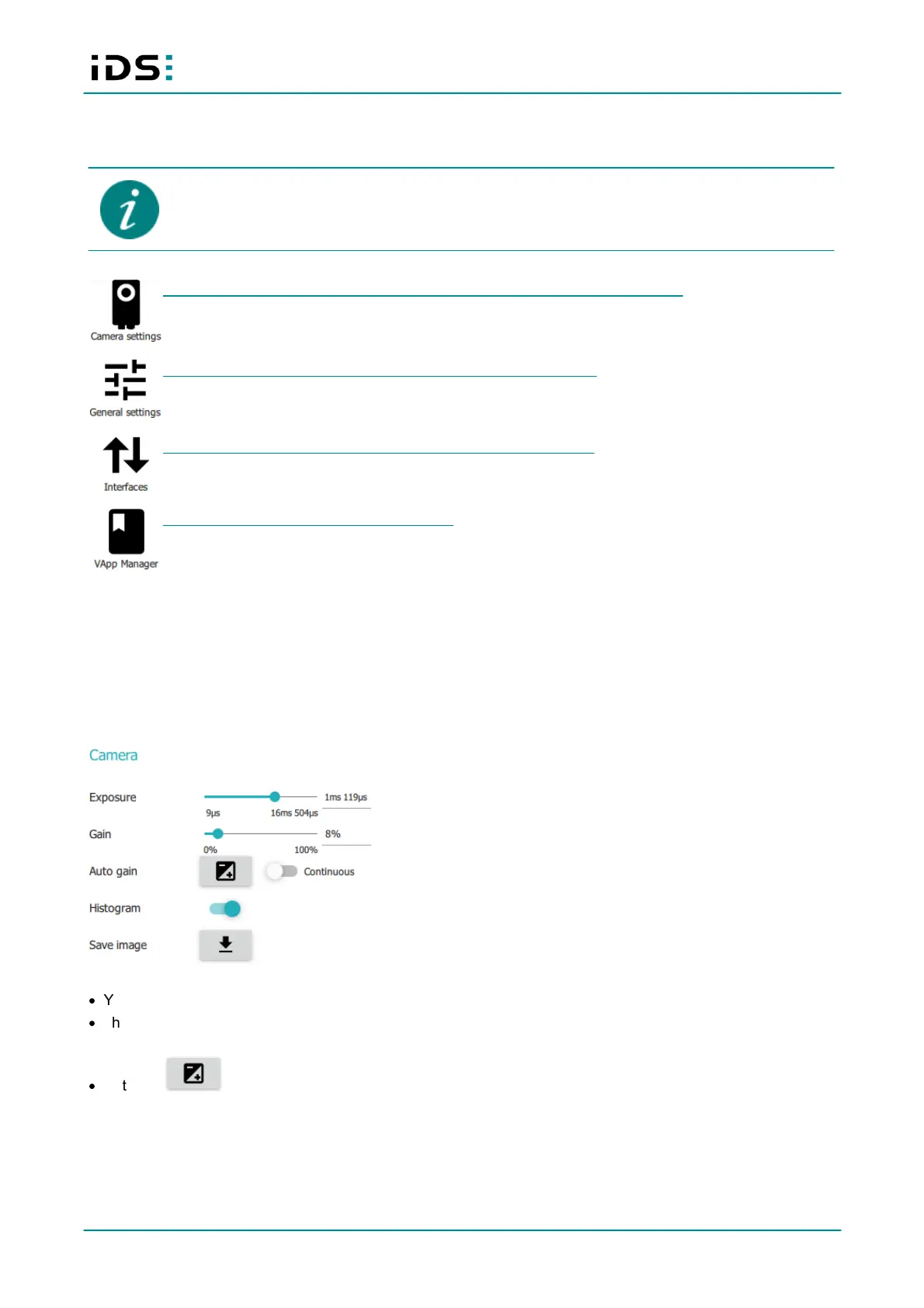

6 Configuration

The following settings can be changed using either the service or administrator profile.

Camera settings: general parameters like exposure time, gain, and histogram

General settings: device settings, date/time and device feedback

Interfaces: settings for interfaces like RS-232 and inputs/outputs

Vision App Manager: Managing vision apps

6.1 Camera

6.1.1 Camera settings

In the "Camera settings" area, you can set the exposure time and gain settings. You can also display a

histogram.

Setting camera parameters

You can set the exposure time either via the slider or enter a numerical value in the input field behind it.

The gain can be set automatically ("Continuous"option) or manually. 0% = no gain and 100% = maximum

possible gain (depending on the sensor).

With the button you can determine the automatic gain value once if you do not want to use the

"Continuous" option.

To determine the gain value, the trigger mode is briefly changed to "Software" and then reset to the original

value. No moving objects should be used for the determination, otherwise the correct execution cannot be

guaranteed.
