November 2017 13

Operation: IDS NXT

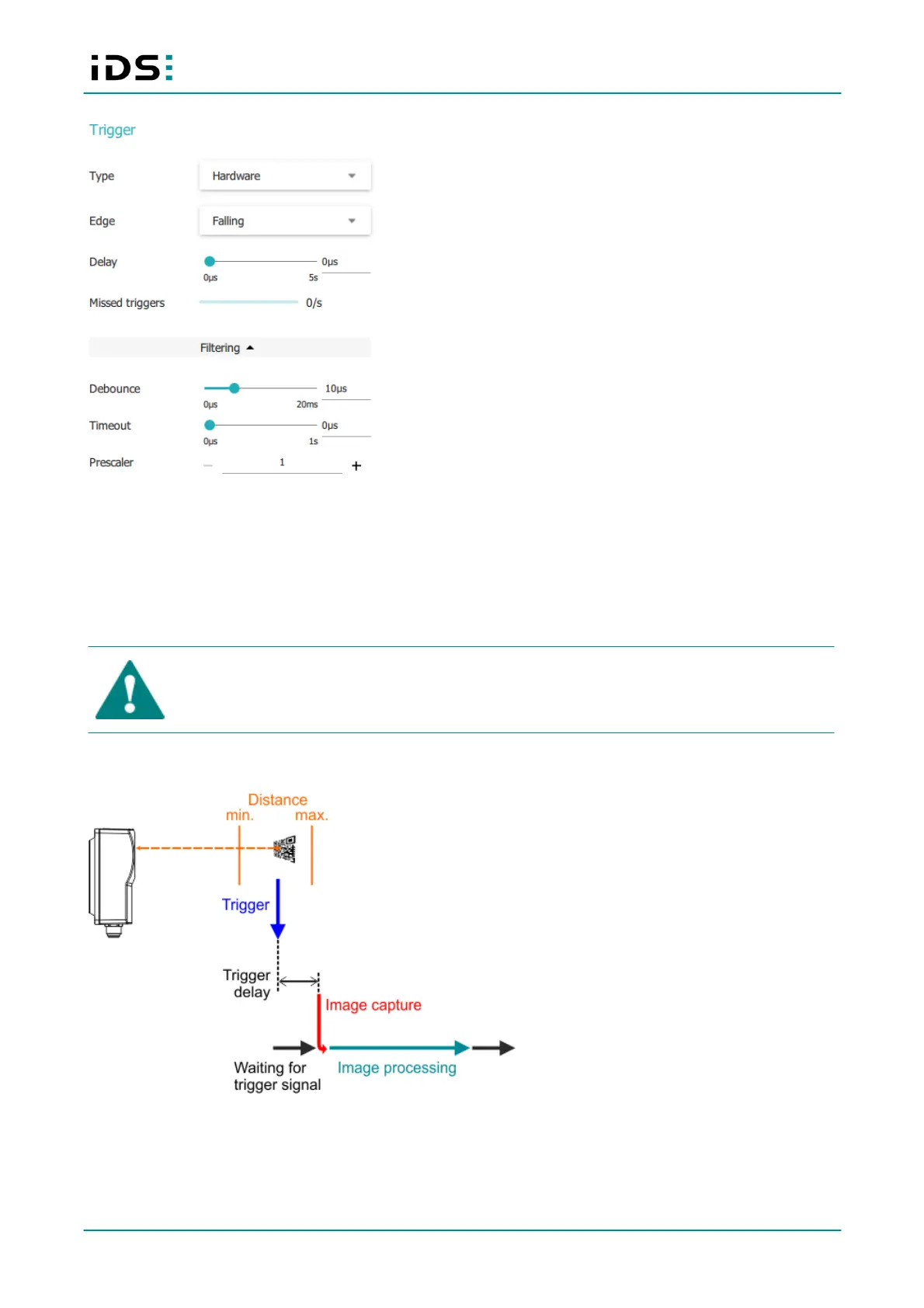

Trigger "Hardware"

In this trigger mode, the live image only shows an image if a trigger has been activated. In the live image, you

can see the capture date of the last image in the lower right corner. Under "Lost Triggers", the lost triggers per

second are displayed in relation to the captured images. The display changes to orange if more than 10 % of

triggers are lost and to red if more than 20 % of triggers are lost.

6.1.3.4 Trigger type "Distance"

CAUTION! Class 1 laser

The accessible laser radiation is harmless under reasonably predictable conditions. Observe the

legal regulations for laser protection.

In the "Distance" mode, image acquisition is triggered by the distance measurement (ToF sensor).

Trigger type "Distance"

You have the following settings for this special trigger mode:
