Operation: IDS NXT

4 Overview

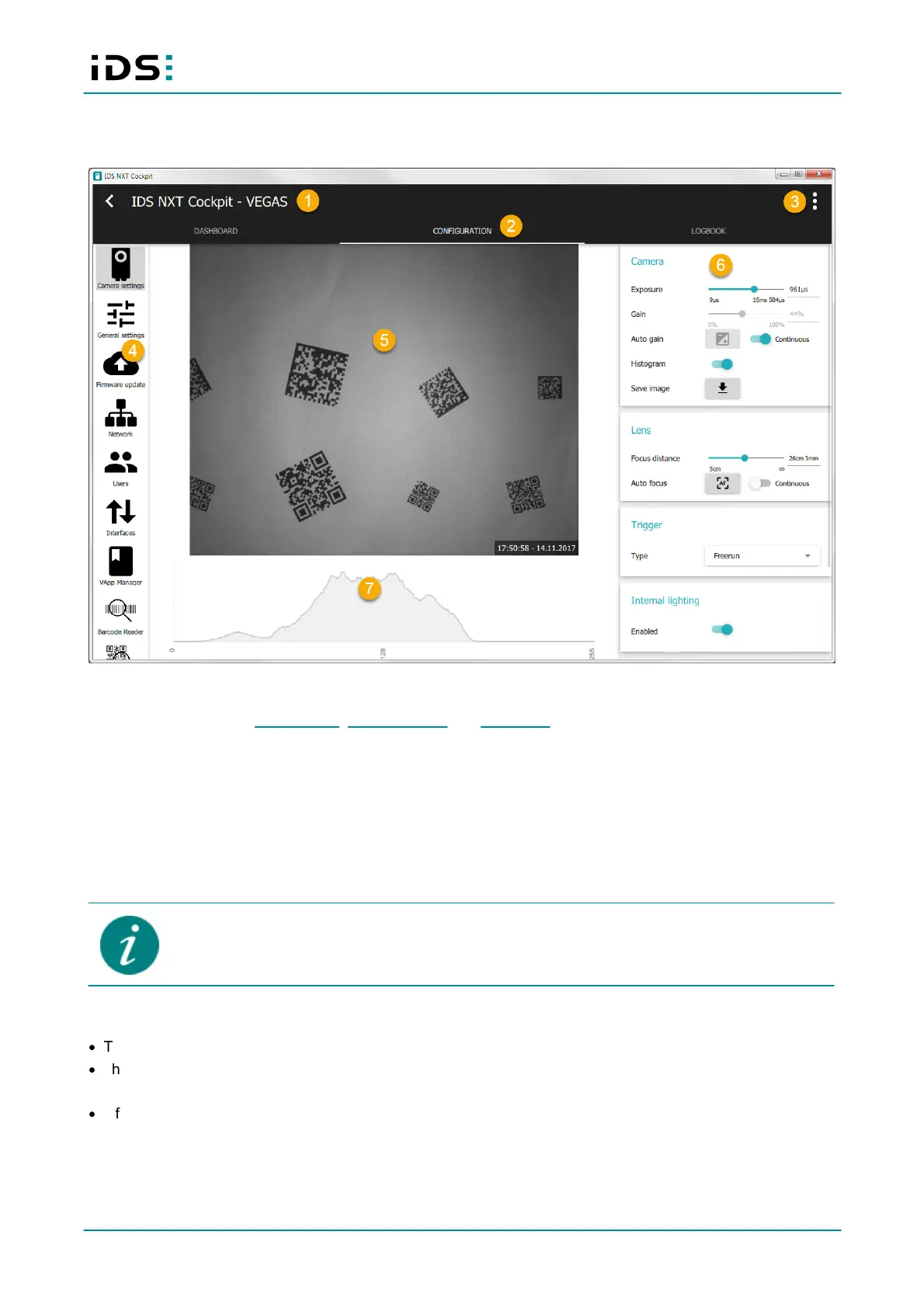

Configuration - overview

1. Back to IDS NXT finder

2. Selection of the tabs "Dashboard", "Configuration" and "Logbook"

3. Language selection and general information about IDS NXT Cockpit

4. Left navigation with different settings

5. Image view with capture date

6. Setting parameter of the camera

7. Histogram display

5 Dashboard

The "Dashboard" is visible for all user profiles without restriction.

In the "Dashboard", you see:

The result image of the last read operation with capture time

The system monitor with information about the image processing status, frame rate, CPU load etc. If values

are outside their defined limits, this is indicated optically by displaying the corresponding value in orange/red.

Information about the device such as name, location, serial number etc.
