p.9
wire will be reduced to 1/4 of single wire.
○

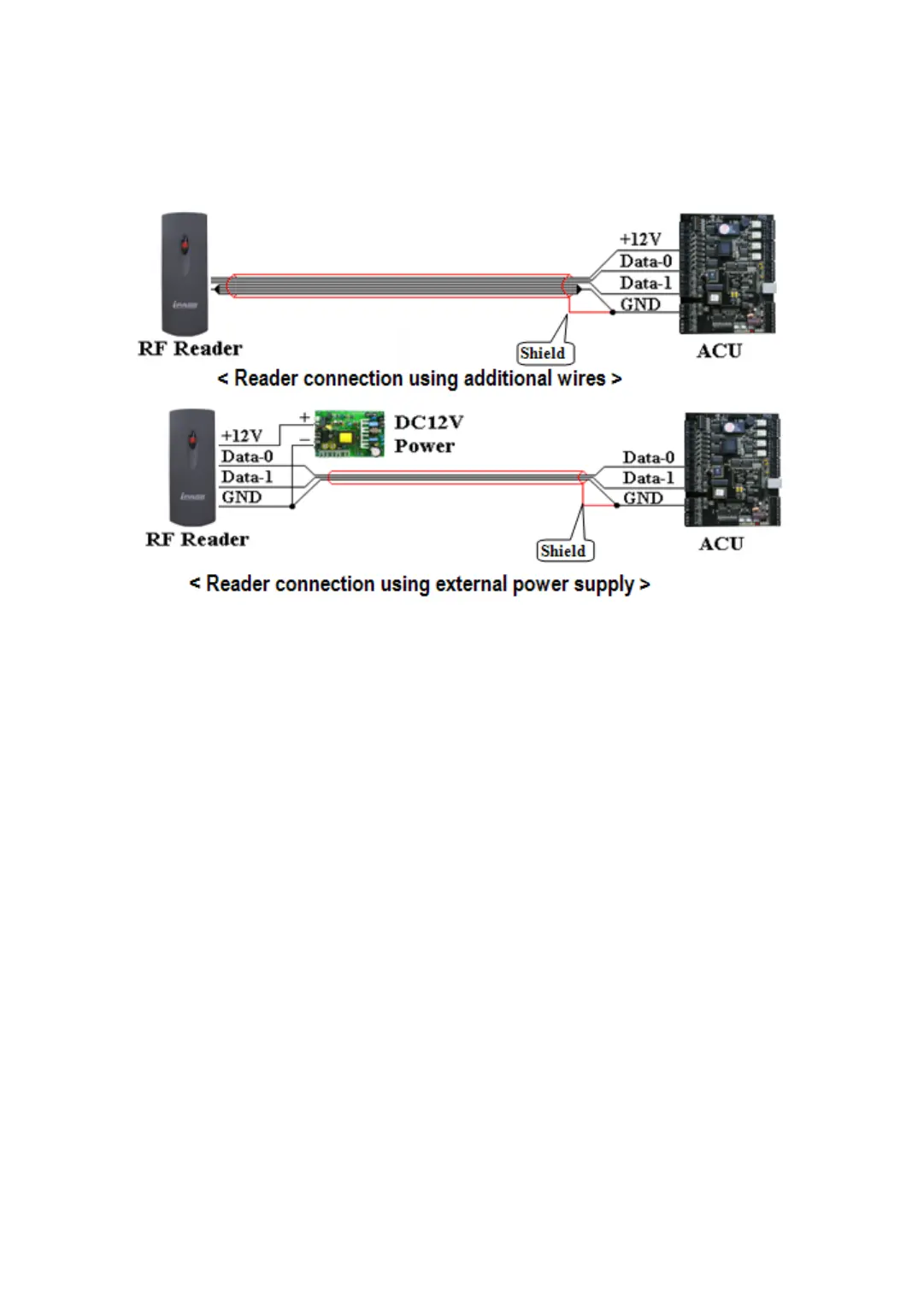

Use separate power for the reader; Disconnect +12V wire from the ACU and conne
ct external power supply to the reader nearby then there will be no current flow thr
ough the GND wire and no voltage drop between both ends of GND wire.
