2

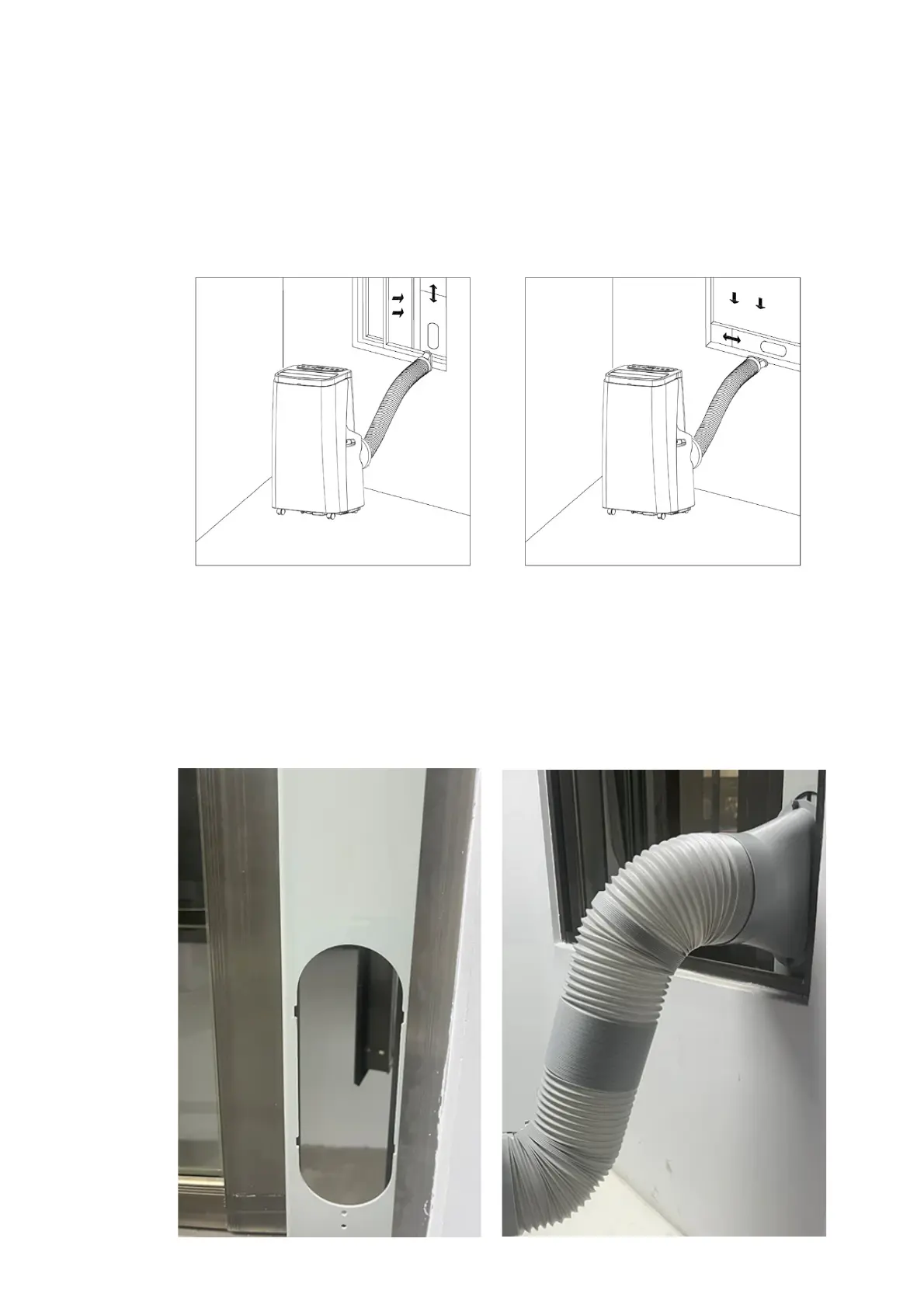

Elongate the Exhaust Pipe. Snap the flat end of the Exhaust Pipe joints into
the hole of the Window Sealing Plate Assembly into place.
The Exhaust Pipe cannot be distorted nor subject to substantial turning
angle (greater than 45 °). Keep the ventilation of the Exhaust Pipe unlocked.
(Fig.5 & Fig.6).
Fig. 5 Fig. 6
Note:
The length of the Exhaust Pipe shall be between 280 ~ 1500 mm, and this
length is based on the specifications of the air conditioner DO NOT use
extension tubes or replace it with other different hoses, or this may cause a
malfunction. Exhaust Pipe must be unblocked; otherwise it may cause
overheating.
