INSTALLATION GUIDE s
Warning: before using the portable air conditioner, keep it upright for at least
2 hours. When moving the appliance, ensure that it is kept upright on a
horizontal and dry surface.

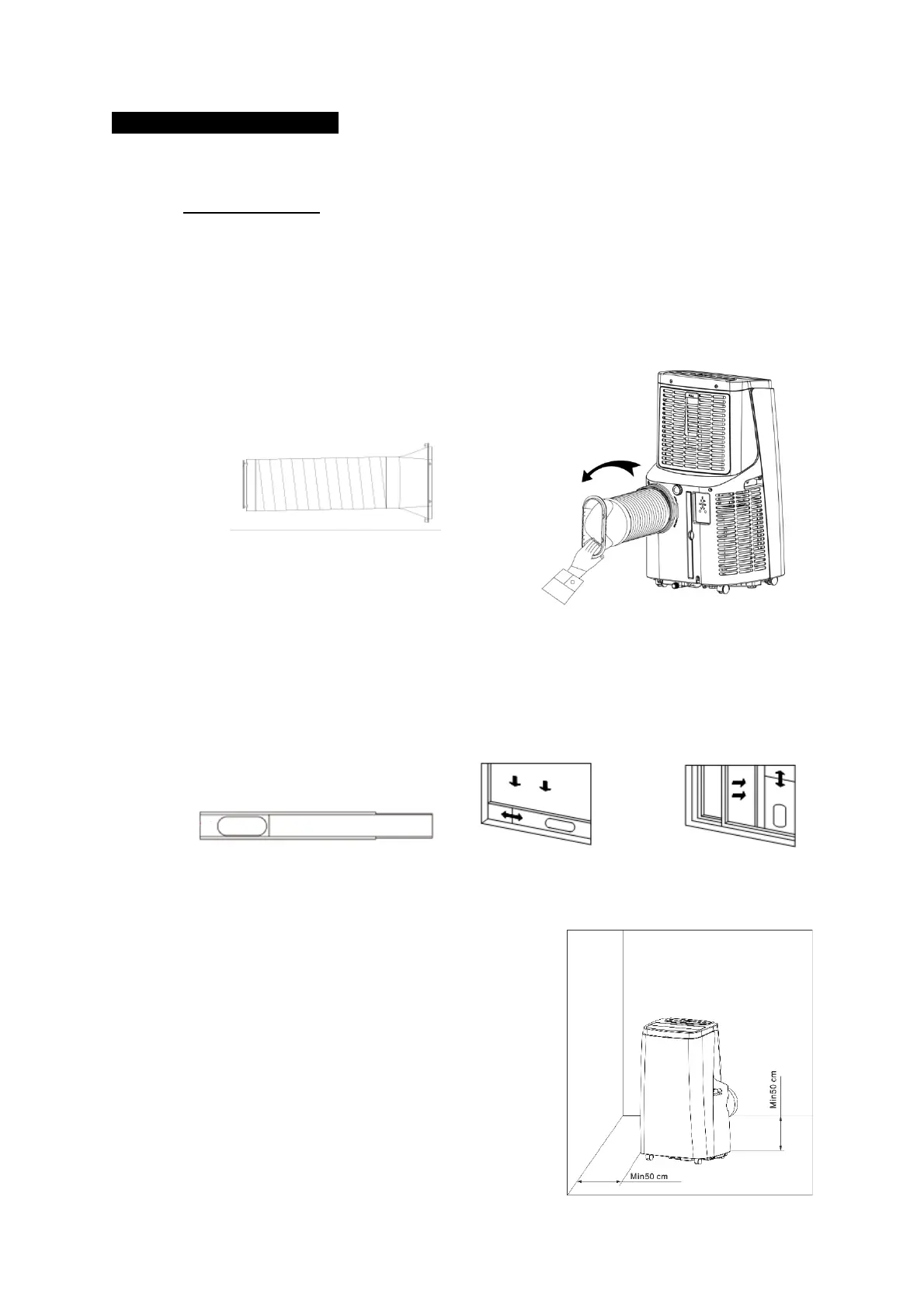

Screw the Exhaust Pipe Assembly (exhaust fitting end) into the exhaust port
on the rear panel (Fig. 1).
Exhaust Pipe Assembly Fig. 1
Half open the window, and mount the Window Sealing Plate Assembly to
the window in either horizontal (Fig. 2) or vertical (Fig. 3) directions.
To do so, you may have pull various components of the Window Sealing
Plate Assembly open to adjust their opening distance to bring both ends of
the assembly into contact with the window frame
Window Sealing Plate Assembly Fig. 2 Fig. 3
Place the Main Body with installed Exhaust
Pipe Assembly and fittings before the
window, and the distance between the body
and walls or other objects shall be least 50
cm (Fig.4).
Fig. 4
