7
WATER
SUPPLY
STOP
COCK
REDUCER
MACHINE
WATER
INLET
1/2
3/4

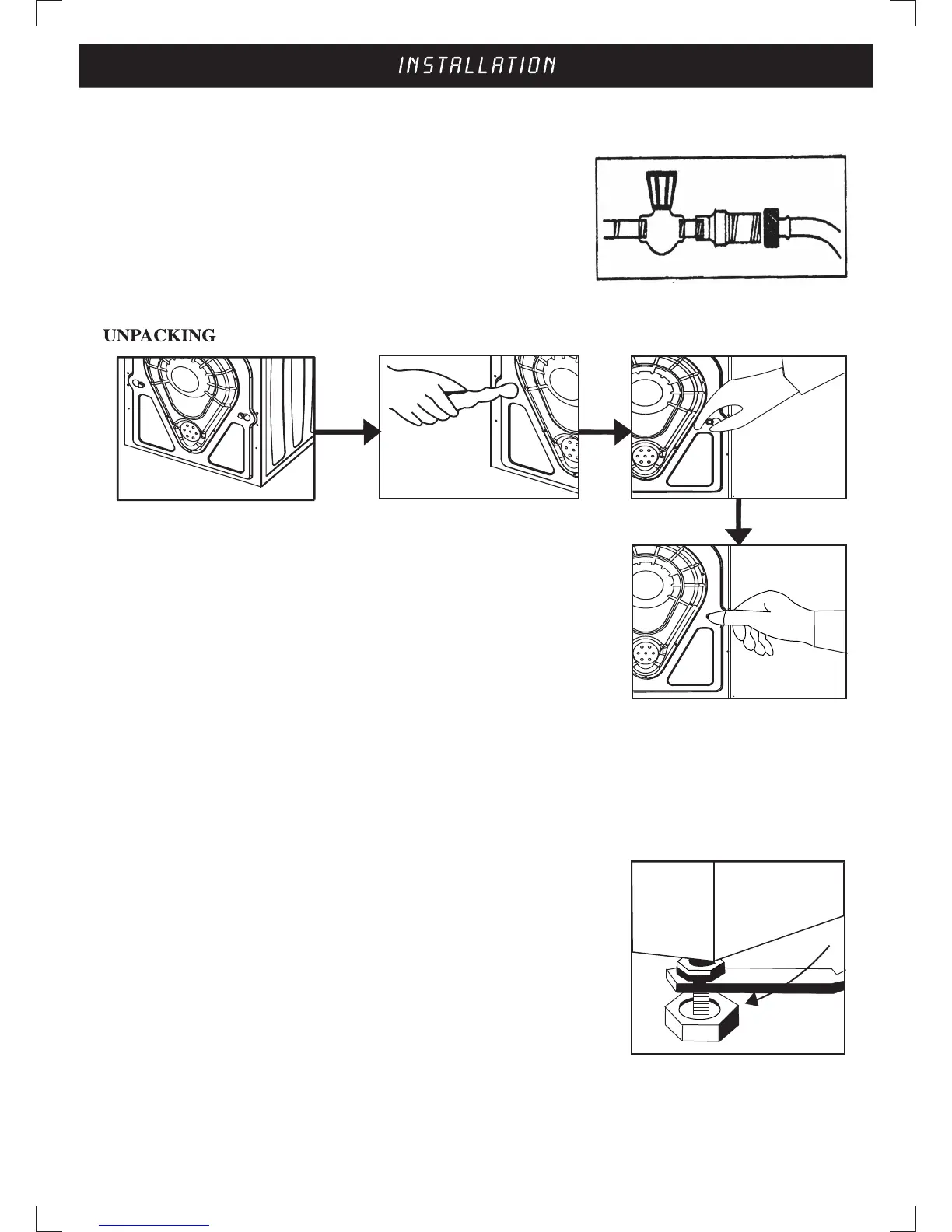

1. Remove Carton.
2. Remove top packing cover.
3. Remove side packing and plastic jacket.
4. Remove packing from the bottom of the motor
5. Place the machine at the site at which it is to be
Installed, and put the rat mesh.
6. Remove transit bolts.
7. Insert plastic caps provided into holes vacated and press till they click into
place.
8. Keep transit bolts carefully. They will be required in case you need to shift
the machine again.
9. For shifting and re-installation at a new site, please get in touch with our
service personnel.
10. Keep packaging material carefully. It comes handy while shifting
residence.
11. PLEASE DO NOT OPERATE THE MACHINE TILL TRANSIT BOLTS
HAVE BEEN REMOVED.
SETTING UP
The machine should be levelled properly on the floor. However, it can be
installed on any suitable platform or trolley, as desired.
Install machine in a room with adequate ventilation. Avoid a room with no
windows. The back of the machine should be at least 4 inches (100 mm) away
from the wall.
1. Do not place the machine on slanting, uneven, unstable surface.
2. Level the machine by using the adjustable screws provided at the bottom
for levelling.
3. Loosen securing nut. Adjust the screw to change level. Tighten securing
nut to ensure that screw is locked into place.
4. Make sure that the machine rests on all four feet on a level surface, at all
times, to avoid vibrations during operation
5. Machine should be leveled again in case it is moved to a new site.
6. Machine is provided with ventilating openings on the base. Hence it is
always recommended to put the machine on the floor after removing the
carpet.
7. In countries where there are areas which may be subjected to infestation
by cockroaches or other insects etc, pay attention to keep the appliance &
surrounding in clean condition at at all times any damage which be caused
by cockroaches etc will not be covered by the appliance guratantee.
PRE - INSTALLATION
C
point with a 16 amp. MCB or Automatic short circuit protection
device within 1 meter of the machine. Make sure it has proper
earthing.
C
machine has a collar with 3/4” parallel internal threads. The water supply
point with an external thread3/4” parallel thread should be available
within 1 meter of the machine location. Please refer the figures (page. no.
8) under the topics WATER INLET and WATER OUTLET.
CPlease contact our service centre for installation and demonstration of the
machine after the mentioned points have been completed.
It is mandatory to have a 16 amp. 3-pin 230V AC, 50Hz electrical
Fixed plumbing is recommended for the machine. The water inlet of the
