WATER INLET
DRAIN
PIPE
X
WATER INLET
DRAIN
PIPE
8
l

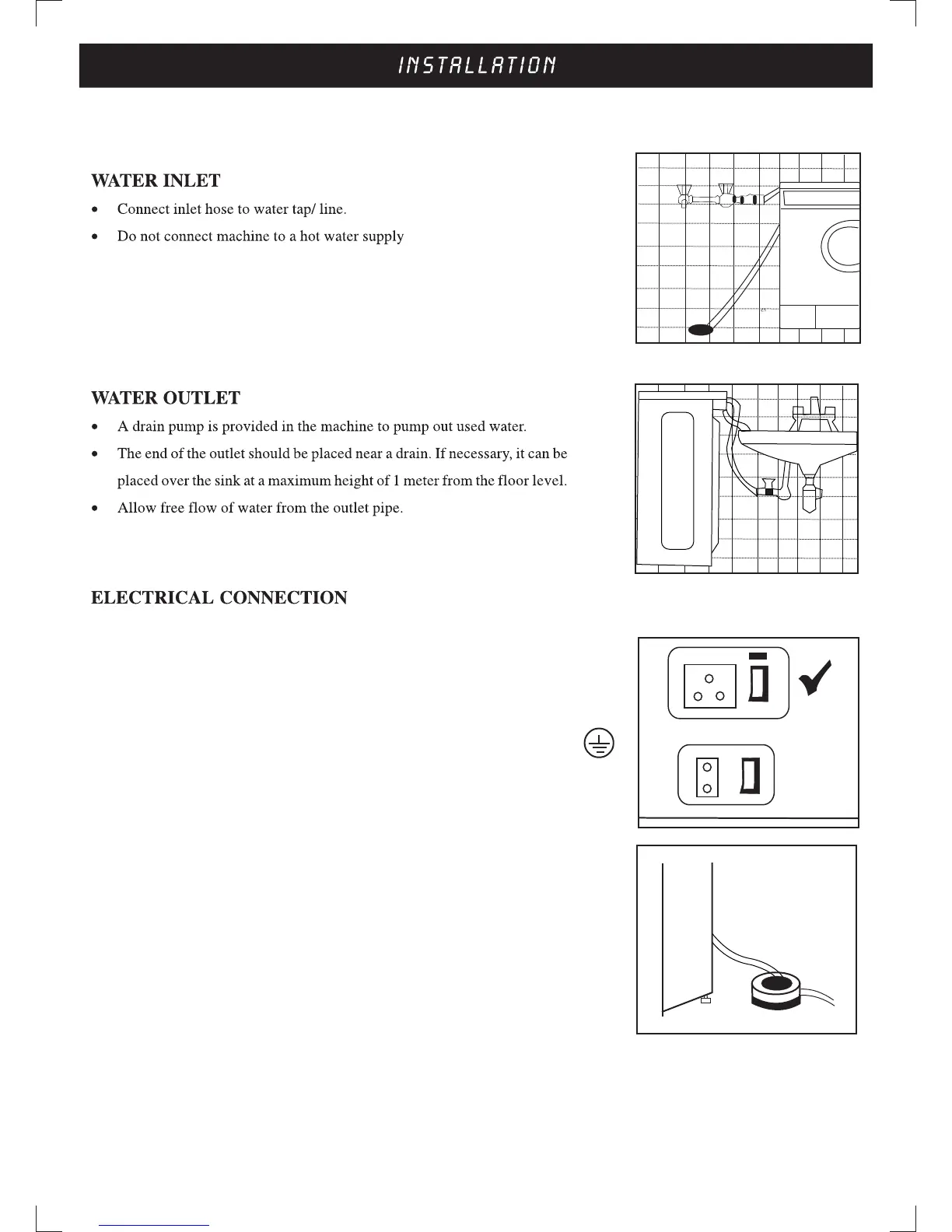

lConnect to a 230V, 50Hz single phase AC supply. The appliance must
be positioned so that the plug is accessible.
lMachine must be earthed properly before operation. This can be done
by using a 3 - pin plug and a properly earthed operated socket of 16
Ampere rating.
lIf the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard. It should not be stretched when connected to
the main circuit.
lUse of extension cord not recommended since it may not be properly
earthed.
lUse ISI marked sockets of reputed make for preventing loose contact
of power supply cable.
lEnsure that there is a firm connection between the 3 PIN PLUG and
SOCKET, else it may result in sparking and subsequent failure of 3
pin plug.
lEnsure that L,N,E is as per the Fig. Shown
lWashing machine should always be connected to socket with 16 Amps
MCB or other automatic short circuit protection devices.
CAUTION :- The producer/Manufacturer declines any responsibility for
damage caused by failure to observe this rule. You are therefore advised to
check that your household supply has an efficient earth.
Check that the electrical line can take the required load.
16 AMPS
X
N L
E
