5 Electrical connection
• The unit must be connected by a qualified electrician�
• The national and international regulations for the installation of electrical
equipment must be adhered to�
• Caution: For the output circuit the same protective measures as
• for the supply circuit must be taken�
• InsertaminiaturefuseaccordingtoIEC60127-2Sheet1(≤5Afast
acting)�
• The permissible potential difference between supply and output circuit is
max� 300 V�
• The equalisation of potential of metal housing parts must be ensured via
the connection flange� Ensure an electrically conductive connection�
• Due to the integrated EMC filters, leakage currents of typ� < 0�5 mA can
flow via the potential equalisation to the earth potential�
• If several units are used in parallel, take into account that the leakage
currents add�
• The applicable standards must be adhered to�
► Disconnect power�
► Connect the unit as follows:

















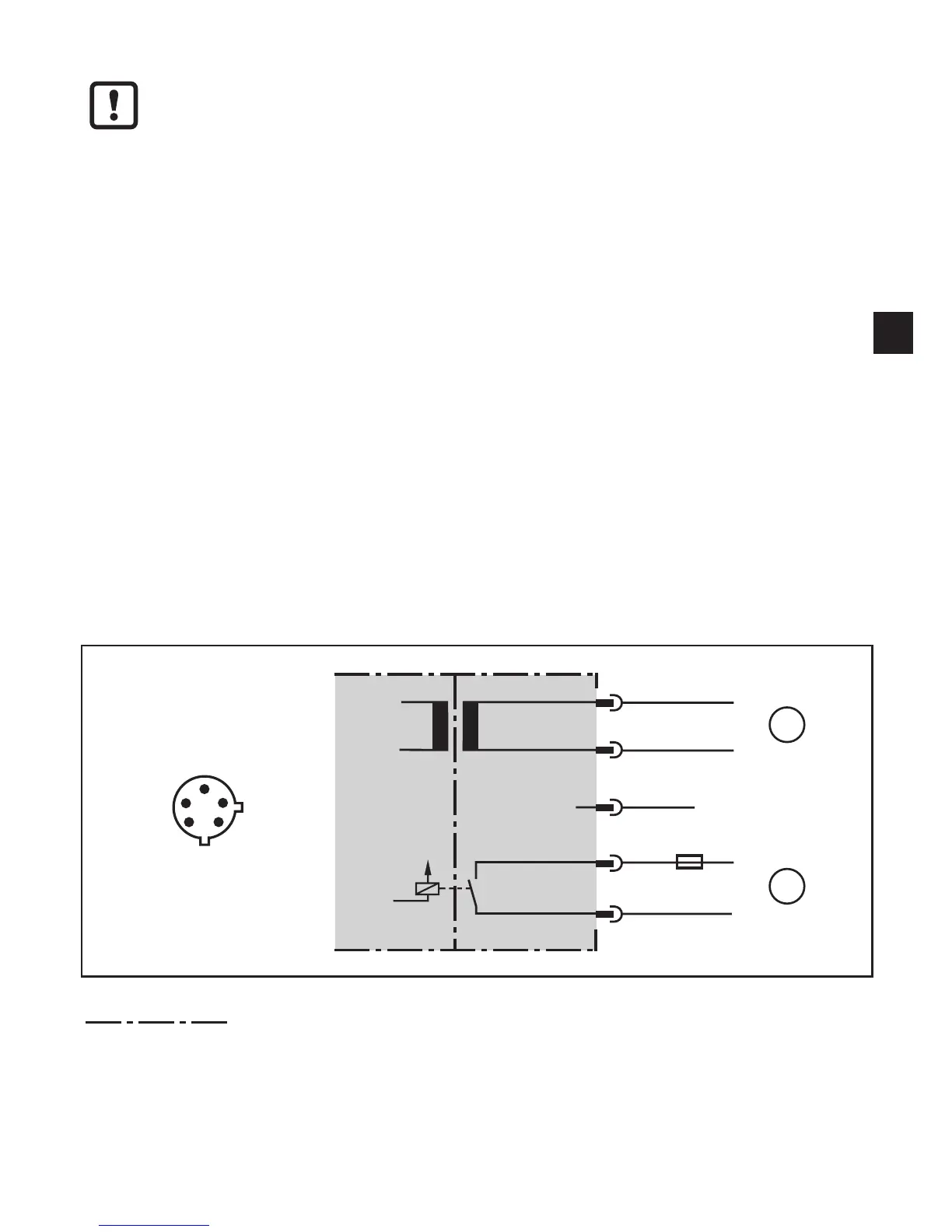

A: supply circuit; B: output circuit
:
safe separation
ifm-sockets are available as accessories:
Order no� E11248, E11249, E11250, E11251
Core colours of ifm sockets:
1 = BN (brown), 2 = BU (blue), 4 = BK (black), 5 = WH (white)
