9
UK

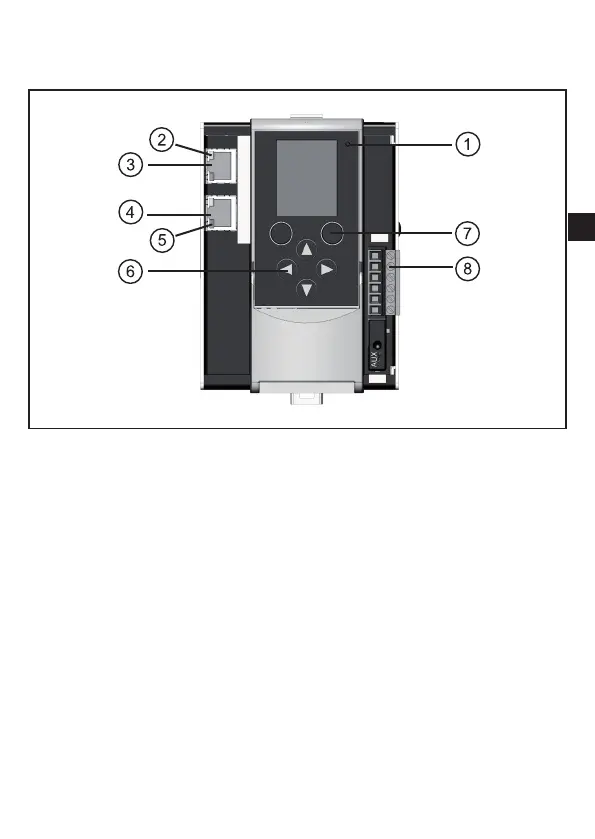

6 Operating and display elements
6.1 Operating elements
1: LEDs H1
2: LEDs H2 / H4
3: Pronet interface 2 (RJ 45)
4: Pronet interface 1 (RJ 45)
5: LEDs H3 / H5
6: Navigation buttons
7: Softkeys
8: Combicon connector
