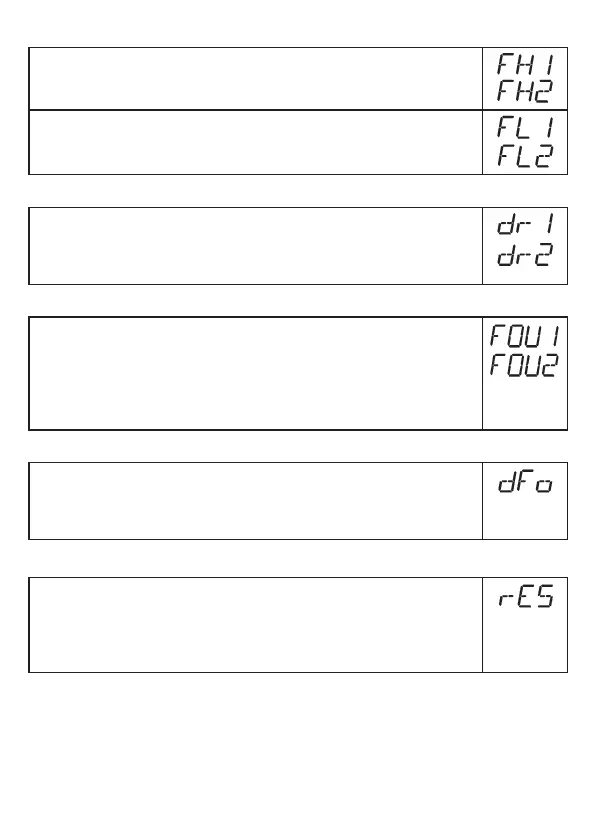

10.5.3 Set the switching limits (window function)
► Make sure that for [OU1] or [OU2] the function [Fno] or [Fnc] is set�
► Select [FH1] / [FH2] and set the upper limit of the acceptable range�
► Select [FL1] / [FL2] and set the lower limit of the acceptable range�
FLx is always lower than FHx� The unit only accepts values which are lower
than the value for FHx�
10.5.4 Setting of the switch-off delay
► Select [dr1] / [dr2] and set the value between 0�2 and 60 s�
At 0�0 (= factory setting) the delay time is not active�
The switch-off delay is only active if hysteresis has been set as switching
function (OUx = Hno or Hnc)�
10.5.5 Response of the outputs in case of a fault
► Select [FOU1] / [FOU2] and set the value:
[on] = output switches ON in case of a fault�
[OFF] = output switches OFF in case of a fault�
Factory setting: [FOU1] and [FOU2] = [OFF]�
Faults: Faulty hardware, too low a signal quality, untypical
level curve� Overflow is not considered to be a fault�
10.5.6 Setting of the delay time after signal loss
► Select [dFo] and set a value between 0�2 and 5�0 s�
At 0�0 (= factory setting) the delay time is not active�
Mind the dynamics of your application� In case of fast level changes it is
recommended to adapt the value step by step�
10.6 Reset all parameters to factory setting
► Select [rES], then press [Set] and keep it pressed until [----] is displayed�
► Briefly press [Mode/Enter]�
> The unit reboots and the factory settings are restored�
Note: On delivery the unit is not operational� First, the basic settings must
be entered (→ 10.2)�
