14 Applications

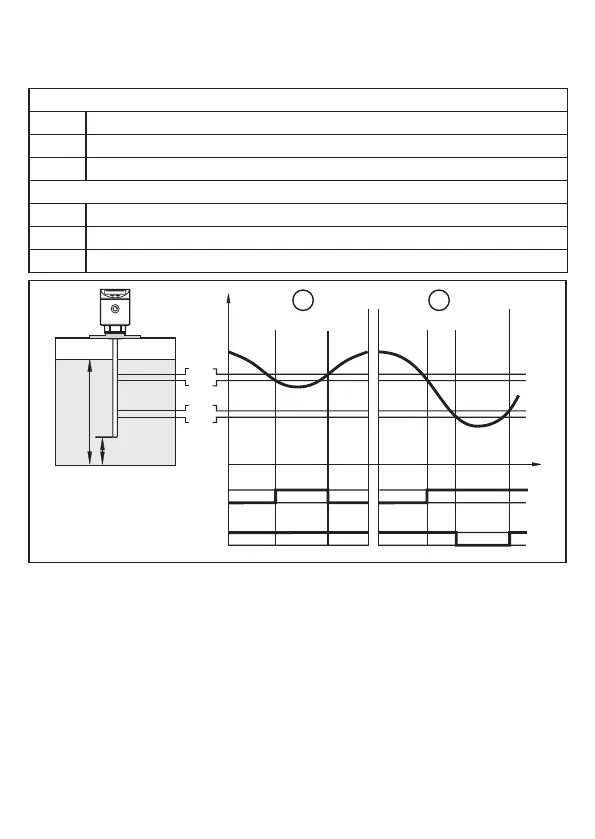

14.1 Minimum level monitoring with early warning and alarm
Switching output 1: early warning
SP1 slightly above rP1 (to suppress wave movements)
rP1 below preset level → early warning, start refilling
OU1 hysteresis function, normally closed (Hnc)
Switching output 2: Alarm
SP2 min. value reached again → alarm reset
rP2 below min. value → alarm
OU2 Hysteresis function, normally open (Hno)
XX�X = display value
A = early warning
B = alarm
• If the level is below rP1, output 1 switches until liquid is refilled� If SP1 is
reached again, output 1 switches off�
• If the level is above SP2, output 2 switches� If the level falls below rPs or if
there is a wire break, output 2 switches off�
• By setting SP1 the maximum level can be controlled / monitored: the value of
SP1 determines up to which level (max�) is to be refilled� When the maximum
level is reached, this is signalled by the LED OUT1 going out and output 1
switching off�
