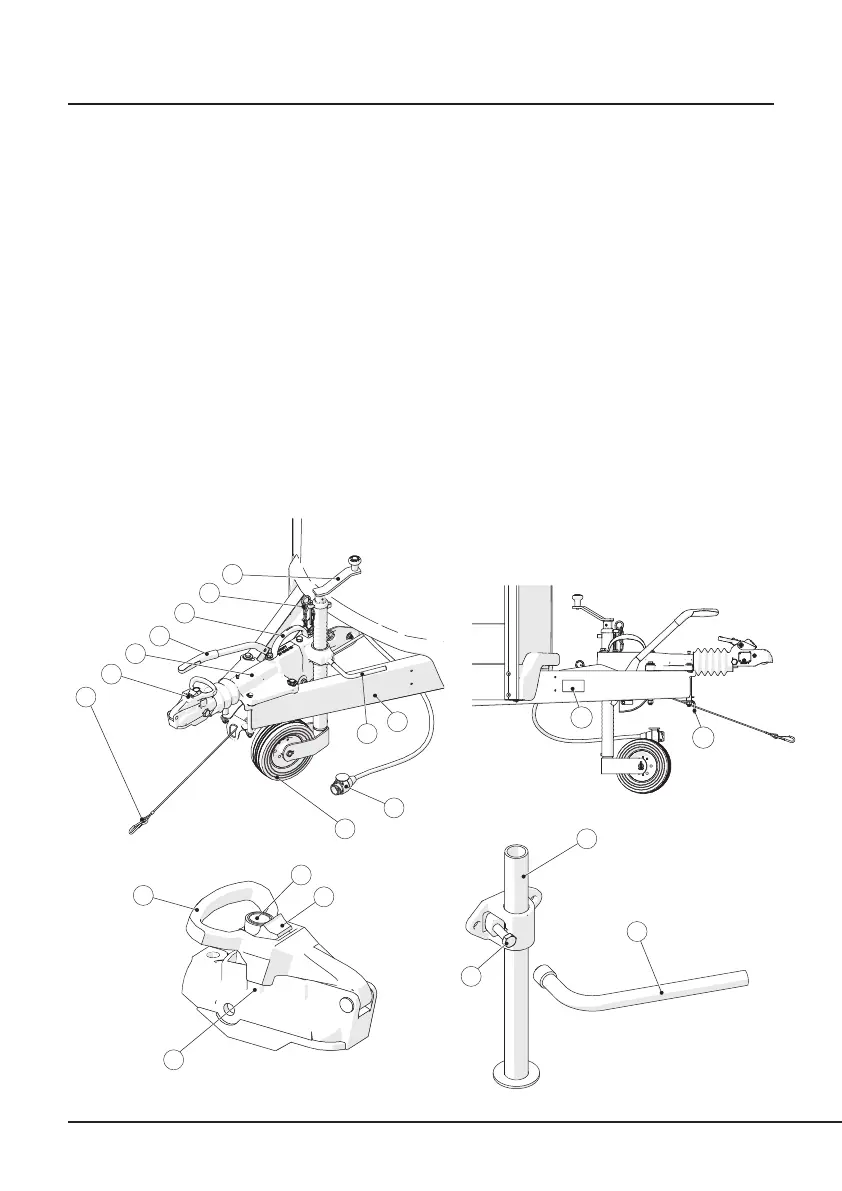

Coupling Drawbar & Jockey Wheel:
1. Drawbar
2. Overrun unit (Coupling body)
3. Coupling head
4. Handbrake lever
5. Breakaway cable & clip
6. Lighting cable & plug
7. Jockey wheel operating handle
8. Jockey wheel ‘R’ clip
9. Jockey wheel clamp handle
10. Jockey wheel
11. Breakaway cable guide
12. Manoeuvring handle
13. Manufacturers type plate
14. Release button
15. Operating handle
16. Lock & cover
17. Wear indicator tab
18. Prop-stand tube
19. Prop-stand clamp bolt
20. Wheel brace / prop-stand tool
17
15
16
14
STANDARD PROPSTAND
18
20
19
COUPLING HEAD
13
11
1
6
9
10
2
7
3
8
4
5
12
2 TOWING
2.1 UNDERSTANDING YOUR TRAILER
