24
5 STALLS
The HBE uses a single longitudinal partition
mounted on two “legs”. It is fixed into place
with the breast bars. The partition can be
easily moved and removed with the help of
an assistant.
NOTE. It is illegal to carry two or more
horses in an un-partitioned trailer.

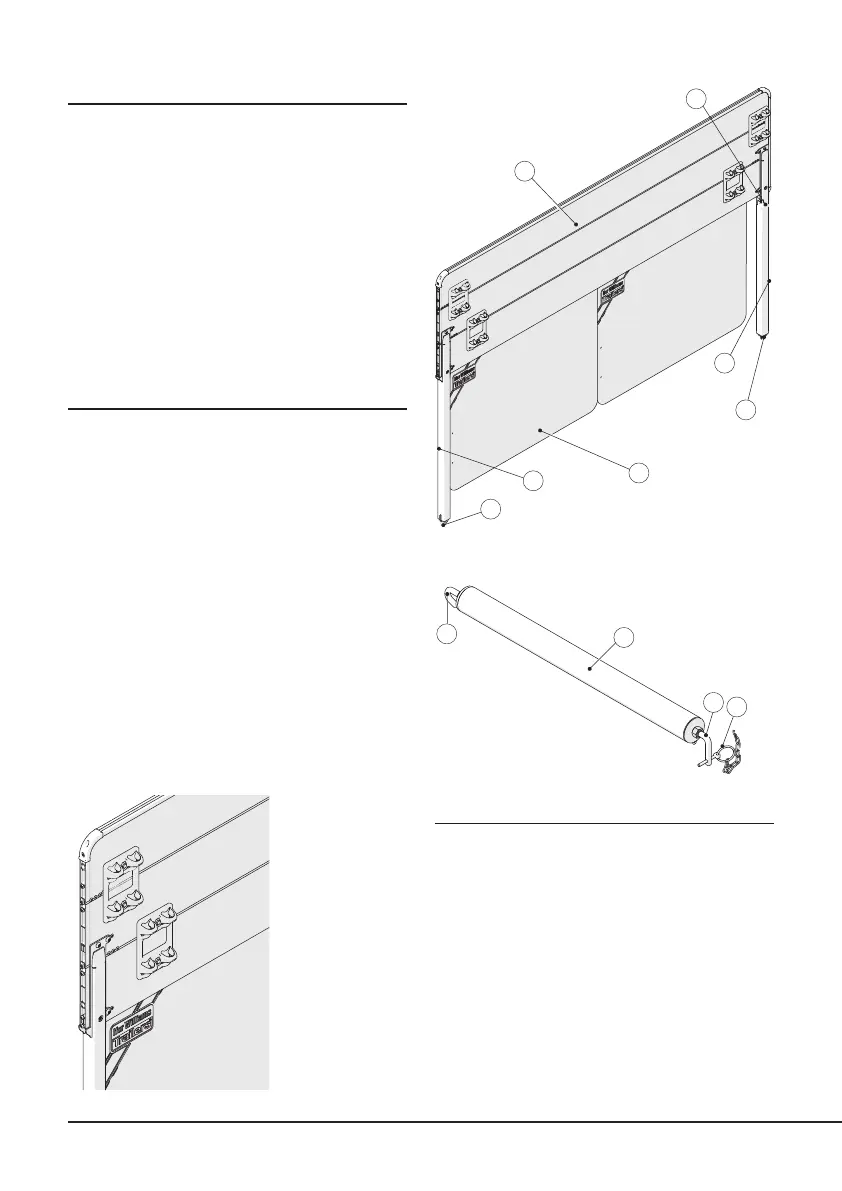

5.1 UNDERSTANDING
YOUR STALLS
1. Partition leaf.
2. Partition skirts.
3. Front “leg”.
4. Rear “leg”.
5. Rear “leg” locking knob.
6. Rear “leg” keyed fitting.
7. Front “leg” keyed fitting.
8. Breast/Breeching bar.
9. Hook end fitting.
10. Pin end fitting.
11. Linch pin & chain.
BREECHING/BREAST BAR
BREAST BAR
BRACKETS
5.2 OPERATION
5.2.1 INSTALLING THE PARTITION
1. With the aid of an assistant, lift the partition
into position above the front keyed slot.
2. Ensure the angle of the front leg “key”
lines up with the keyed slot in the floor and
lower the leg into the slot.
3. Rotate the partition so that the rear leg is
above the slot in the floor, ensuring that
the “key” at the bottom of the leg aligns
with the slot in the floor.
1
6
2
7
3
4
5
8
9
10
11
