IGD TOCSIN 750 Series - Relay Test Function Operation

33
Relay Test Function

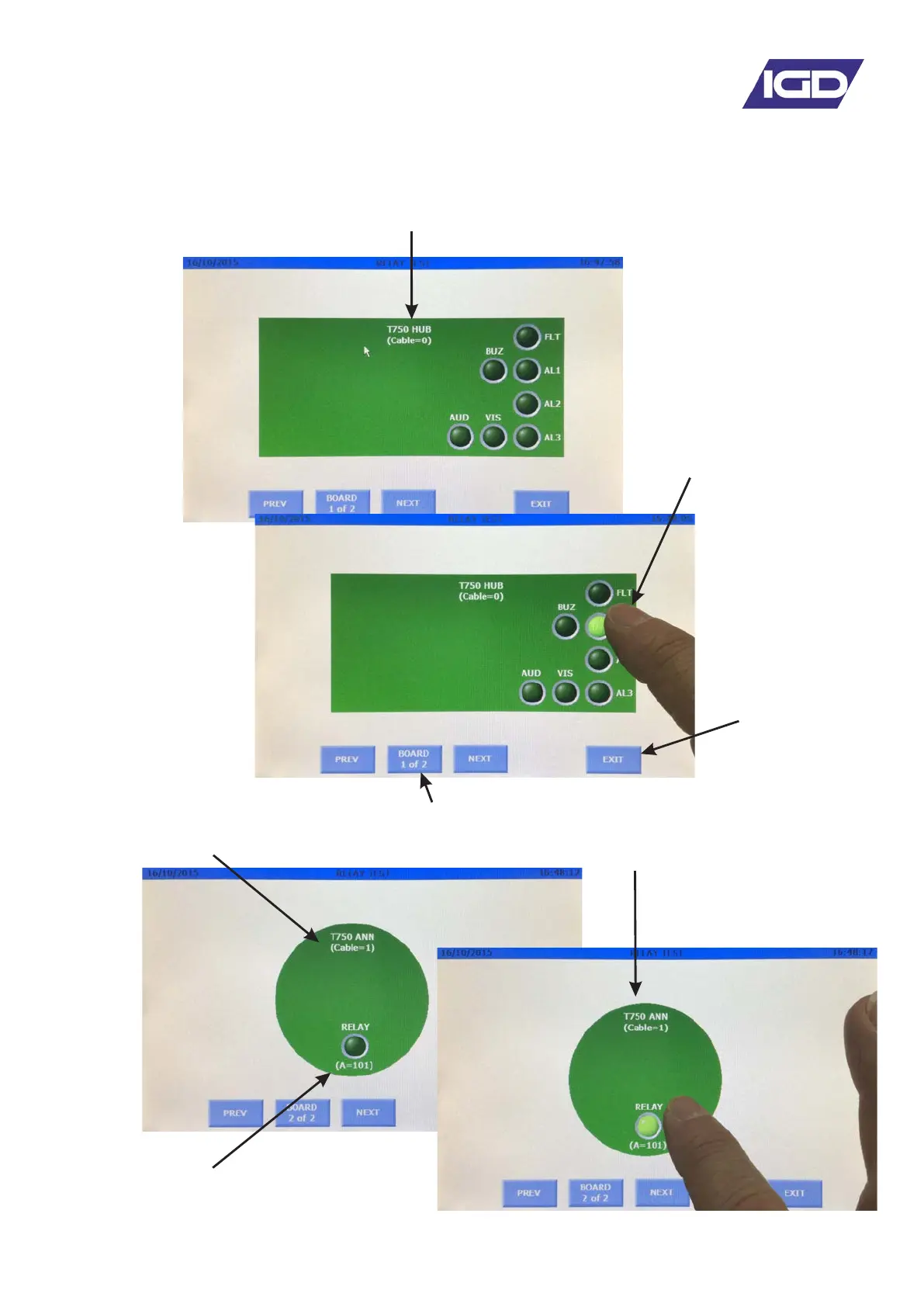

The Tocsin750 has the option to run a relay test function. Select the option and the following
screen is displayed.
Note the outputs on the hub card are always indicated first
Select the relay to test to
see it change its state
Use the NEXT and PREV buttons to select the desired relay
board.
There are also screen displays for individual ‘module’ outputs.
Use EXIT to
return to the
main menu and
release all
selected relays
back to normal
operation.
Aelay Address
Cable Highway
