IGD TOCSIN 750 Series - GSM Module Functions Overview

51
GSM Module Functions
GSM functions are available via the system options menu. Note this feature requires a GSM
module to be fitted to the controller with a data only or M2M SIM card. The SIM card must be valid
for the chosen service provider. The GSM module is a factory fit module. Note that the GSM
module utilises the RS485 modbus port.

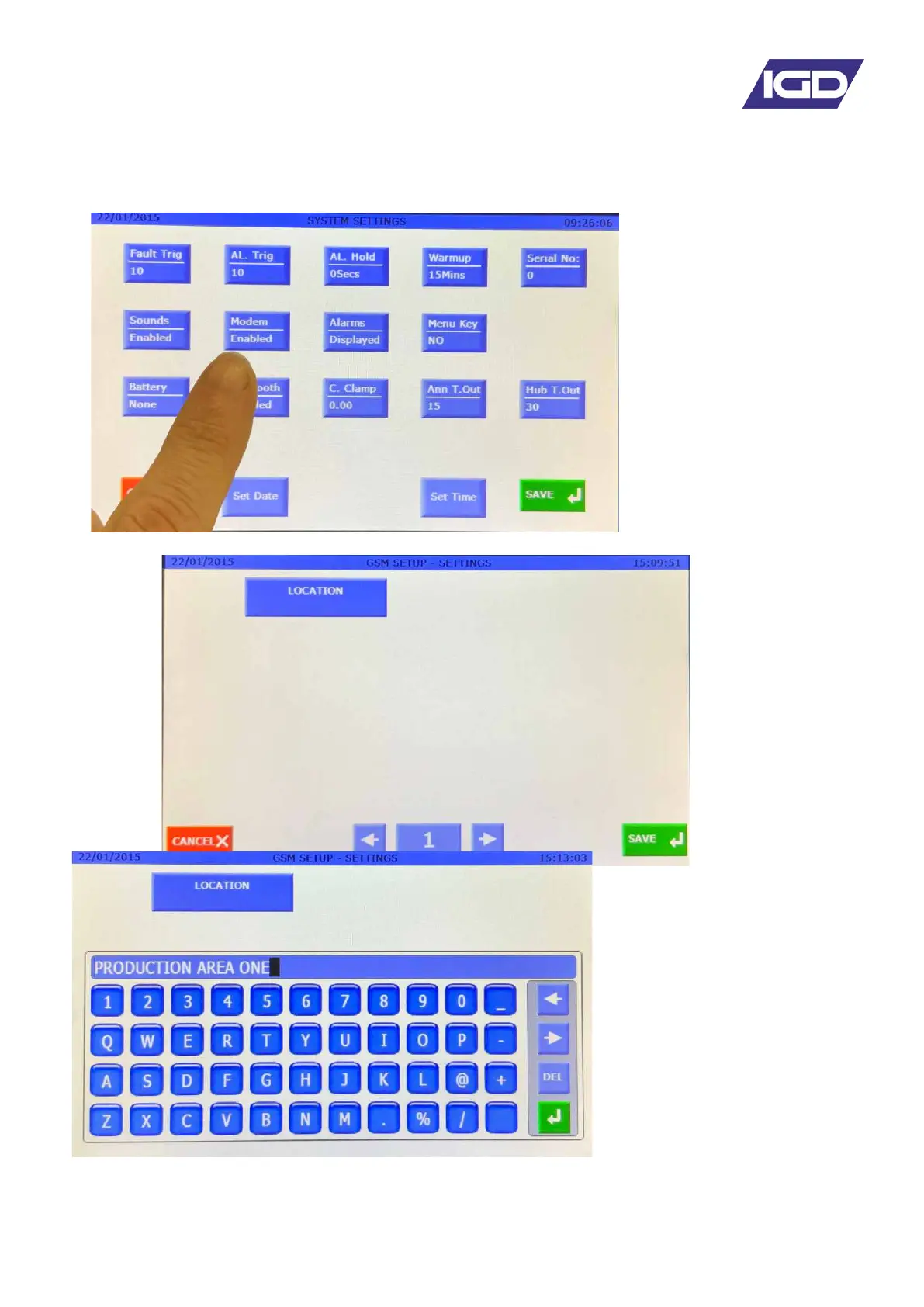

Enable the Modem option
Select the Modem
Setup Option.
Screen 1 allows a
location for the site
or controller to be
entered. This tag
line/name will be
transmitted along
with any
alarms/reports.
