58
TOC-750R-IO
International Gas Detectors
POWER

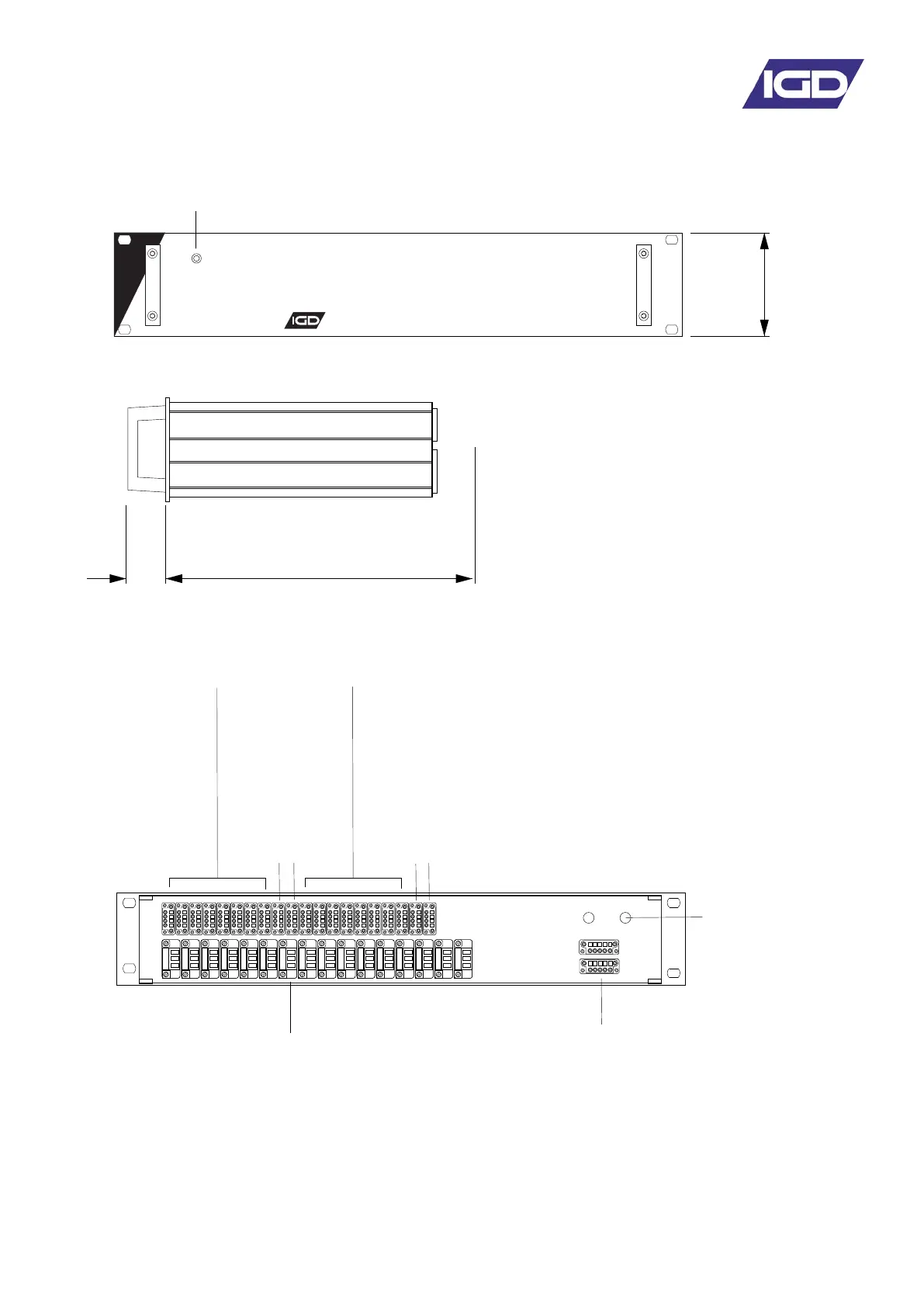

Tocsin 750R Input - Output Rack
2U (88.9mm)
RELAY
1 ... 16
IO 1 ...20
HW
IN
HW
OUT
P IN P OUT
250mm Depth Over Connectors
40mm
Alarm relay outputs SPCO
Highway Connections in/out
Digital Input Port 9
Digital Input Port 20
Digital Input Port 10
Digital Input Port 19
I/O Ports Channels 2 thro’ 10 & 13 thro’ 20
Analogue 4-20mA input 0-100%LEL by default. Note these
ports are configurable using Android tablet service tool
Not used
Power indicator
When mounting into rack systems ensure the enclosure is supported using rack trays/angles.
DO NOT MOUNT USING ONLY THE FRONT PANEL
