Igema SMLC2 - Assignment Plan

14

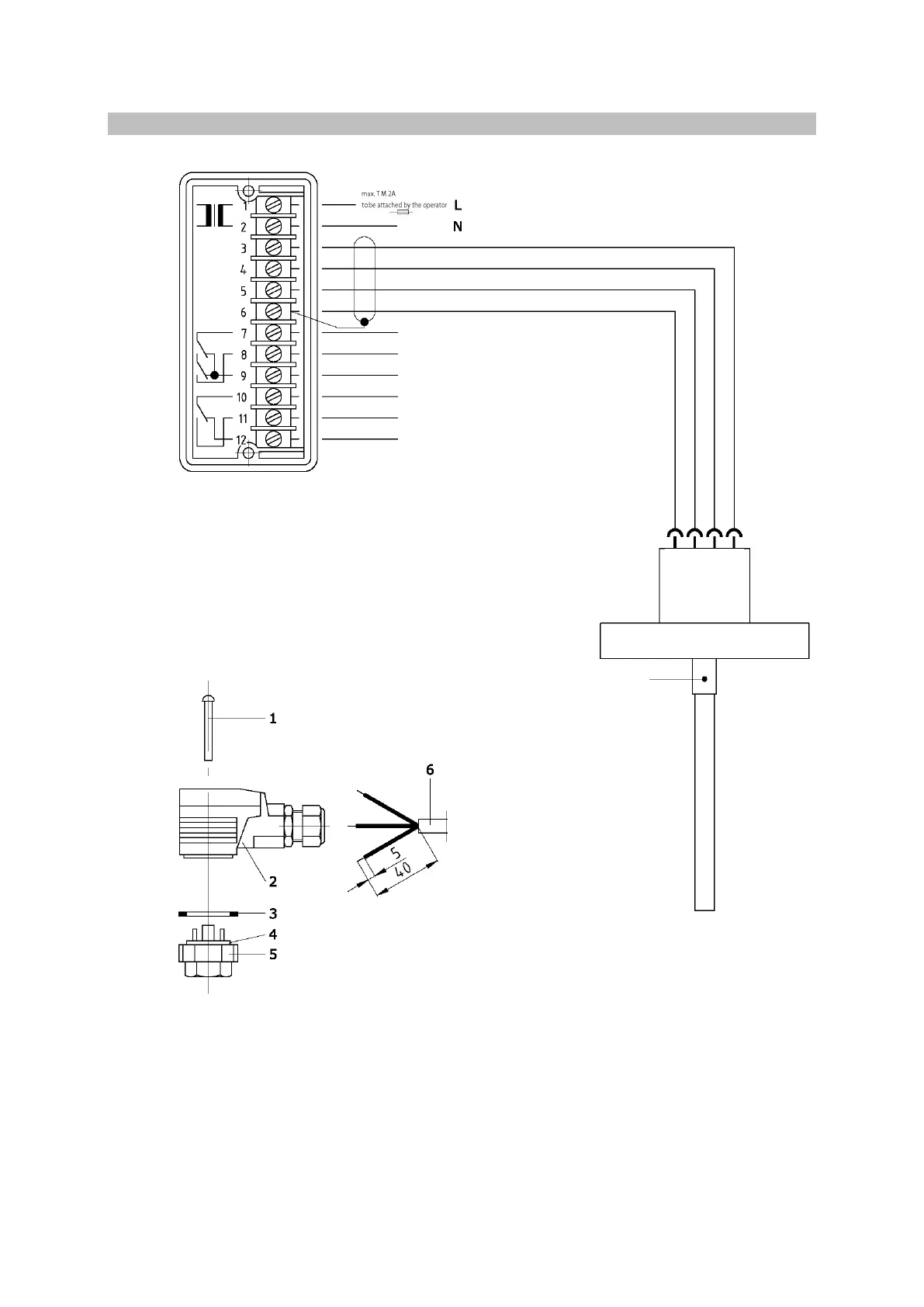

5.3.2 Assignment plan
In the normal operating condition (safety chain closed; burner ON) the output contacts 7 and
8 or 10 and 12 (pre-alarm OFF) are closed.
The configuration of the terminals is printed at the back of the housing.
(EL968 and MS015A/B: check separate Installation and Operating instructions)
SMHL2
Safety chain
Signalling
EL030 oder EL19-2
electrical connection:
shielded cable 4 x 0,75mm2
e.g. Helutherm 145 Multi-C; IGEMA Art.Nr. 40-55214
●
1 2 3
Mains voltage: see data plate
Lead connection at
probe plug
1 Screw
2 Probe plug
3 Seal
4 Contact carrier
5 Screw ring
6 Measuring cable
