3. PREPARING THE DEVICE FOR EXPLOITATION
3.1. Requirements concerning the place of installation
• Verify whether the cross-section of feeding conduits is proper for the power consumption of the installed device
• It is forbidden to connect the device by means of extension cords or dividers
• The device should be connected to the separate, properly made electric circuit with plug-in socket
with protecting pin (according to PBUE /Regulations concerning Electric Equipment Construction/)
The device may be actuated solely after confi rmation of the fi re protection effi ciency with results of measu-
res performed according to binding regulations!
3.2. Connection and actuation
• Unpack the device and remove the wooden platform from the basis Fig.2 (p.16)
• Place the display cabinet on an even basis, which is hard enough, and then level it with feet.
1 - Unscrew the feet from the platform
2 – Remove the wooden platform
3 – Screw the feet in nuts welded to the frame of the device
I. Screw the door grip Fig.3 (p.16)
II. Fix shelf grips in perforated frame strips Fig.4/1 (p.16)
III. Place net shelves on fi xed grips Fig 4/3 (p.16)
IV. Insert the tray Fig.5 (p.17) or condensate container Fig.6 (p.17) under water
outlet hose. Type of cabinets: “Ewa” and “Jola” on the aggregate do not have
enough space for condensate container, hence it is essential to place the tray
directly under the cabinet, placing it on the fl oor, from the back of the device. In
case of problems with inserting the tray under the cabinet, it should be lifted by
means of the levelling feet.
1 – Shelf fi xing grip
2 – Perforated frame strip
3 – Net shelf

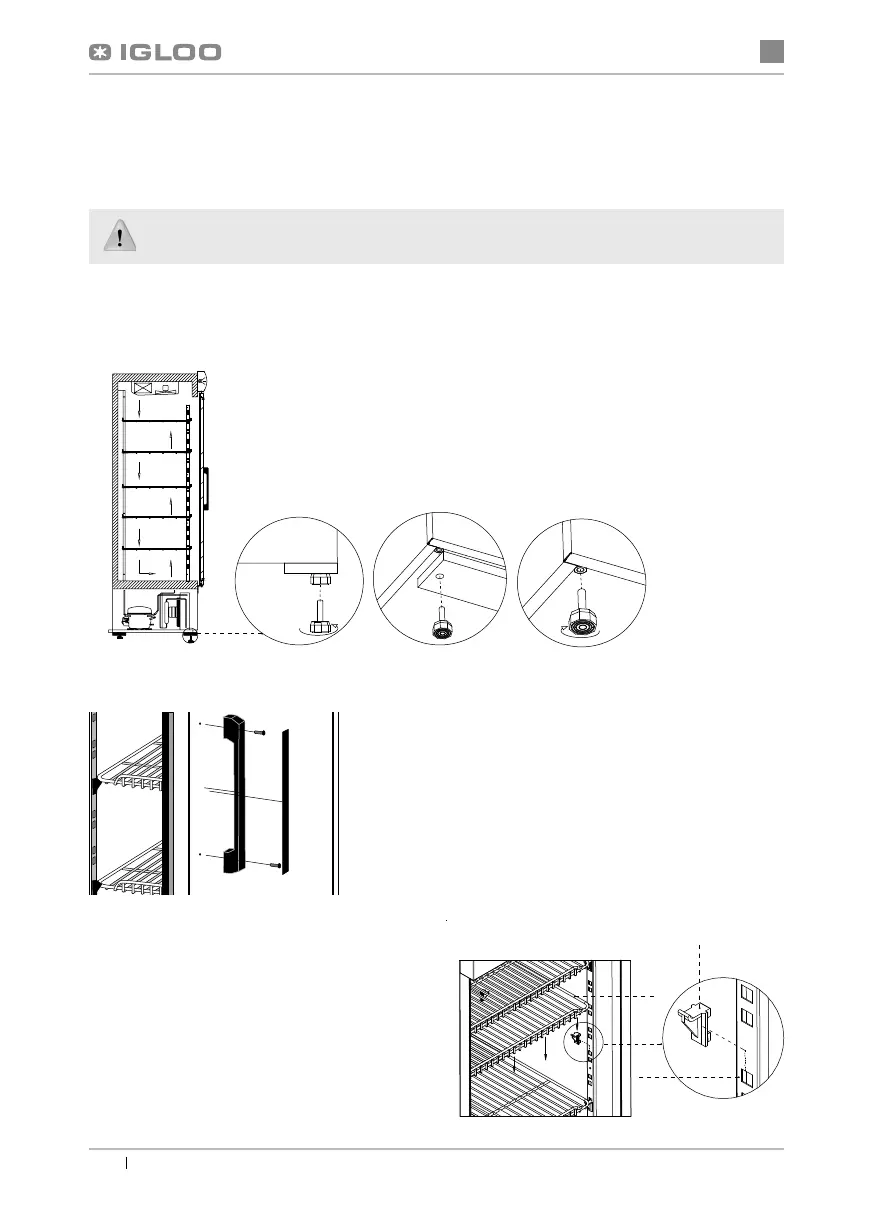

Fig. 2 Removing the wooden platform
Fig. 3 Fixing the door grip
Fig. 4 Mounting perforated shelves
• If the user shall obtain a device partially disassembled to secure it during transportation, perform the following
operations:
1
23
3
1
2
