2.3. Technical data
Table 2 Technical data
Type of the device
„Samos”
Rated voltage
[V/Hz]
Rated current
[A]
Rate lighting
power [W]
Electric energy
consumption
[kWh/24h]
Cooling
power
demand
[W/mb]
SAMOS 0.94 230/50 1,1 14,4 4,0 -
SAMOS 1.25 230/50 1,1 17,0 4,1 -
SAMOS 1.56
230/50
1,4
22,4
5,1
-
SAMOS 1.88
230/50
1,7
28,8
6,2
-
SAMOS 2.50
230/50
2,4
34,0
8,5
-
SAMOS 3.13 230/50 2,7 48,4 8,7 -
SAMOS 3.75 230/50 4,3 51 13,2 -
SAMOS NW90
230/50
1,4
8,5
4,8
-
SAMOS NZ90
230/50
1,2
7,2
3,9
-
SAMOS 0.94-mod/C 230/50 0,1 14,4 0,2 350
SAMOS 1.25-mod/C 230/50 0,1 17,0 0,2 350
SAMOS 1.56-mod/C
230/50
0,1
22,4
0,3
350
SAMOS 1.88-mod/C
230/50
0,1
28,8
0,4
350
SAMOS 2.50-mod/C 230/50 0,1 34,0 0,5 350
SAMOS 3.13-mod/C 230/50 0,2 48,4 0,7 350
SAMOS 3.75-mod/C
230/50
0,2
51
0,7
350
SAMOS NW90-mod/C
230/50
0,04
8,5
0,1
350
SAMOS NZ90-mod/C
230/50
0,03
7,2
0,1
350
SAMOS DEEP 0.94 230/50 1,4 14,4 4,5 -

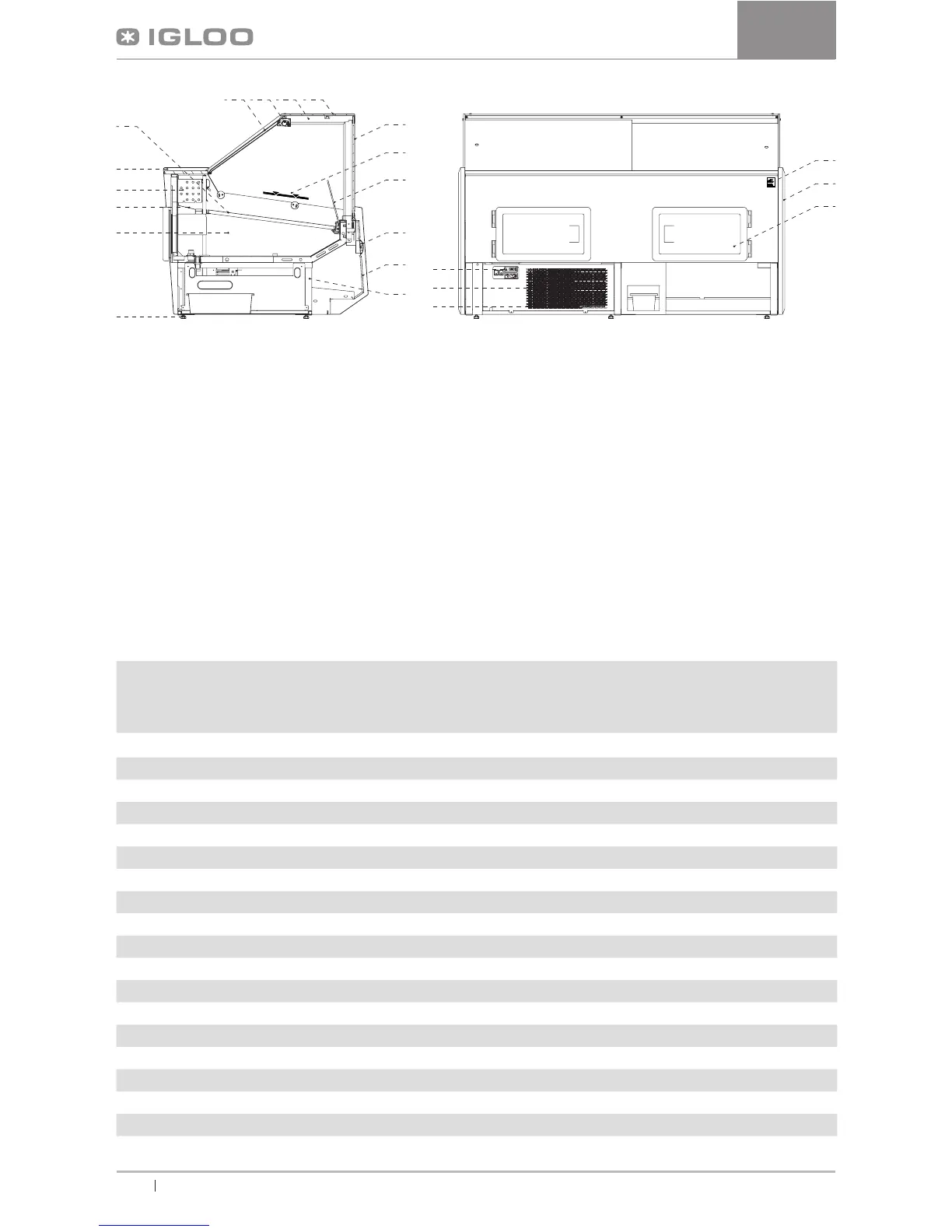

Fig.1 Construction of the device
12 – Maximum loading line (sticker on the glass side!)
13 – Front screen
14 – Front bumper
15 – Front
16 – Frame
17 – Nameplate
18 – ABS sides
19 – Storage chamber doors
20 – Condenser
21 – Ventilator (after removal access to condenser ns)
22 – Control panel (temperature regulator /switches)
1 – Feet used for leveling of the device
2 – Storage chamber
3 – Rail (condensate outow after defrosting
the evaporator)
4 – Evaporator
5 – Granite working top
6 – Display shelves (at; two-level; three-level)
7 – Plexiglas night shades
8 – Lamp
9 – Aluminum frame
10 – Top shelf
11 – Glass display shelf
4
3
1
22
20
21
2
5
6
7 8 9 10
11
12
13
17
18
19
14
15
16
