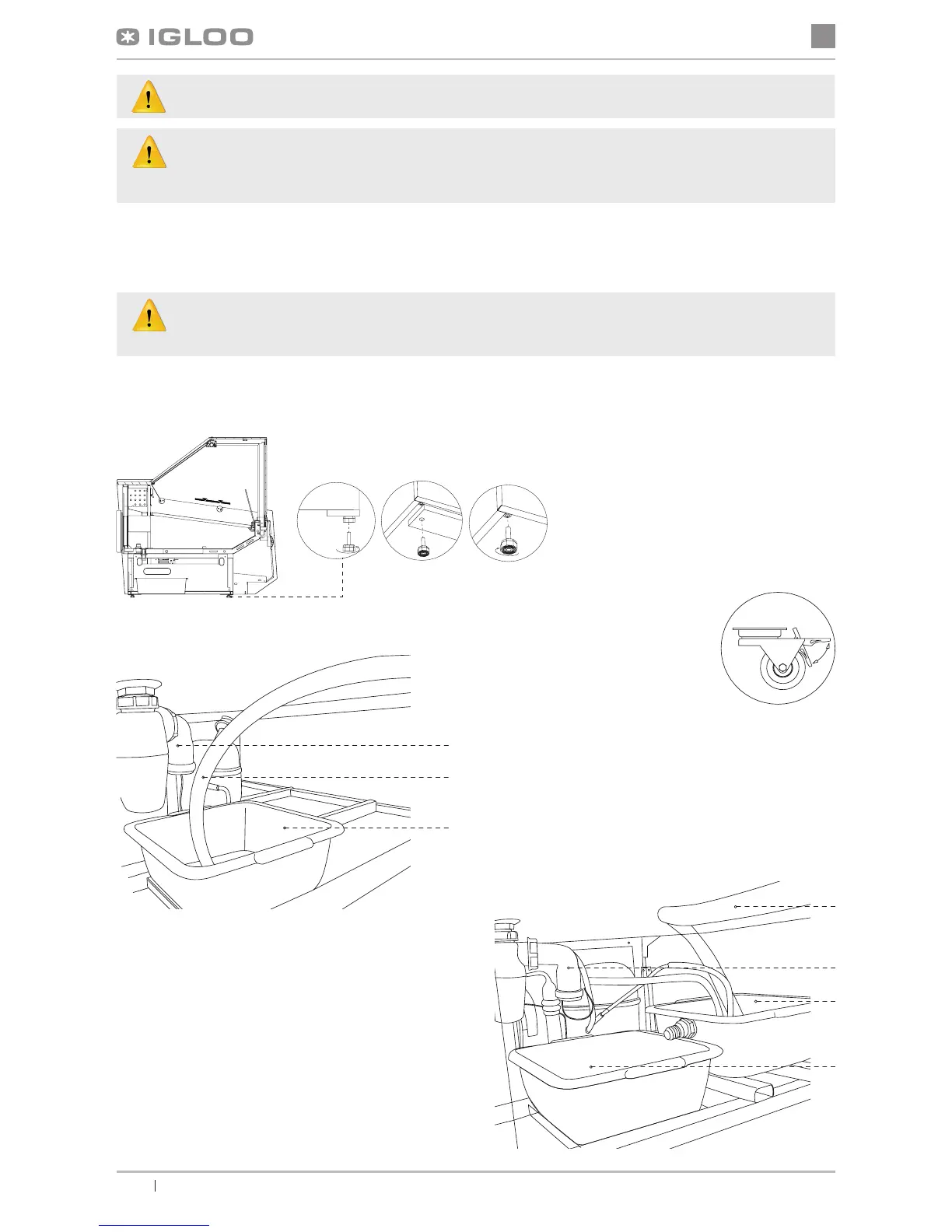

Fig.2 Removing the wooden platform
1 – Unscrew the feet from the platform
2 – Remove the wooden platform
3 – Screw the feet in nuts welded
to the frame of the device
Fig.3 Wheel system, moving system
A – moving position
B – blockade
A
B
1
2
3
1
3
2
4
Fig.4 Condensate container (version without evaporator)
1 – Water outlet from the body of the device (water-sealed)
2 – Rail water outlet hose
(condensate outow after defrosting the evaporator)
3 - Condensate container (empty the condensate!!!)
Fig.5 Overow (version with evaporator)
1 – Water outlet from the body of the device (water-sealed)
2 – Rail water outlet hose (condensate outow after defrosting
the evaporator)
3 – Overow (it is necessary to empty the condensate, when
water overows the evaporator container!)
4 - Evaporator
NOTE: If the thermostat display (for „Igloo” thermostat) Fig.6/3 (p.15) only shows two dots at the bottom
instead of the temperature, this means that no unit is attached (cooling function disabled). In this case,
switch the cooling on/off button on the thermostat panel - see Fig.11/1 (p.19)!
• Set the temperature on the thermostat panel Fig. 6/3 (p. 15) (details on p. 19 or 20)
• Turn the lighting switch on Fig. 6/2 (p. 15)
When cleaning the unit is prohibited to use water jet. The unit should be cleaned with a wet rag.
After installation of the device at the destination place it should be left to rest for at least 2 hours before
turning it on (for devices with built in compressor) to set the level of refrigerant in order to prevent prob-
lems with starting up the aggregate. WARNING: Keep out the cooling circuit from damage!
• Put the connector plug directly into the plug-in socket (it is forbidden to connect the device by extension
cables or splitters!)
• Turn the main switch on Fig. 6 (p. 15), which will activate the thermostat followed by activation of the refrig-
eration unit
